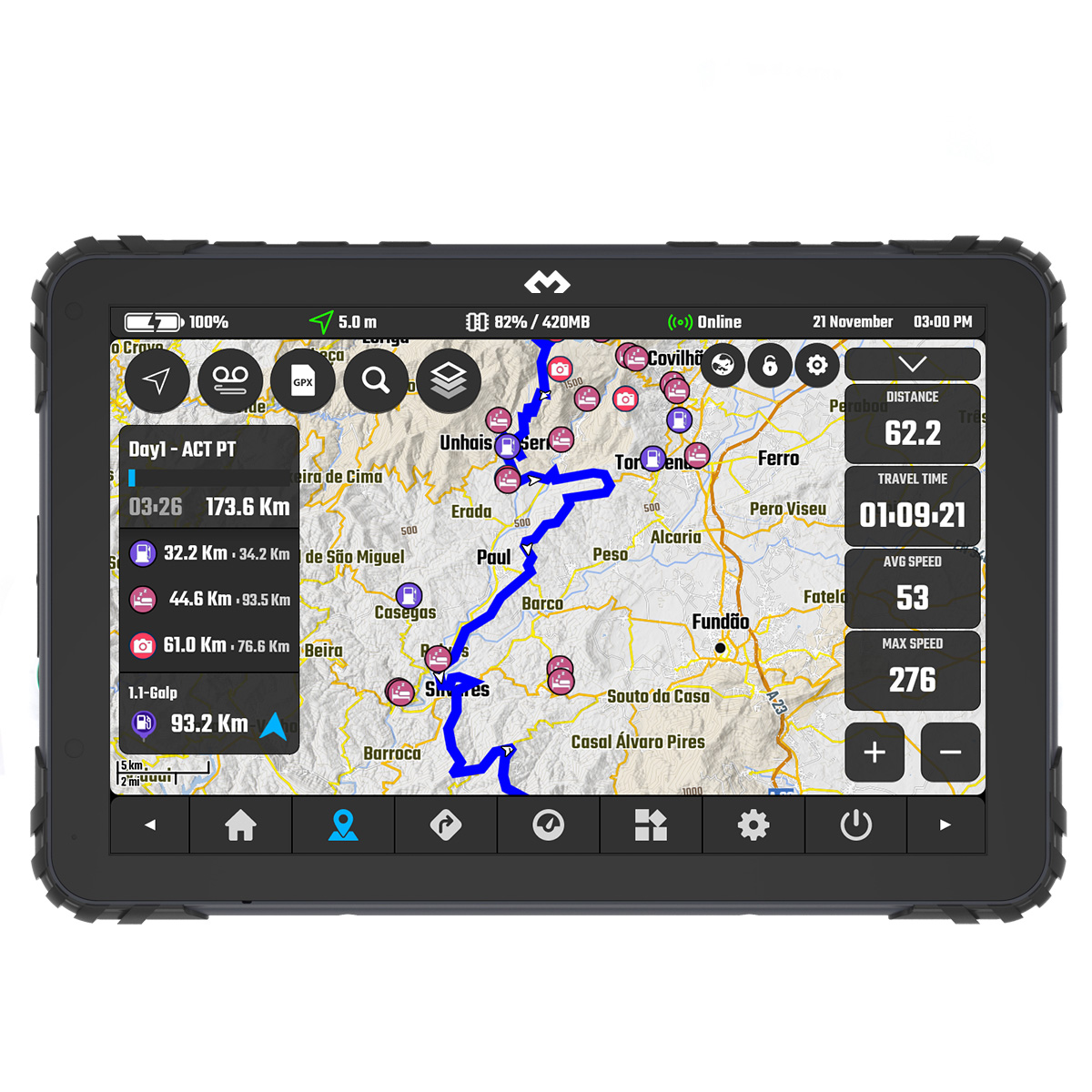

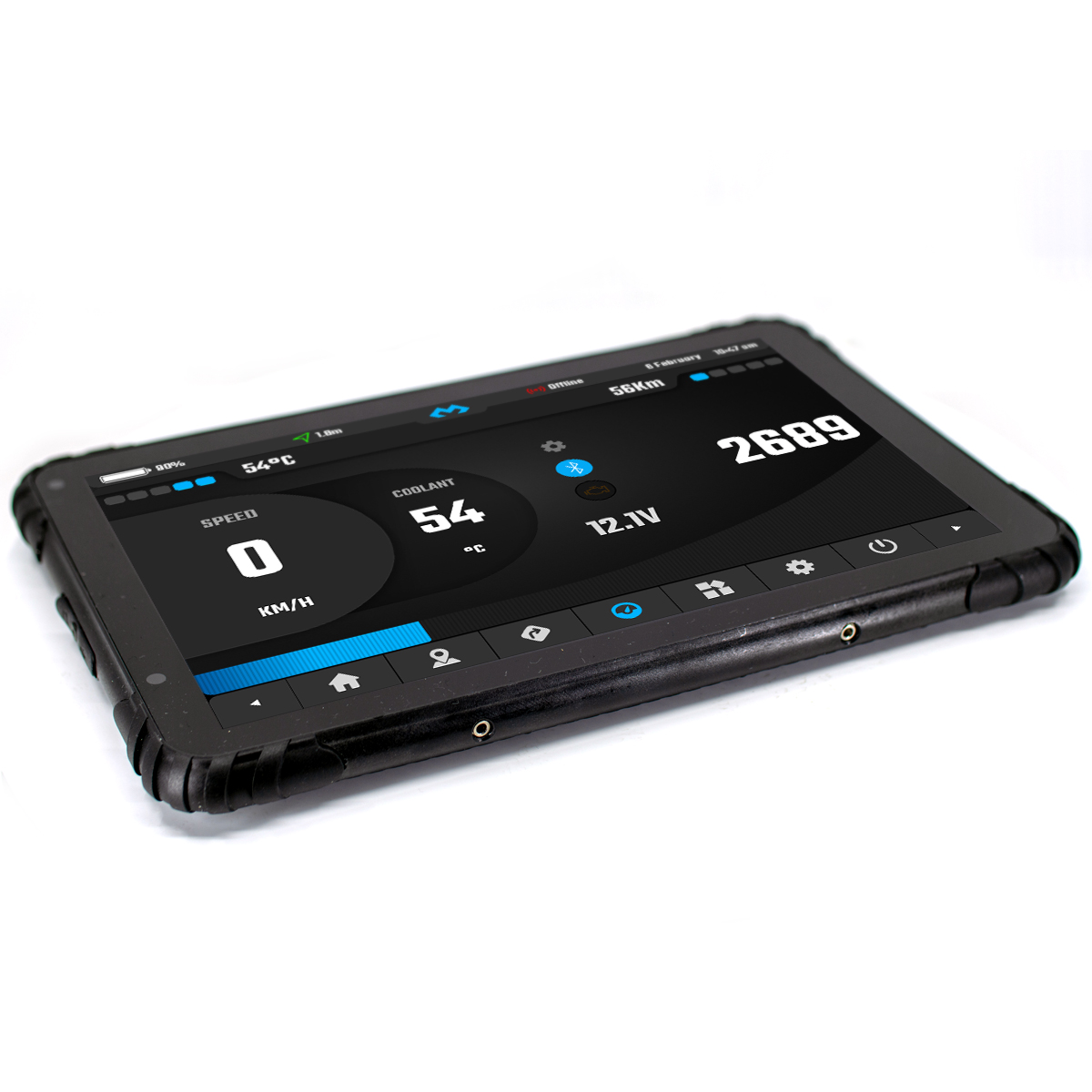

DMD-T865 Nav Tab

681,42 € or 554,00 € (without Tax) - Non-EU / Business

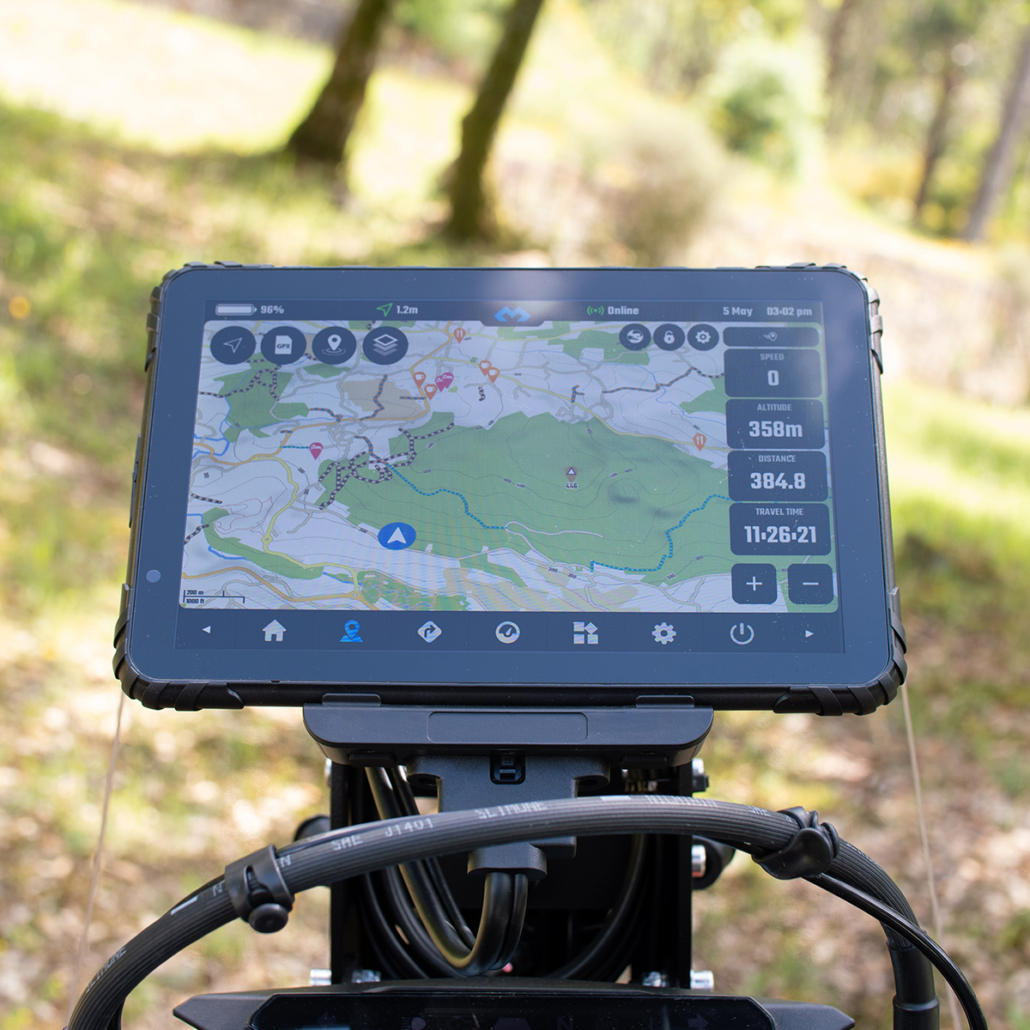

A rugged navigation Android tablet to guide you on your next adventure! The perfect motorcycle GPS system for those who want versatility of the Android eco-system.
Includes motorcycle holder with charging, our DMD2 app fully unlocked, Google Play Store, high-precision GPS and many motorcycle navigation specific features.

–

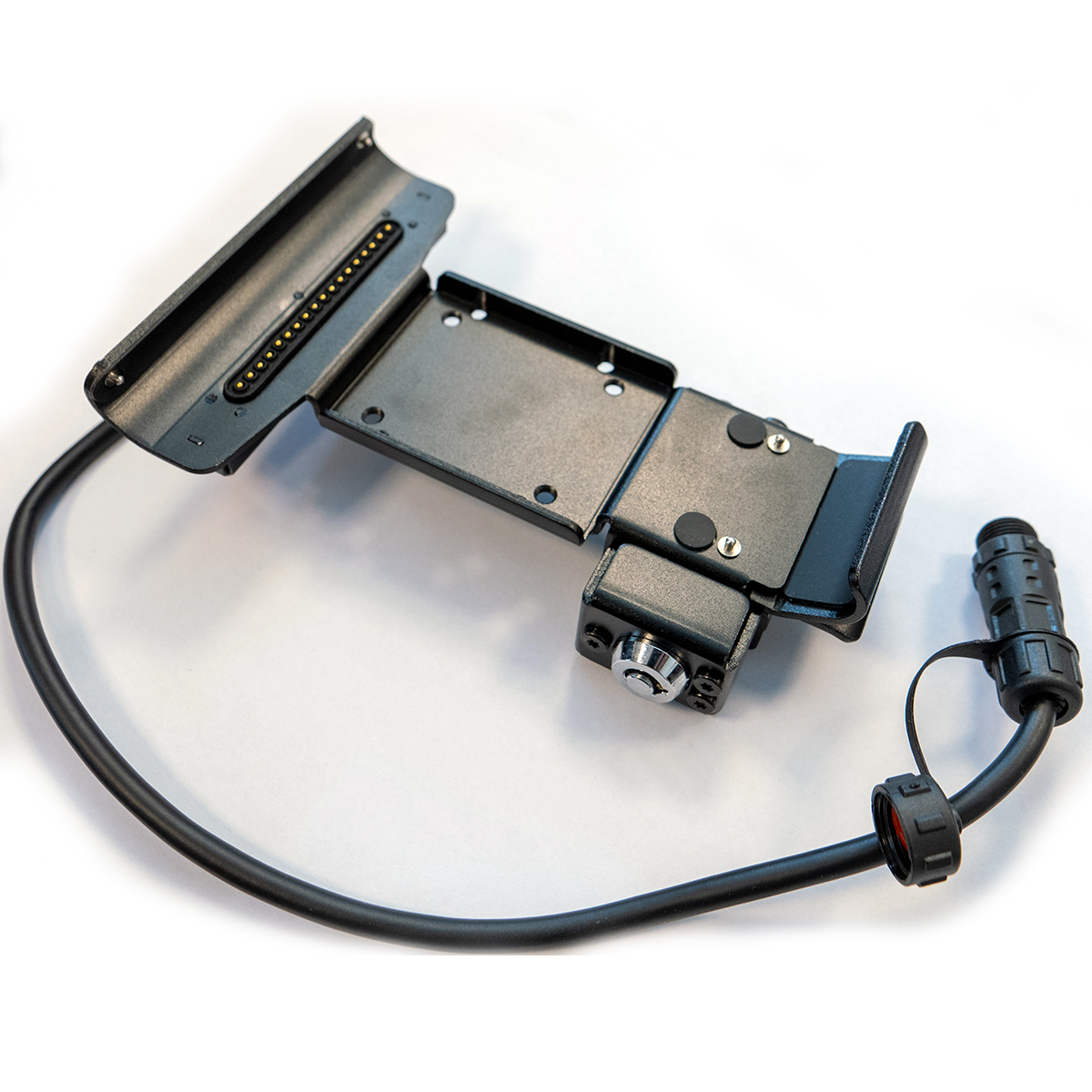

Attach it to the included charging holder and lock it with a key, the holder will keep your device charged and secure.

High quality GPS, IP67 rated, 2x SIM card + 1x SD Card, Android 12, Octa-Core Processor.

–

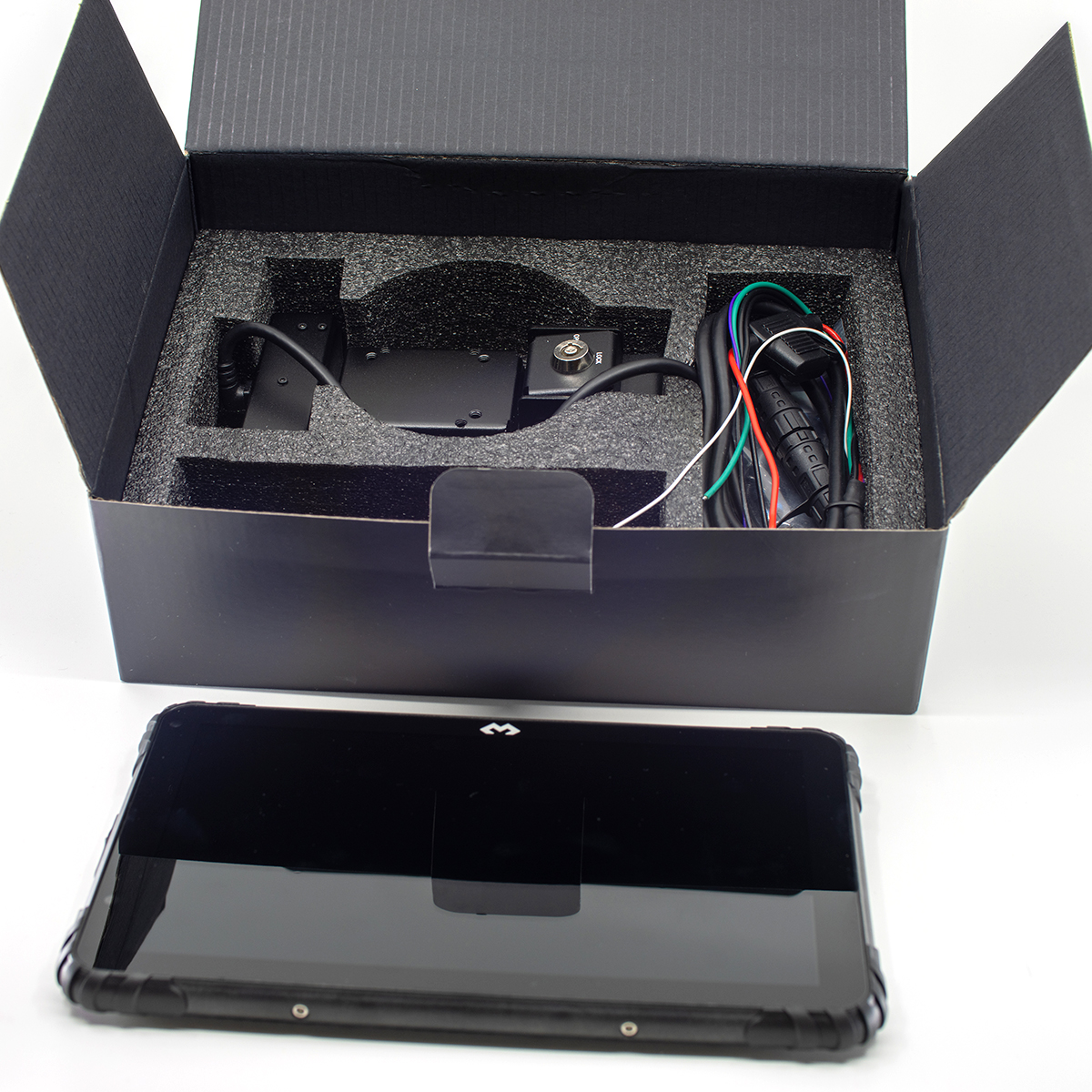

Includes tablet, charging holder and cables.

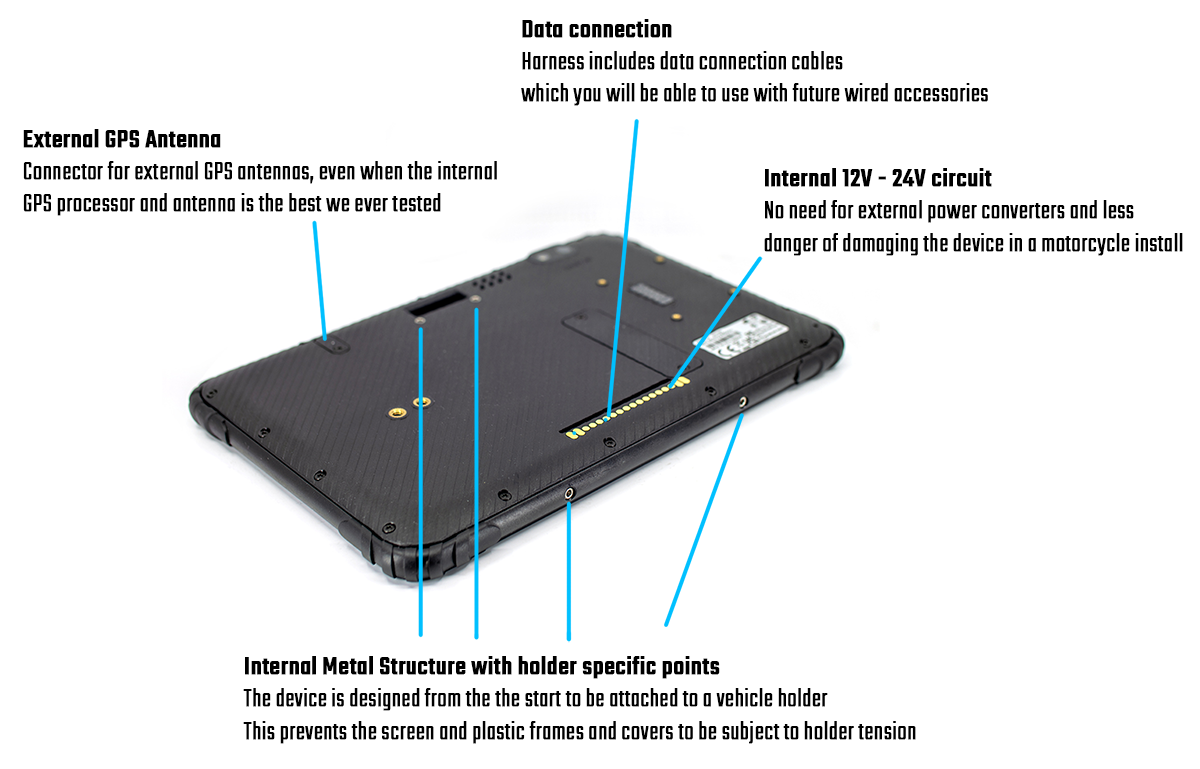

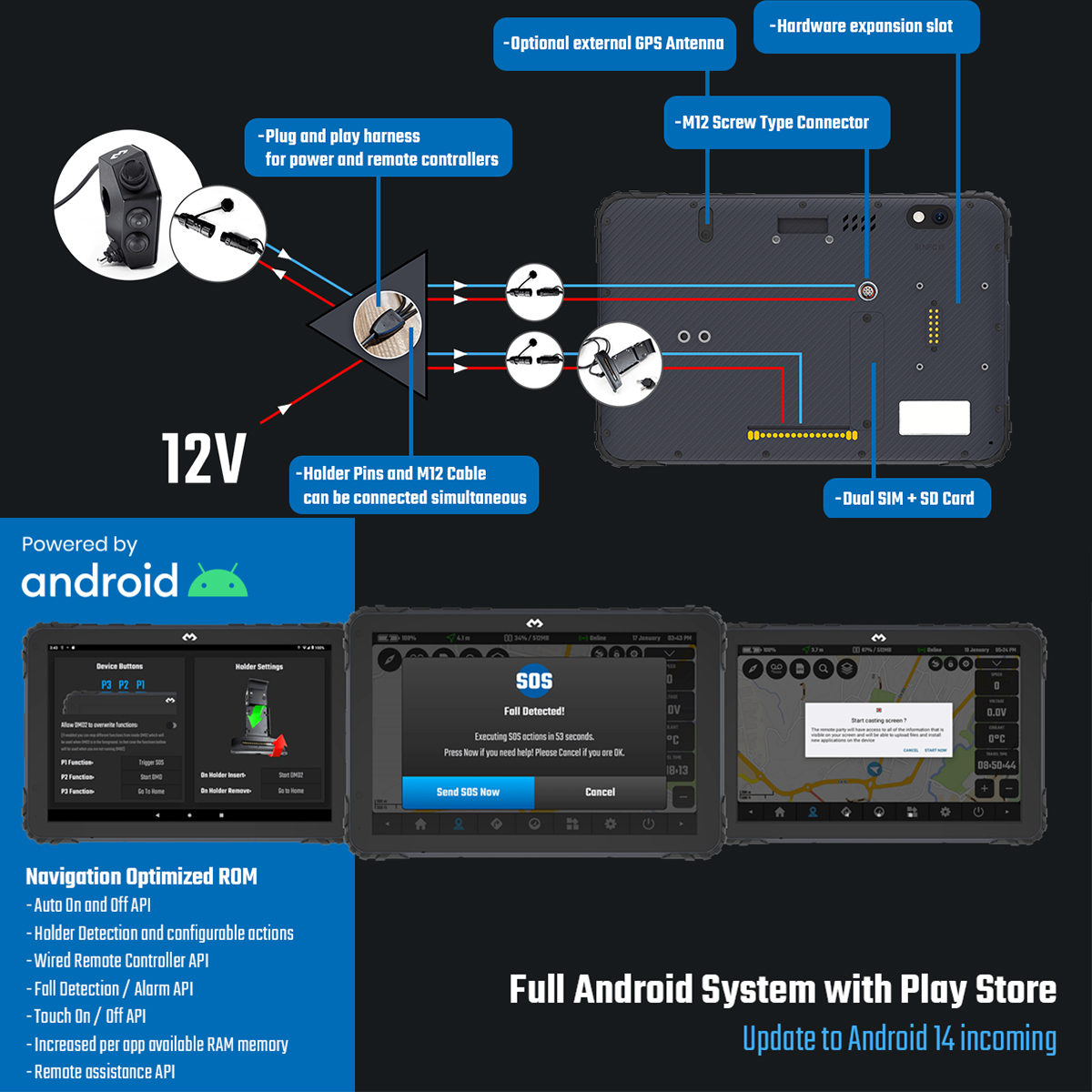

Best GPS Precision we ever seen, external GPS antenna connection, internal metal structure for motorcycle holder, internally 12V-24V circuit (no need for external power supplies or danger of burning when you damage your harness).
Auto Turn On on power detection and configurable auto shutdown. Regular OTA updates, DMD2 included lifetime activated.

–

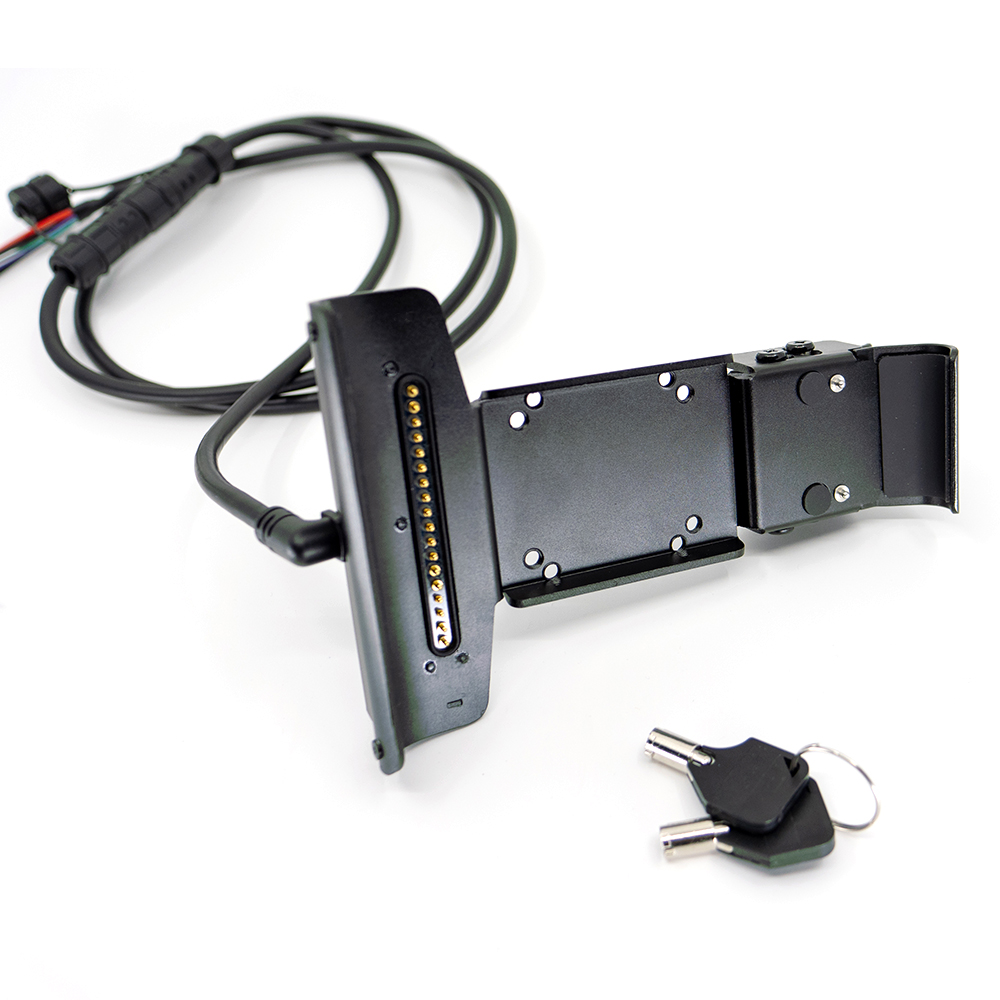

Now with new metal holder and new simplified harness! Note: Includes lock and you should always lock while riding!

In Stock

SKU: DMD-T865 Categories: , , ,

Description

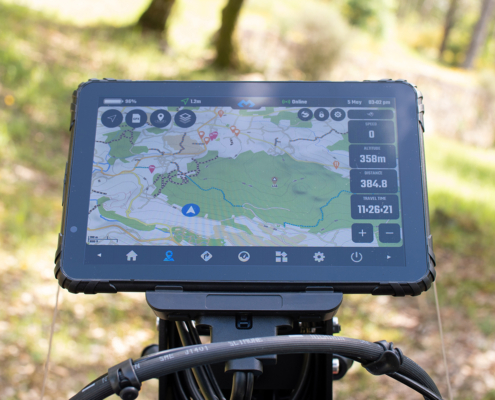

A full navigation kit, ready for your motorcycle!

Looking for an Android 8″ tablet for navigation that was made specifically for being attached to your motorcycle?

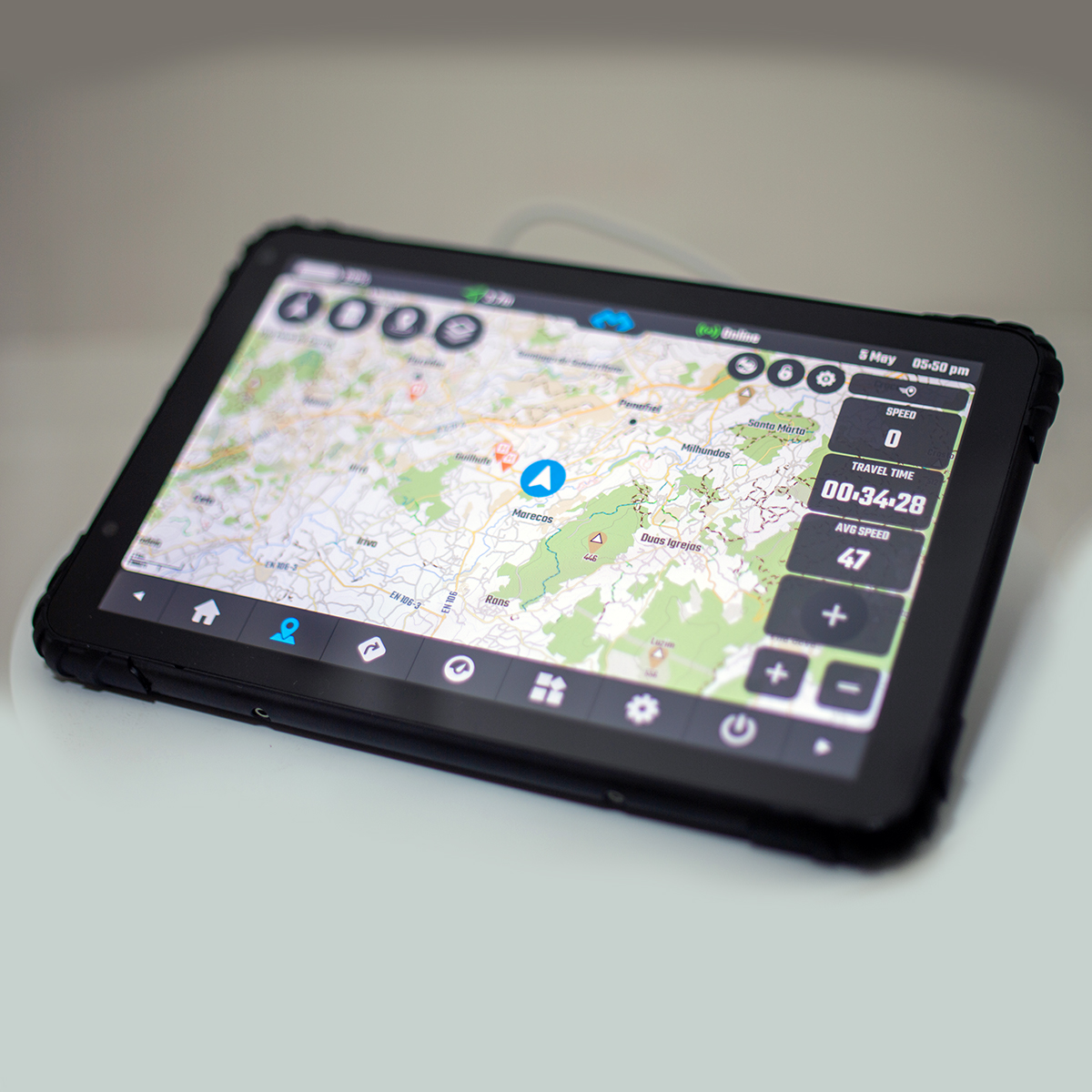

This IP67 device is optimised for navigation and was developed to be easily attached to your motorcycle, with charging holder, high precision GPS, light and good looking.

8″ Android 12 with regular OTA updates, Octa-Core CPU, 64GB internal memory + removable storage available for DMD2 maps and user files.

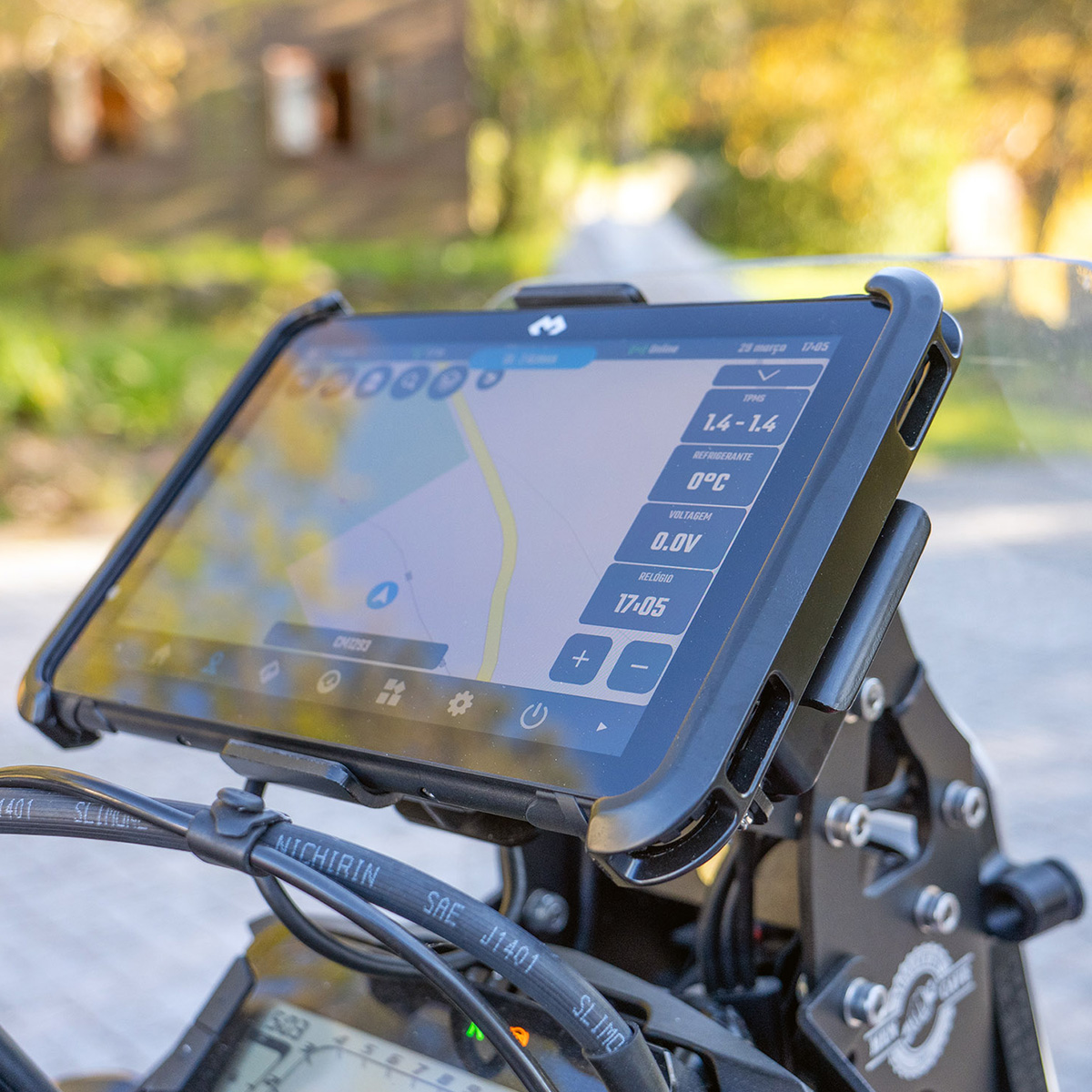

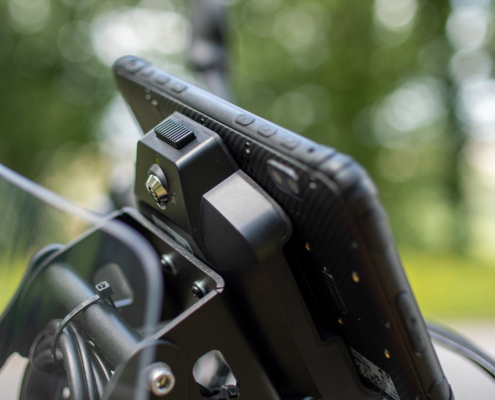

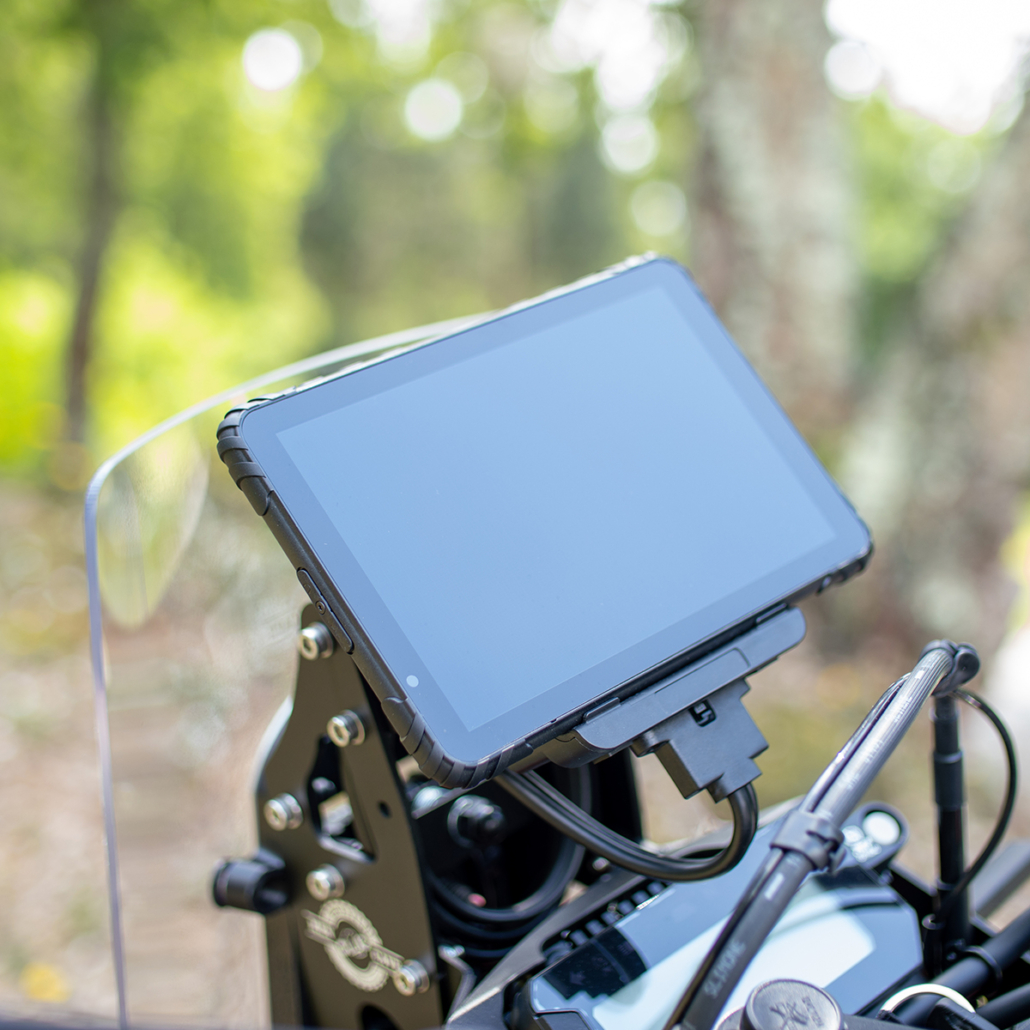

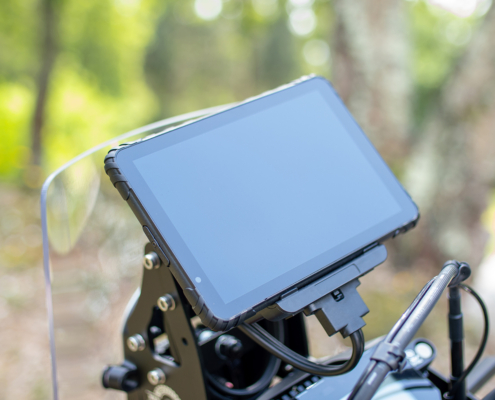

With charging holder (with key lock) that allows you to quickly attach and detach it from your motorcycle. Tested on tough enduro rides!

Includes DMD2 pre-installed with life-time license, certified and optimised!

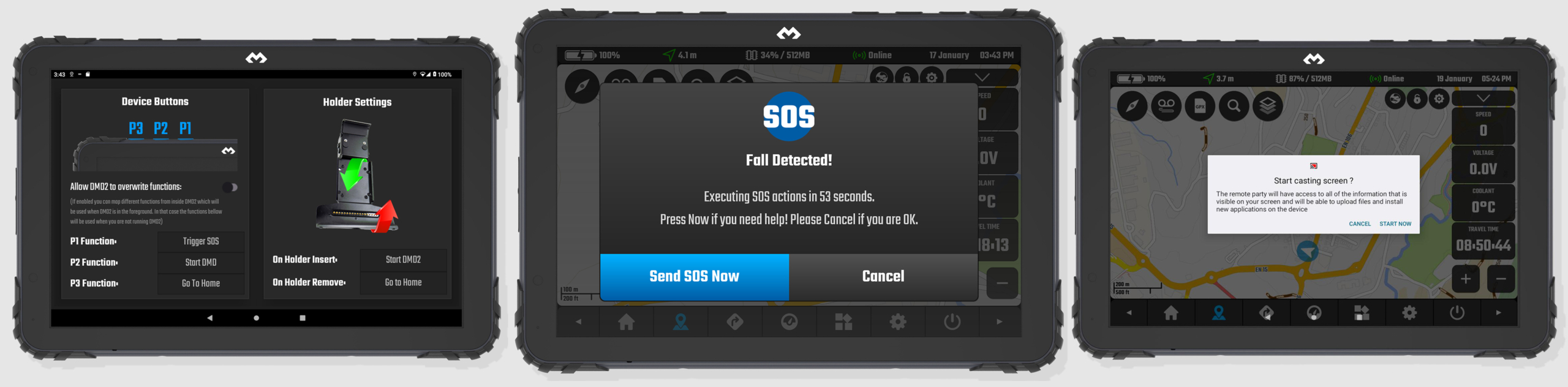

Many motorcycle quality of life features like auto turn-on, configurable auto turn-off, ignition detection, gloves mode and three extra configurable DMD2 function hardware button.





Advantages over other tablets?!

  • It includes an AMPS charging base for motorcycles
  • Internal power circuit is 12V-24V, does not require external power supplies
  • Built-in holder frame in the device chassis for perfect attachment to motorcycle holder
  • The charging holder is sold also as an individual item in case you have more then one motorcycle or also want to use it in your car
  • High Precision GPS with <= 2m precision
  • DMD2 pre-installed fully unlocked life-time
  • DMD2 certified which means no ROM update is released without testing DMD2 on it first and no new DMD2 function is released without testing on it either
  • Auto turn-on when you turn on your ignition
  • Configurable auto shutdown or auto turn-off screen, when you turn off your ignition
  • No camera stabilisers and built for motorcycle riding
  • With connector for external GPS Antenna

Advantages over dedicated GPS units?!

  • Big screen!
  • Android eco-system (do more than navigate)
  • Google Google Play Store which allows you to install applications that you want to use while riding
  • You can use it just like a regular tablet with a SIM card
  • Easy internet access by using a SIM card with a data plan
  • Lighter than most GPS units
  • Cheap charging base and original accessories
  • Higher screen resolution and faster processing than most dedicated GPS units
  • No dedicated GPS unit can beat the price / performance ratio
  • Believe it or not, the GPS precision is higher than 90% of dedicated GPS units
  • More regular system updates and always up to date apps
  • 5Ghz Wifi connection
  • Supports handlebar controllers

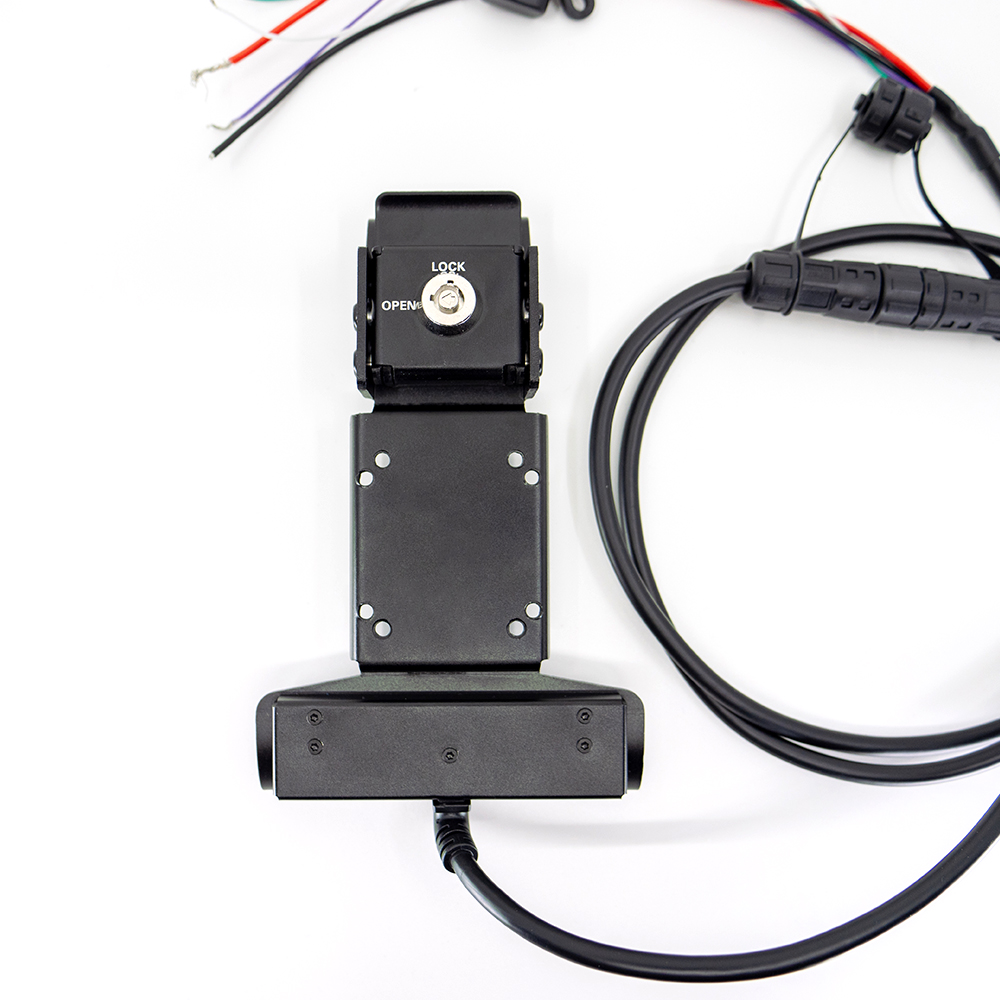

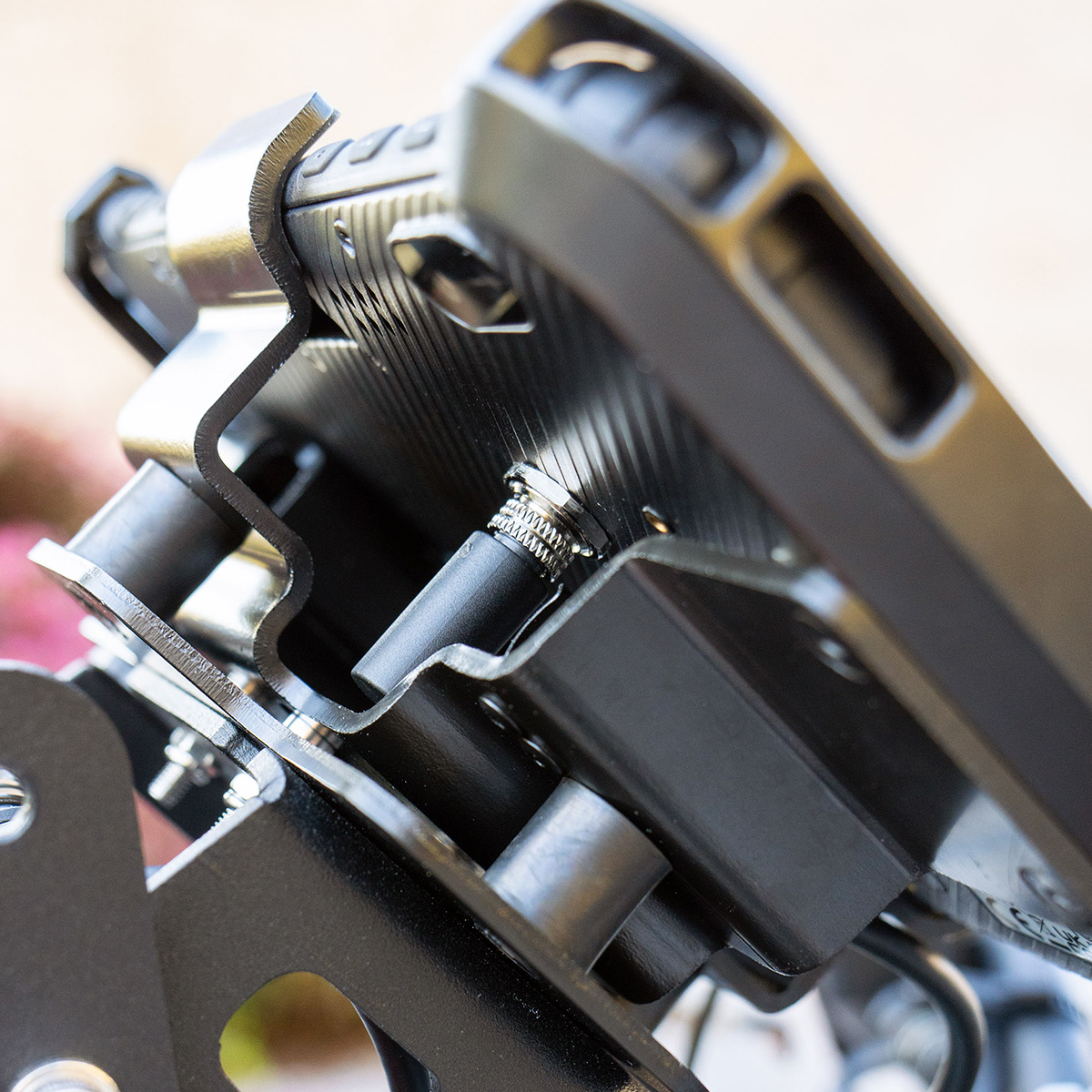

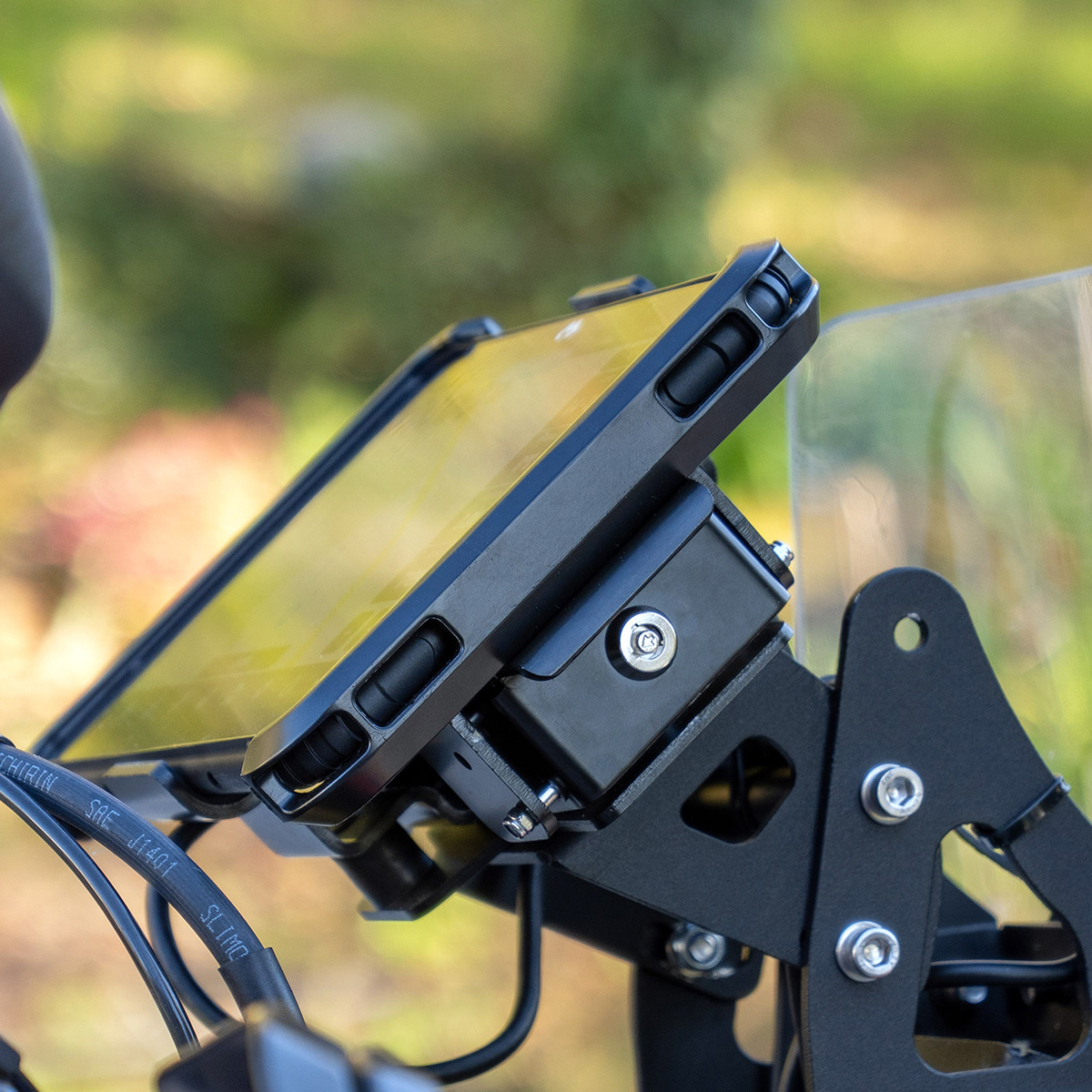

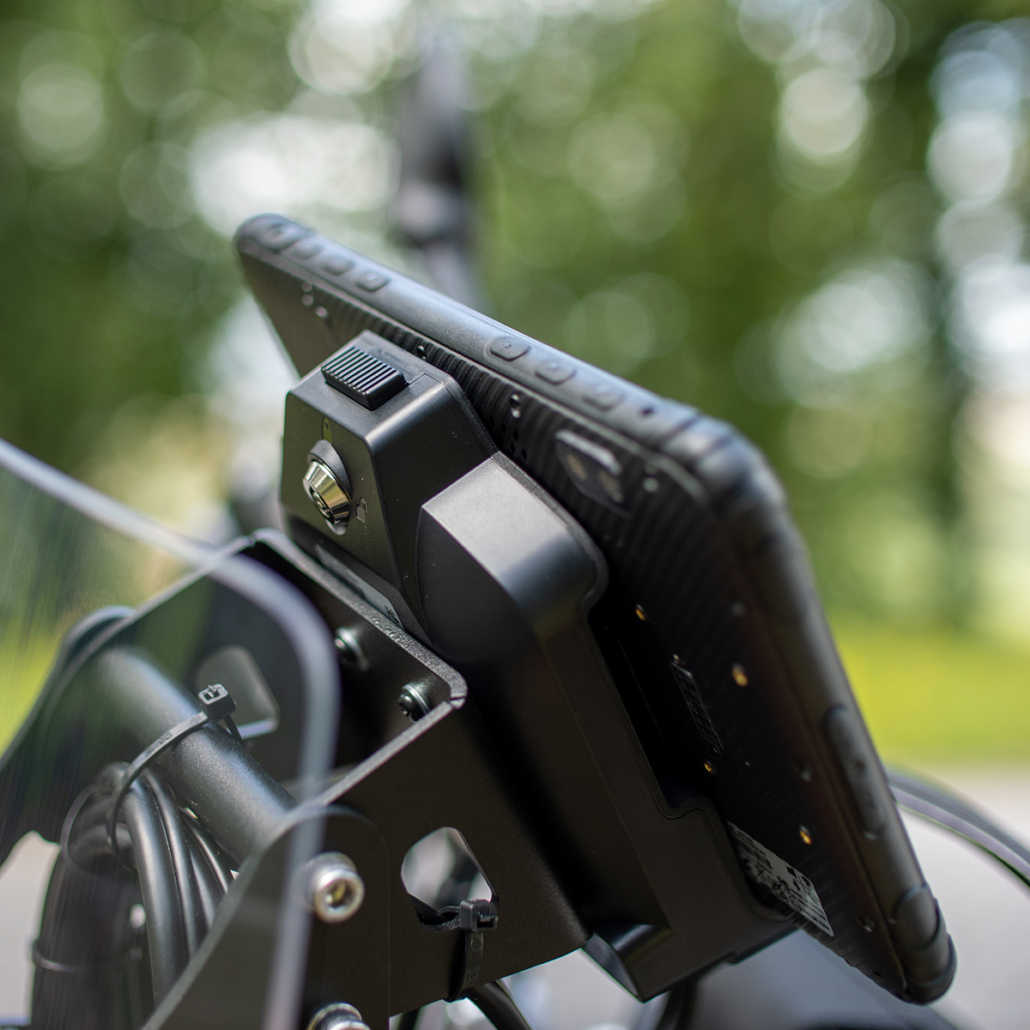

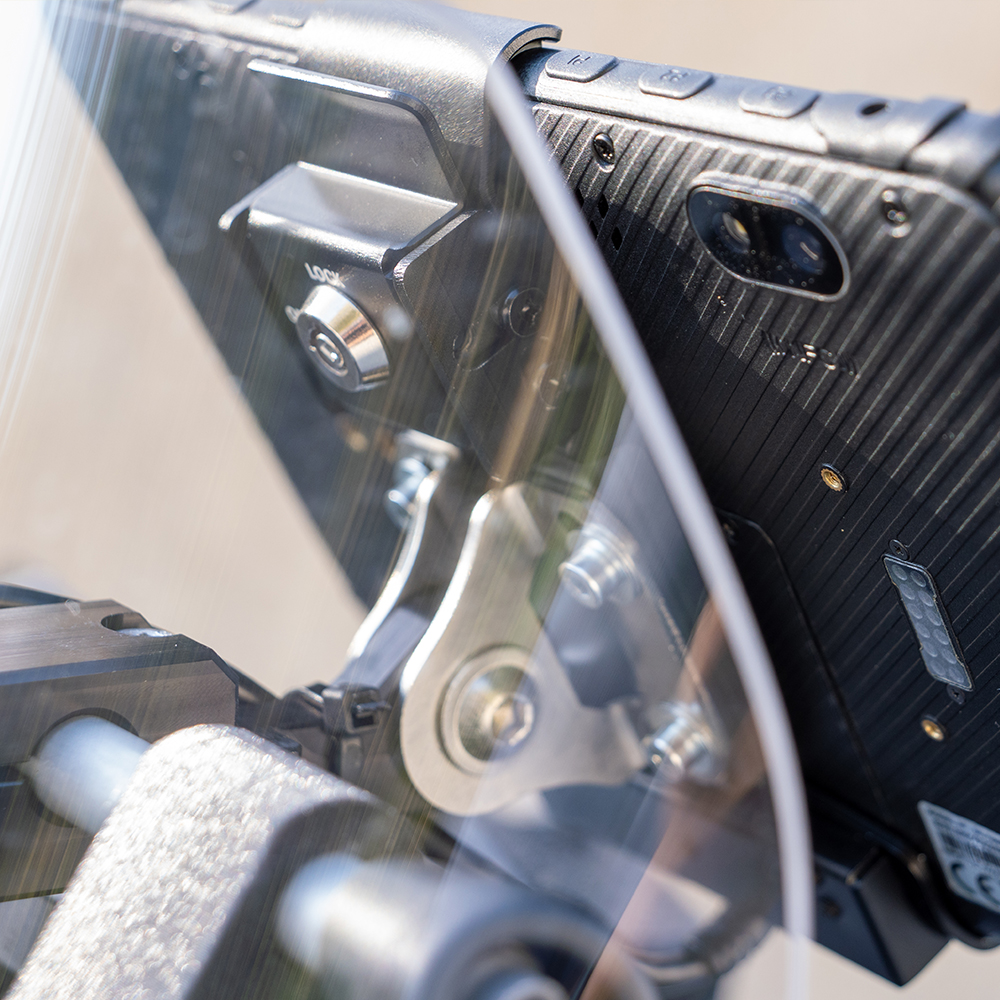

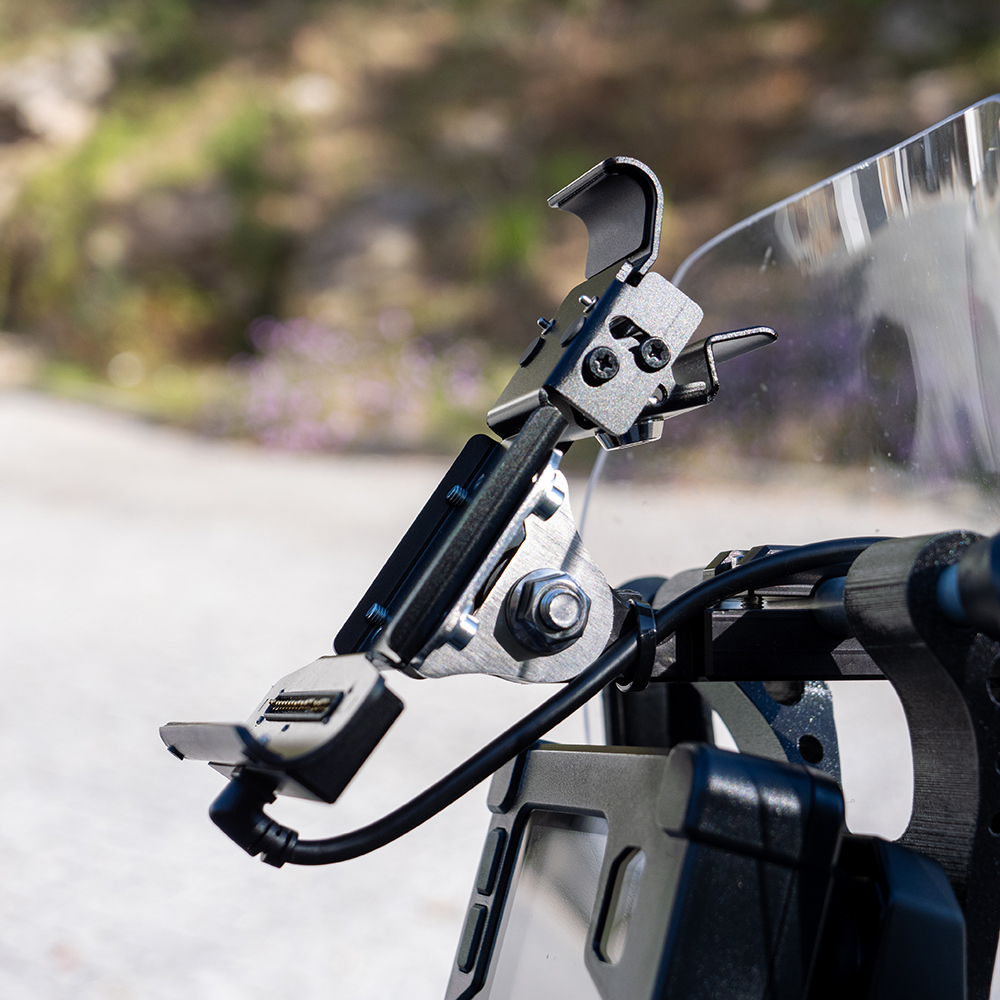

Now with new metal holder:

A DMD2 certified device means that for each new feature that we develop, we will always manually test it on this device. Each device OTA update is tested for maximum compatibility with DMD2 before release.




Specifications:

  • Octa Core Processor
  • 207mm L x 137.5mm W x 15mm D
  • Capacitive multi-touch / Glove, Wet
  • 64GB eMMC Storage + optional removable SD
  • GSM: 850/900/1800/1900MHz
    WCDMA: B1/B2/B4/B5/B8
    LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 LTD
    TDD: B38/B40/B41
  • Rear: 16MP Autofocus
  • Light sensor & Proximity sensor
  • Android 12
  • 528g
  • Battery 3.8V 8000mAh
  • micro SDXC card slot
  • GNASS, GLONASS, GALILEO, A GPS
  • Motorcycle Charging dock
  • IP67
  • OTA Updates
  • 8inch, IPS panel (1280 x 800 pixel) 800 nit
  • 2 x Nano-SIM
  • USB Type C (2.0) (OTG)
  • Wifi 5GHz: 802.11a/n/ac — up to 500 Mbps;
    BT v2.1+EDR, 3.0+HS, v4.1+HS
  • Accelerometer, E-Compass, Gyroscope
  • 12V-24V Internal Circuit (No external power converters needed)



Accessories and Extras:



Extra Holder

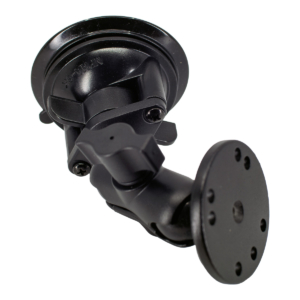

Car Mount

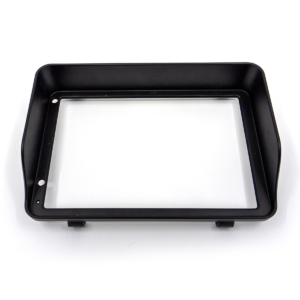

Sunshade Cap

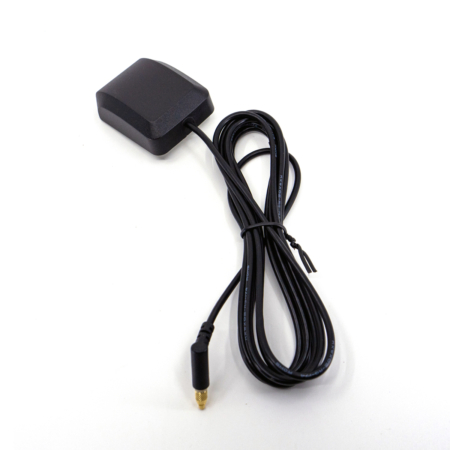

External GPS Antenna

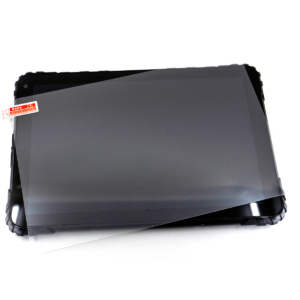

Anti-Glare Screen Protector

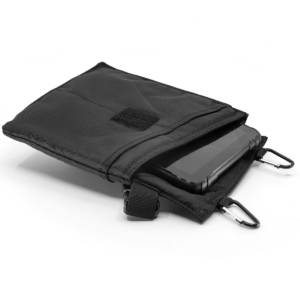

Carry Bag



Fixation Brackets

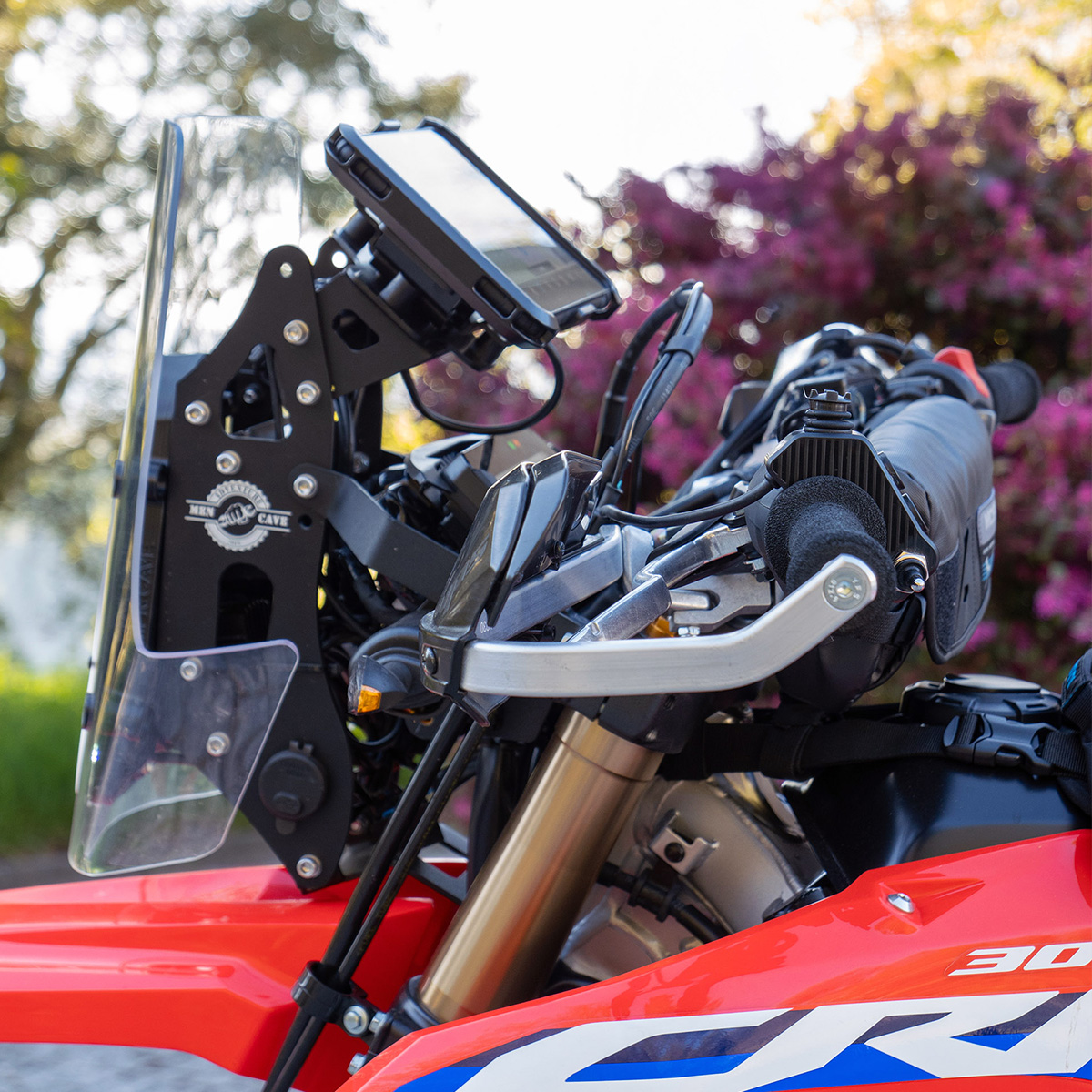

If your motorcycle has a 12mm bar:
– Use the DMD AMPS Base (with included spacers) – This will keep the device as close to the bar as possible – Will only be possible if there is enough clearance to windshield!
– Not enough clearance – most motorcycles like BMW GS / Tenere 700 – will require a 12mm extension bracket like these: 12mm bracket with AMPS base or Our special edition 12mm bracket with AMPS base

–

If you want to mount it on the handlebar:
– Use our shortest 28mm handlebar AMPS bracket (For 28mm handlebar only)
– Or to place the device closer to you use our 22-28mm handlebar long bracket (For 22 and 28mm handlebar)

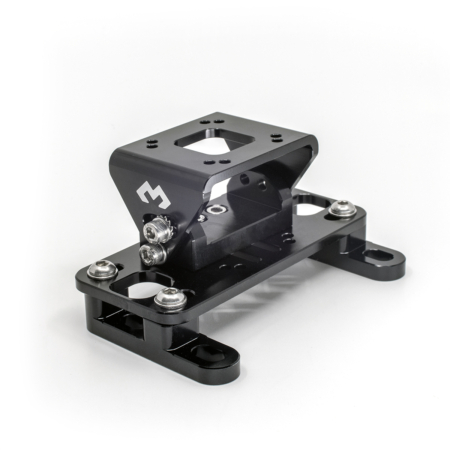

For the KTM 890/790 (19-22) / KTM 390 / HUSQVARNA NORDEN:
– Use our specific mount and AMPS converter

–

Extra recommendation for Yamaha Tenere 700:
– Please make sure you have a cockpit anti-vibration bracket like this one

Already got an AMPS mount but need to convert orientation or screw direction?:
– Check out our Super AMPS Converter

User Manual & Support

User Manual @ DMD2 Website

–

For support please use our support form
