Description
Features:
- use the Group Track feature for up to 20 riders, as well as position sharing to keep all riders together

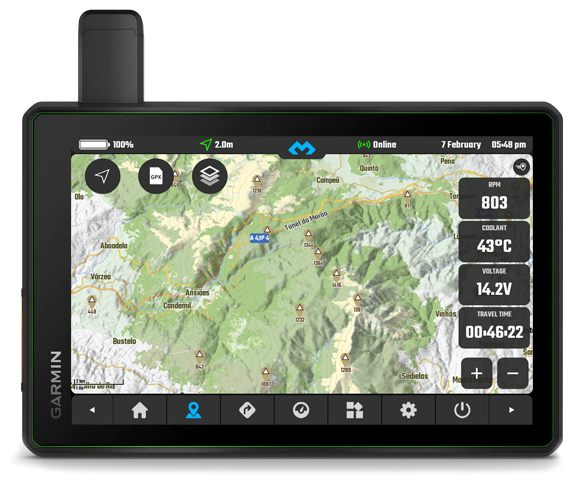

- navigate with OpenStreetMap (OSM) on unpaved roads and trails using turn-by-turn trail navigation including Adventure Roads and audio announcements

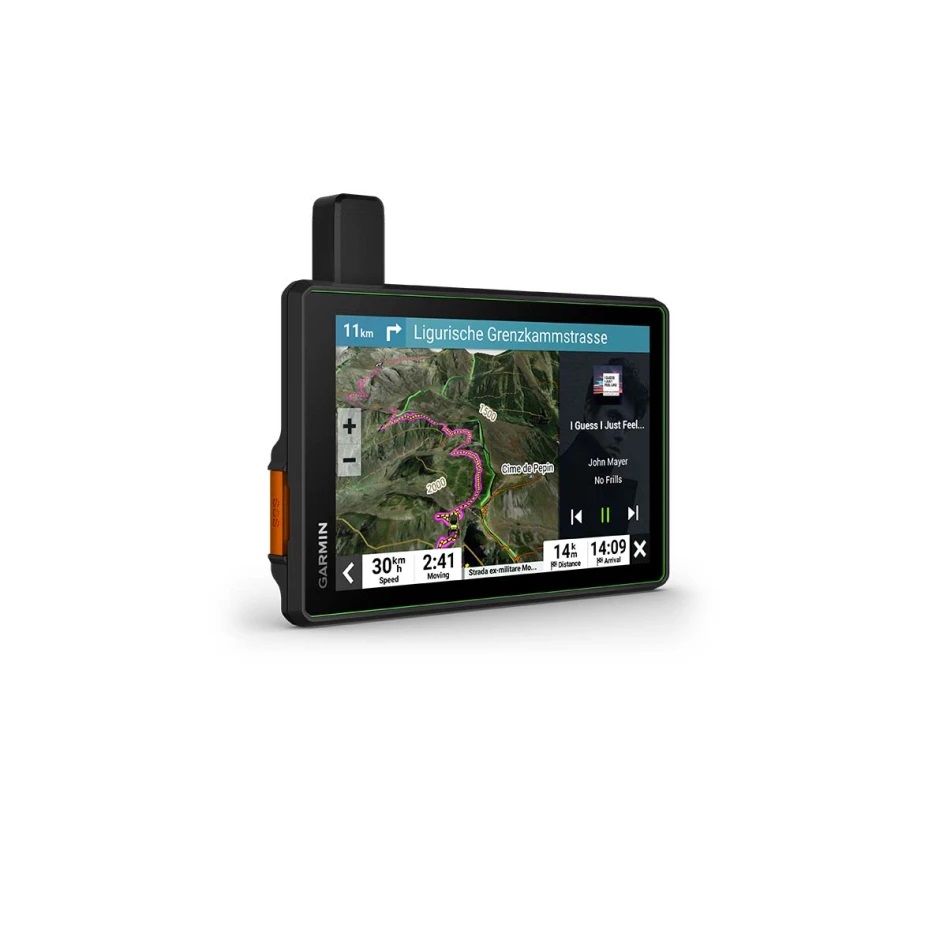

- this rugged navigator is IP67 weatherproof and features an 8″ glove-friendly touch screen
- download BirdsEye satellite imagery directly to the Tread without a computer
- use the Tread® app on your compatible smartphone and take advantage of Group Ride Mobile features for easy route planning and more
- integrated features offer more peace of mind. With an active subscription, you can use inReach® technology for global satellite communications

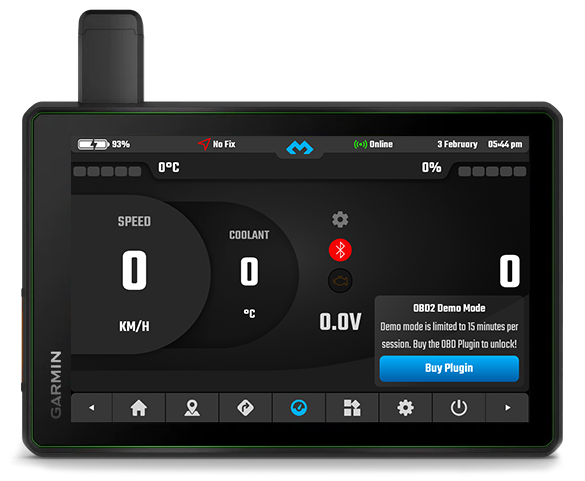

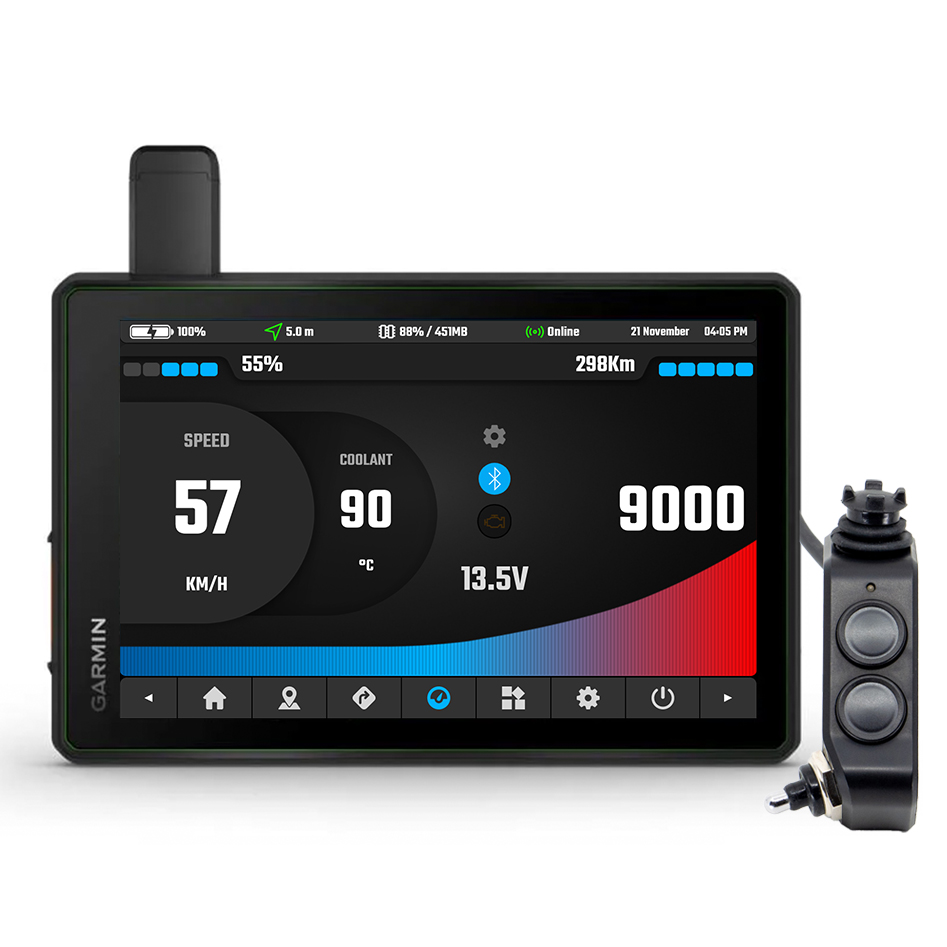

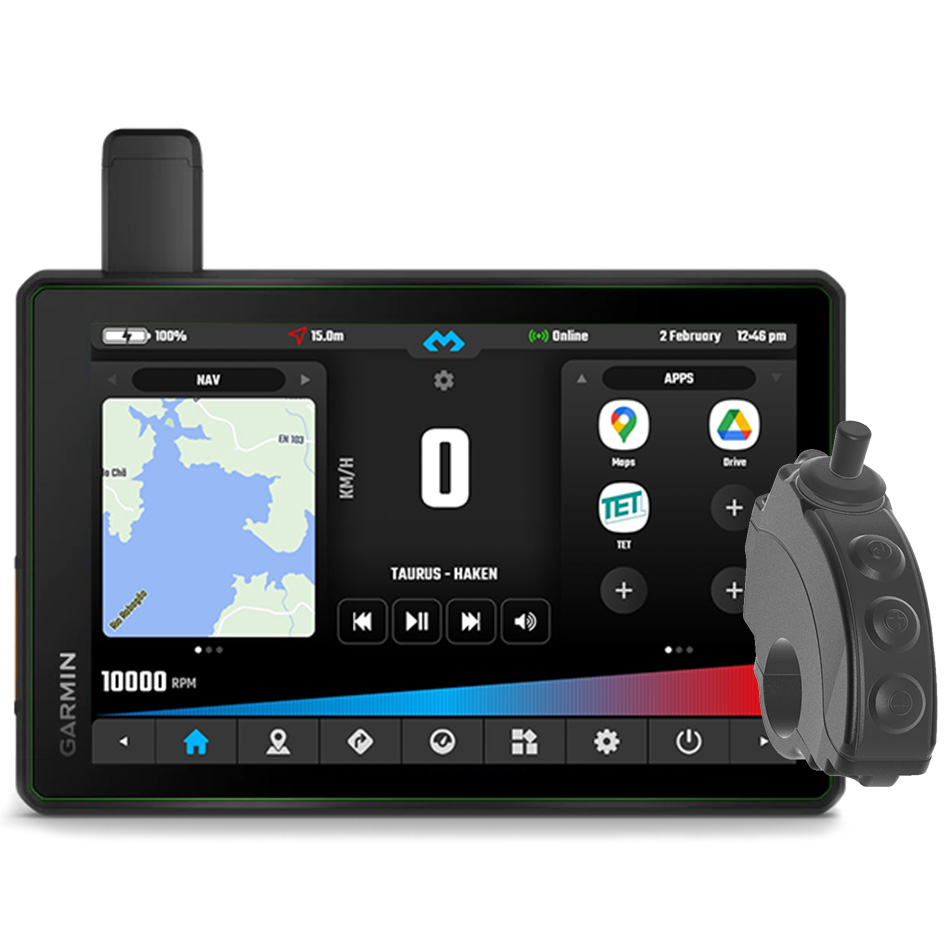

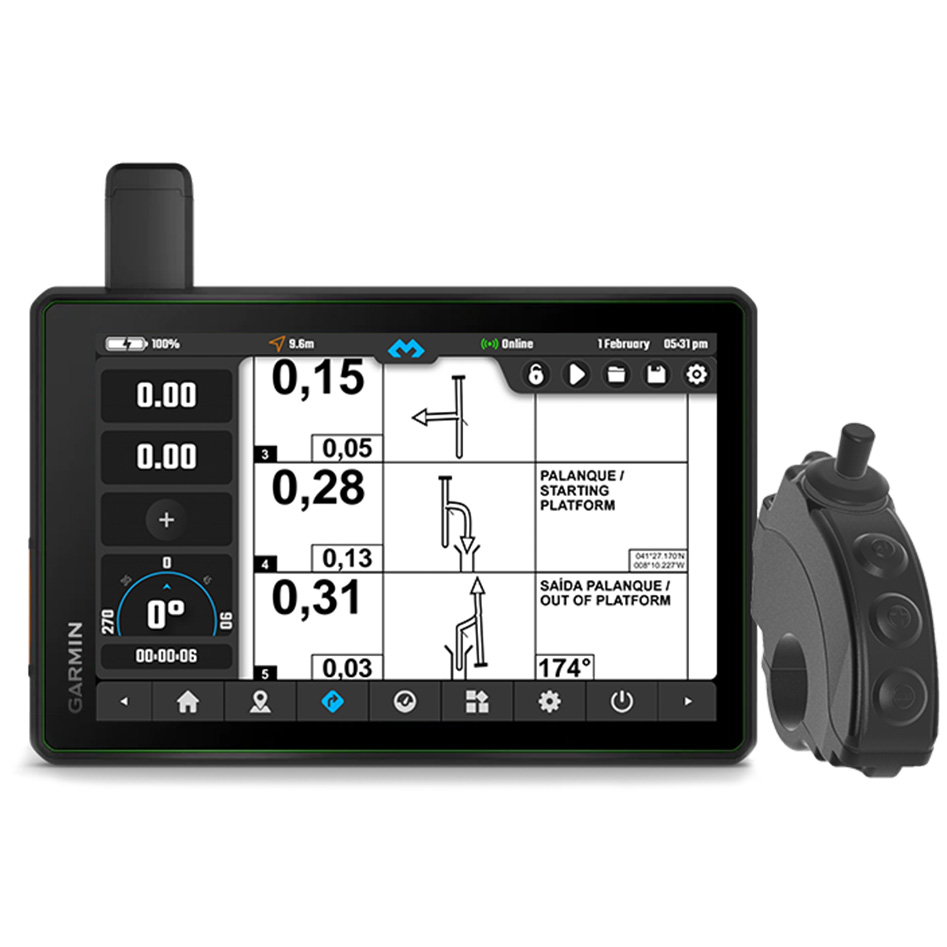

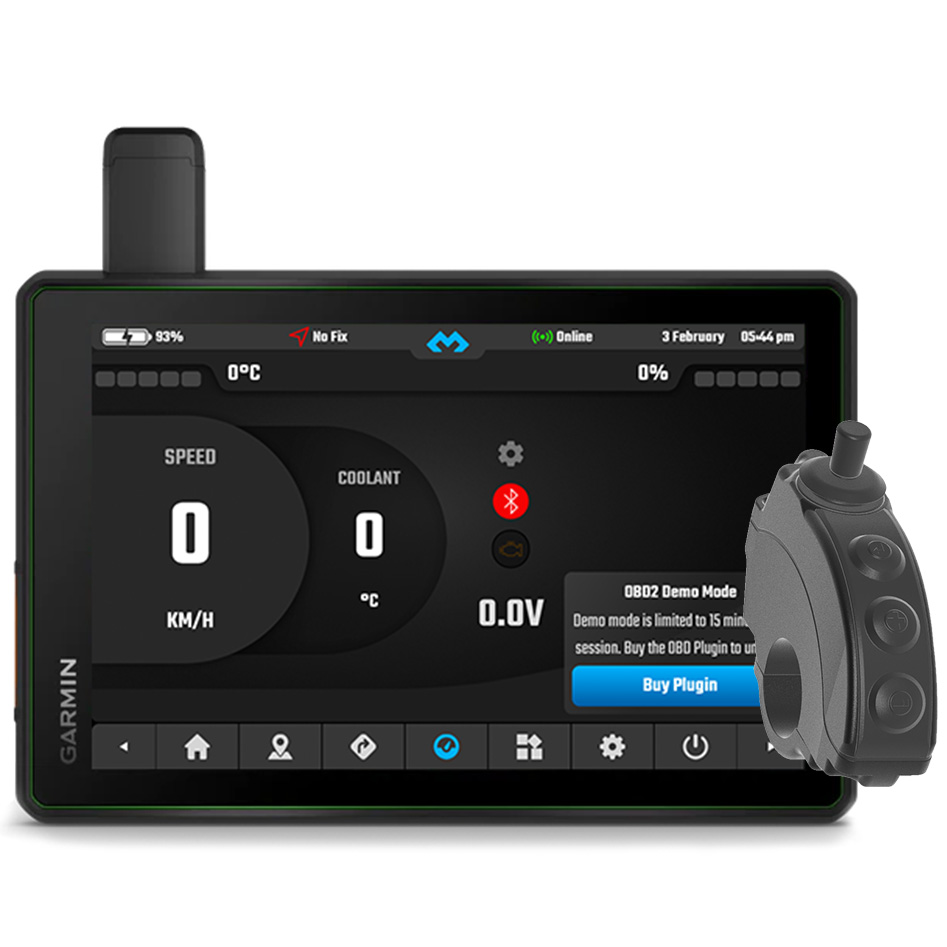

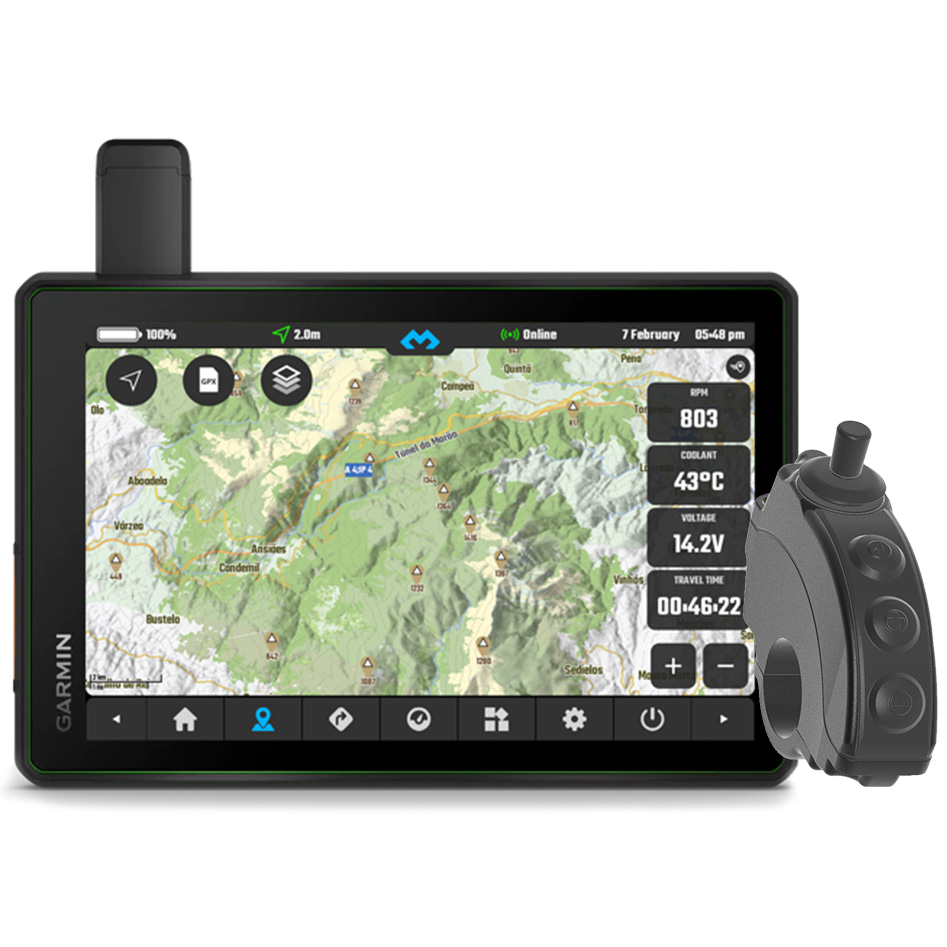

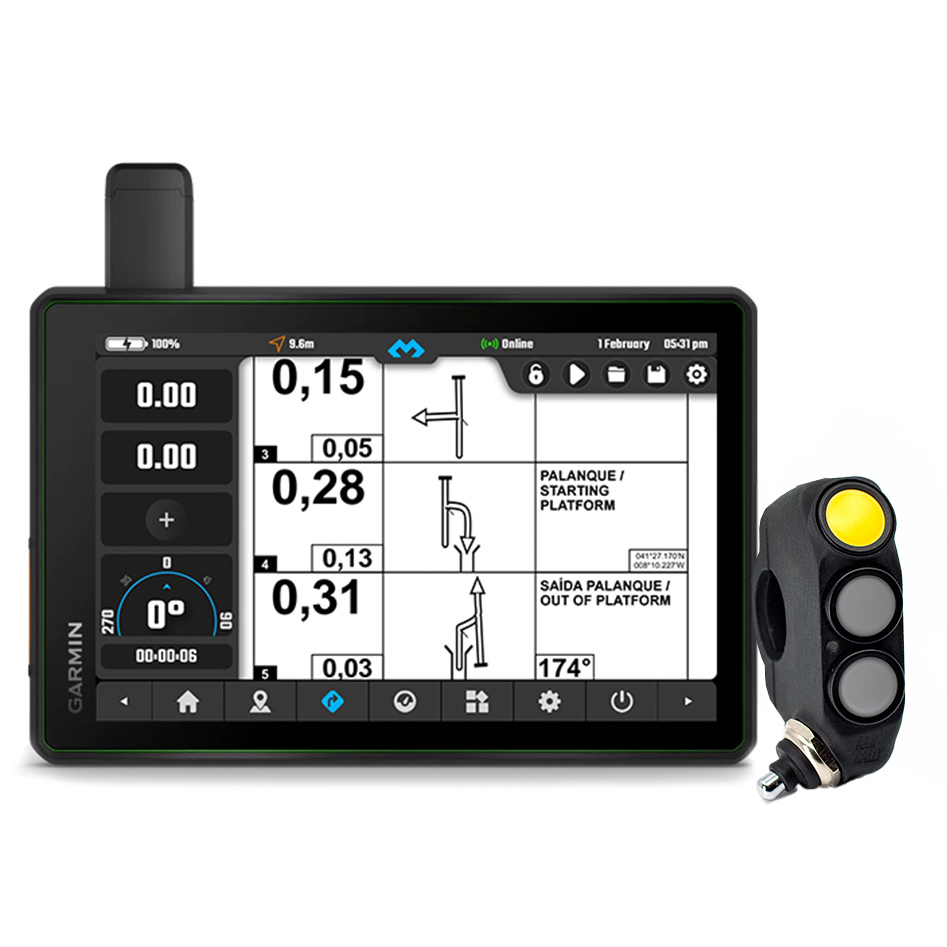

Includes DMD2 App fully licensed lifetime
Specifications:
General:
- Dimensions (WxHxD): 20.7 x 16.9 x 3.1 cm (8.1 x 6.7 x 1.2″)
- Display size (WxH): 17.2 x 10.8 cm (6.8 x 4.2″), 20.3 cm diagonal
- Display resolution (BXH): 1,280 x 800 pixels
- Display type: multi-touch glass display, HD TFT color display with enormous brightness and white backlight, display with selectable orientation
- Weight: 646 g
- Battery: Lithium-ion battery
- Battery life: up to 6 hours (with backlight at 50%) / up to 1 hour with backlight at 100%
- Water resistance: IPX7
- Drop test rating: MIL-STD-810
- Dust resistance: IP6X

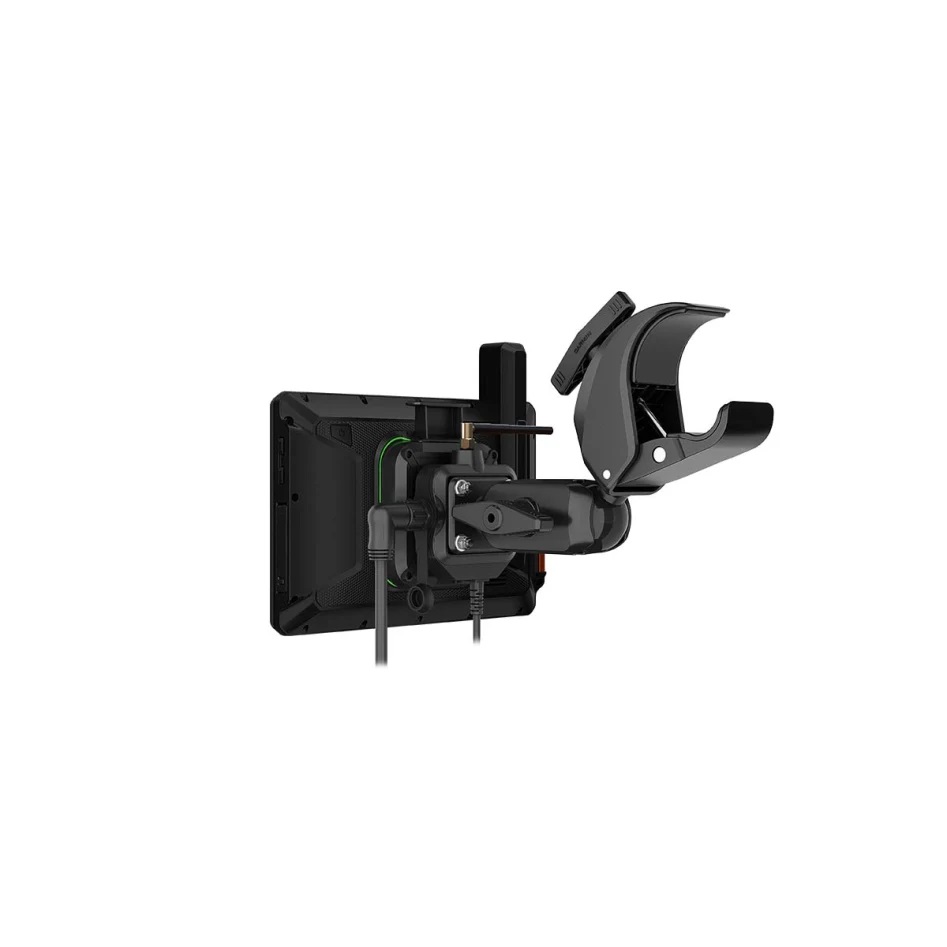

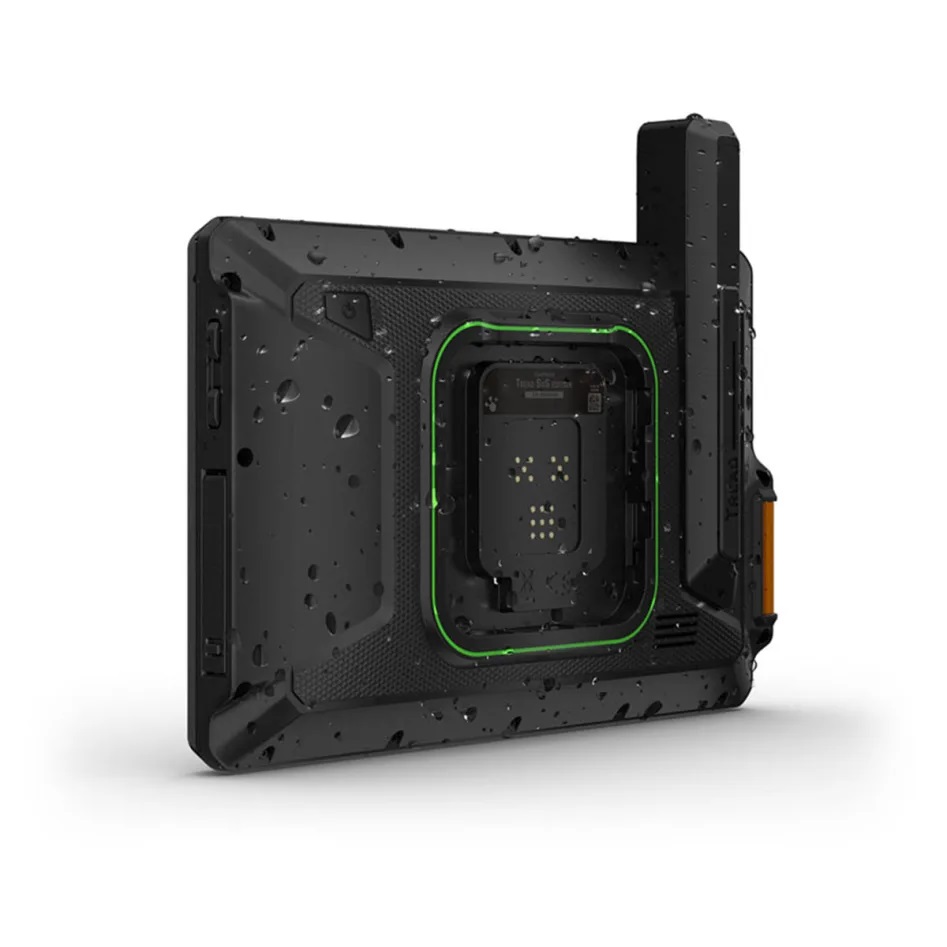

- Magnetic mount: mount with magnetic lock
- Pipe mount (3.81 – 6 cm / 1.5 – 2.375″)
- 1.5″ ball adapter with AMPS plate: yes
Maps and memory:
- pre-installed cards: yes
- Data cards: microSD™ card (not included)
- 3D terrain: yes
- internal memory: 64 GB
- Possibility to add maps: yes
- Storage and performance capacity: microSD™ card with a maximum of 256 GB.
- map updates included: yes
- downloadable satellite images: yes (BirdsEye)
Sensors:
- GPS: yes
- Galileo: yes
- multi-GNSS positioning with 10 Hz: yes
- barometric altimeter: yes
- compass: yes
Outdoor recreation functions:
- point-to-point navigation: yes
- preloaded topographic maps: yes
- track navigation: yes
- trail navigation with turn-by-turn directions: yes
Navigation features:
- Garmin Real Directions™ route guidance: yes
- Tripadvisor® ratings for points of interest: yes
- Route customization by preferred cities/streets: yes
- Traffic data updates: yes (with Garmin Tread app)
- Intersection view with traffic signs: yes
- Speed limits (shows maximum allowed speed for most roads): yes
- Information on sharp turns, schools, red light cameras, speed cameras and more: yes
Advanced features:
- Smart notification via the Garmin app: yes
- Map and software updates via wifi: yes
- Access to live services via the app: yes
Motorcycle features:
- Glove-operable touchscreen: yes
- Functions for using music and media from smartphone or MP3 player: yes
- Sunlight readable and weather resistant: yes
- Garmin Adventurous Routing™: yes
- Motorcycle POIs (Points Of Interest) for motorcycle repair shops, dealers and more: yes
- Elevation profile: yes
- Round trip routing: yes
- service history log: yes
- supports custom maps: yes
- supports TOPO maps: yes
Camping functions:
- special routing according to the size and weight of the vehicle: yes
- directory of campsites and facilities: yes
- elevation information for roads: yes
- speed limit changes: yes
- user-friendly route planner with GPX file targets: yes
Overlanding functions:
- Integrated Inreach® technology (active subscription required; subject to regulation or prohibition in some jurisdictions): yes
- pairing with Garmin Powerswitch: yes
- compatible with Group Ride Tracker: yes (included)
- compatible with external GPS antenna with mount: yes
- compatible with external Inreach® satellite antenna: yes
- Group Ride Mobile: yes (with Garmin Tread app)
- track recording (track): yes
- IOverlander™ POIs (Points Of Interest): yes
- Displays for longitudinal and lateral slope: yes
- BirdsEye satellite imagery (download via wifi): yes
Group Ride Radio:
- Radio frequency band: VHF 169.4125/169.4250/169.4375/169.4500/169.4625 MHz
- Group Ride range: up to 13 km (8 miles) with antenna mounting kit
- Group Ride Tracking: up to 20 riders simultaneously
- Group Ride update rate: 5 seconds
- Radio transmitted recorded messages: yes
Outdoor Application:
- Dog tracking: yes (when paired with a compatible dog tracking system)
Contents:
- 1 x Garmin Navigation device
- 1 x Garmin Group Ride Tracker
- 1 x Garmin VHF antenna
- 1 x cradle with magnetic lock
- 1 x power cable
- 1 x USB-C cable
- incl. antenna mounting kit
- incl. tube mounting kit
