Description
CONSTRUCTION

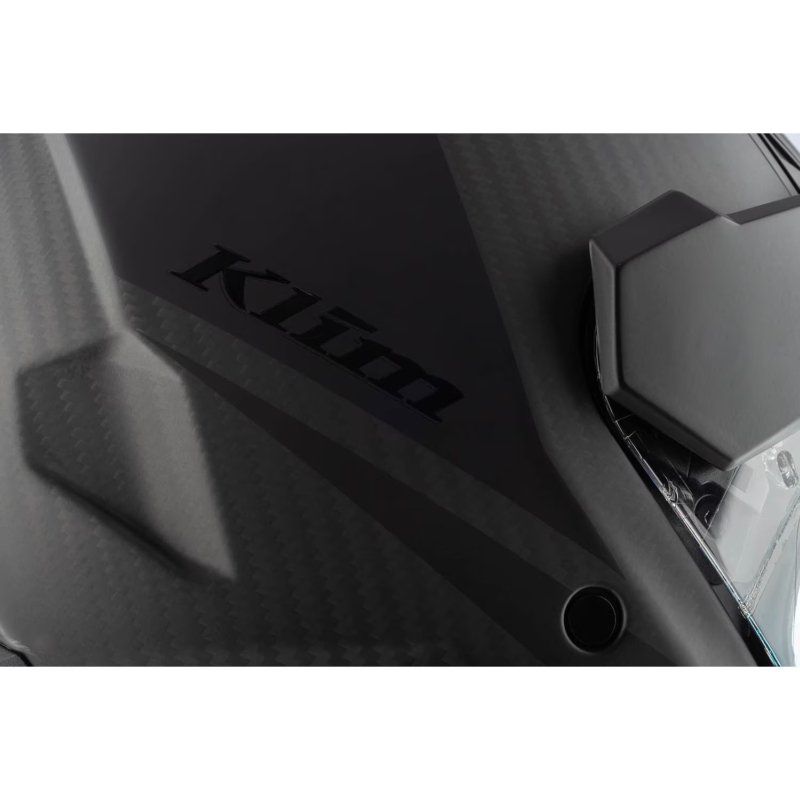

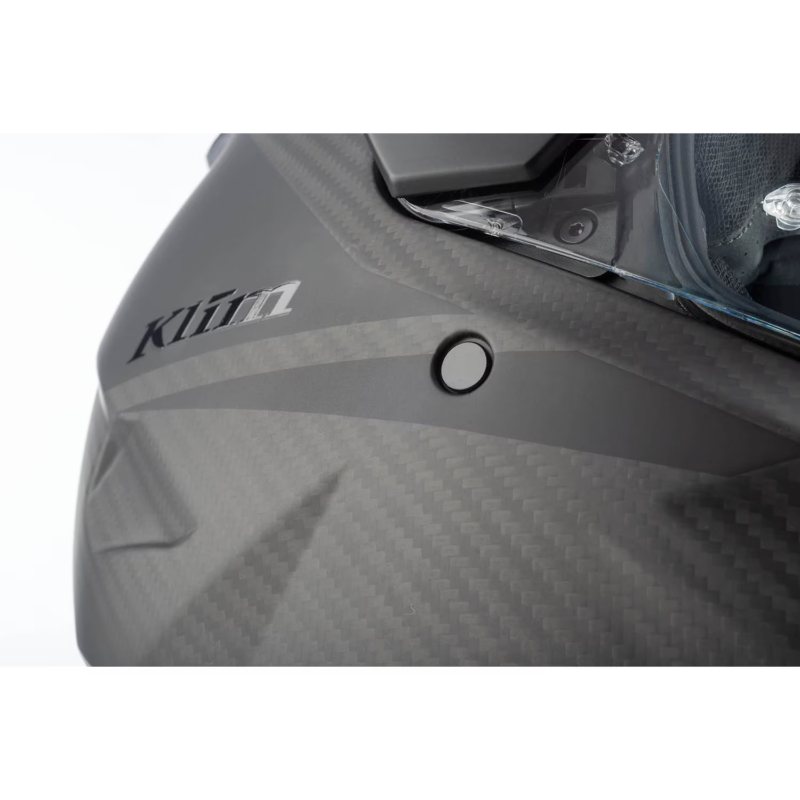

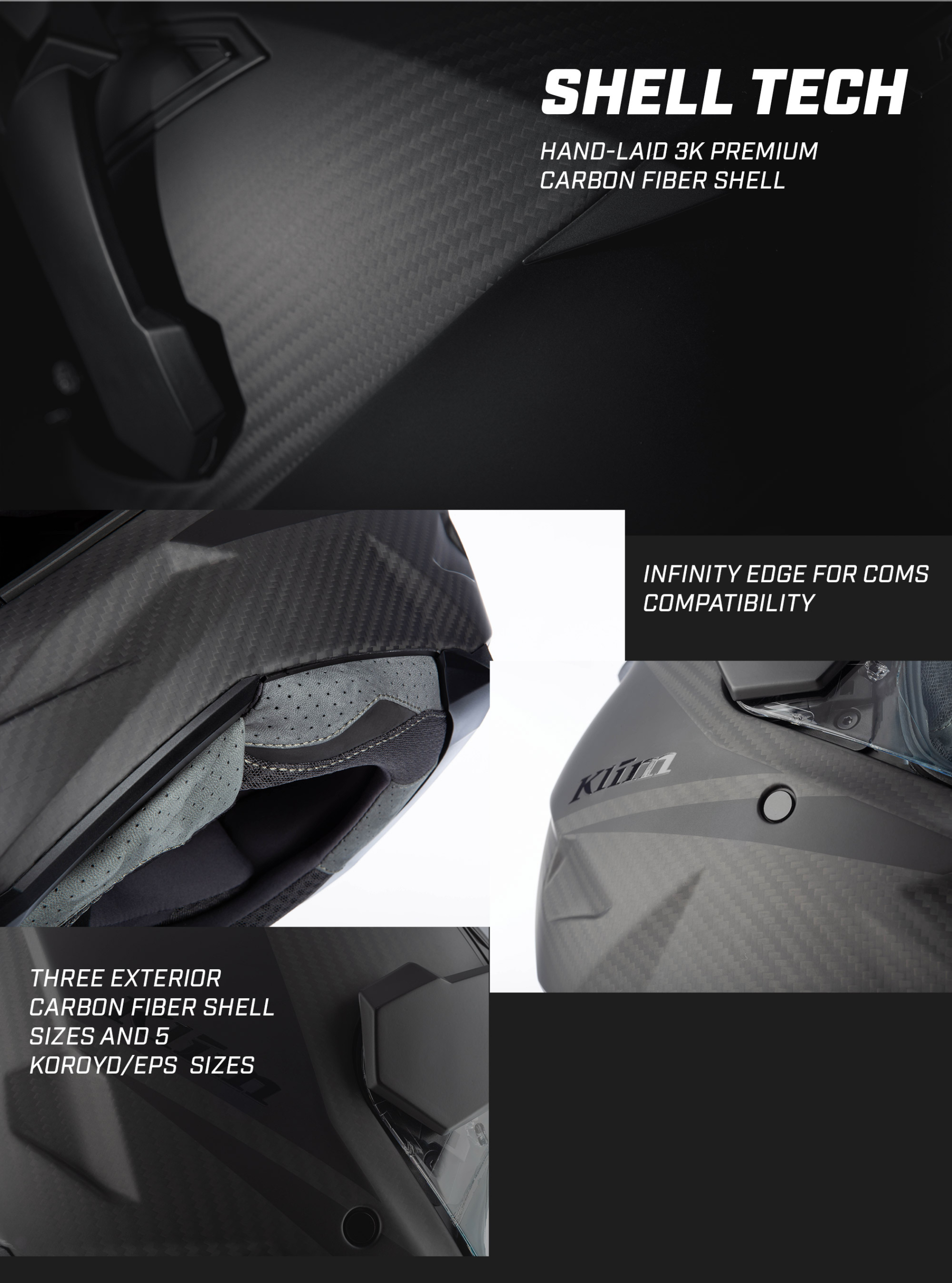

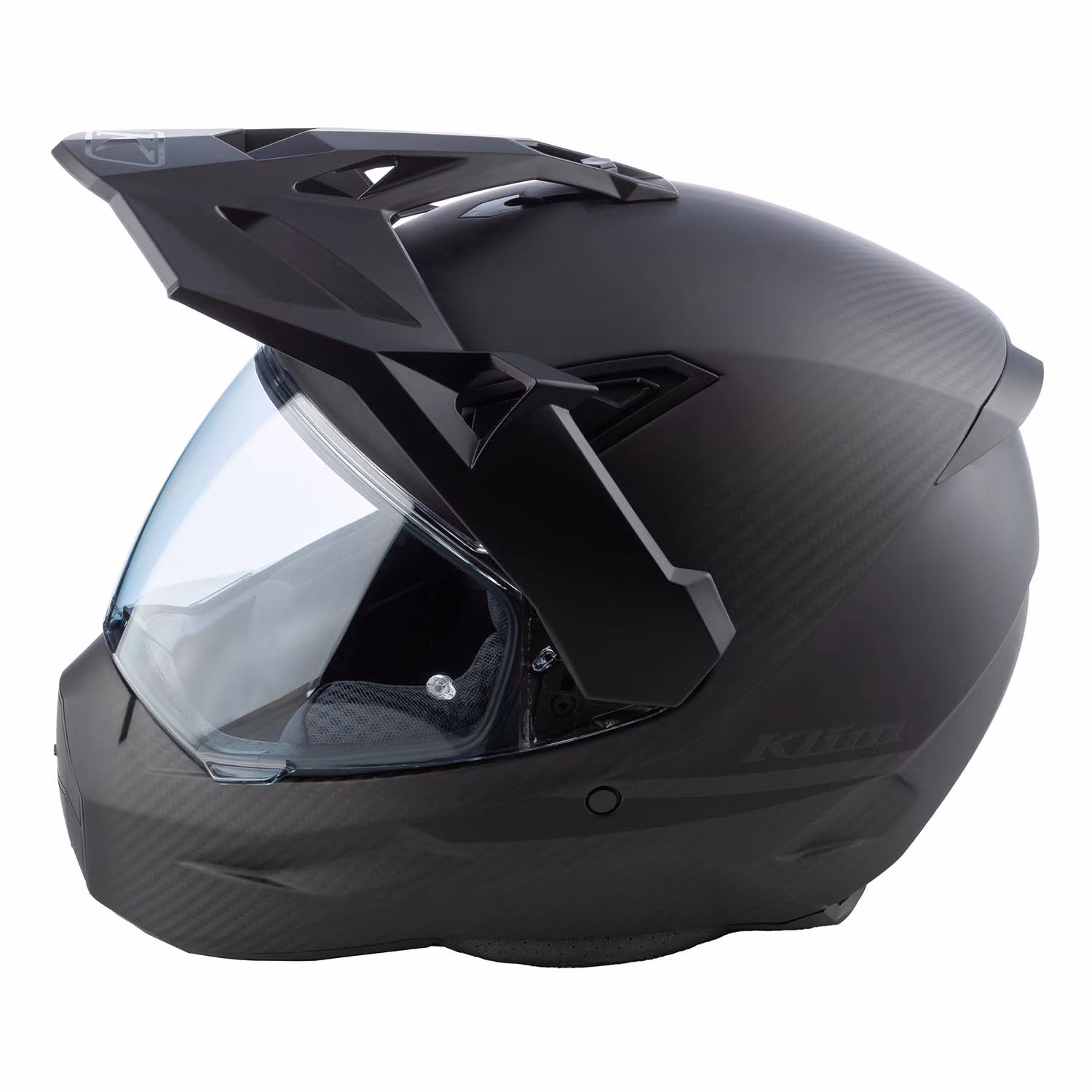

- Carbon fiber hand-laid outer shell
- Shell construction process reduces imperfections and excess weight

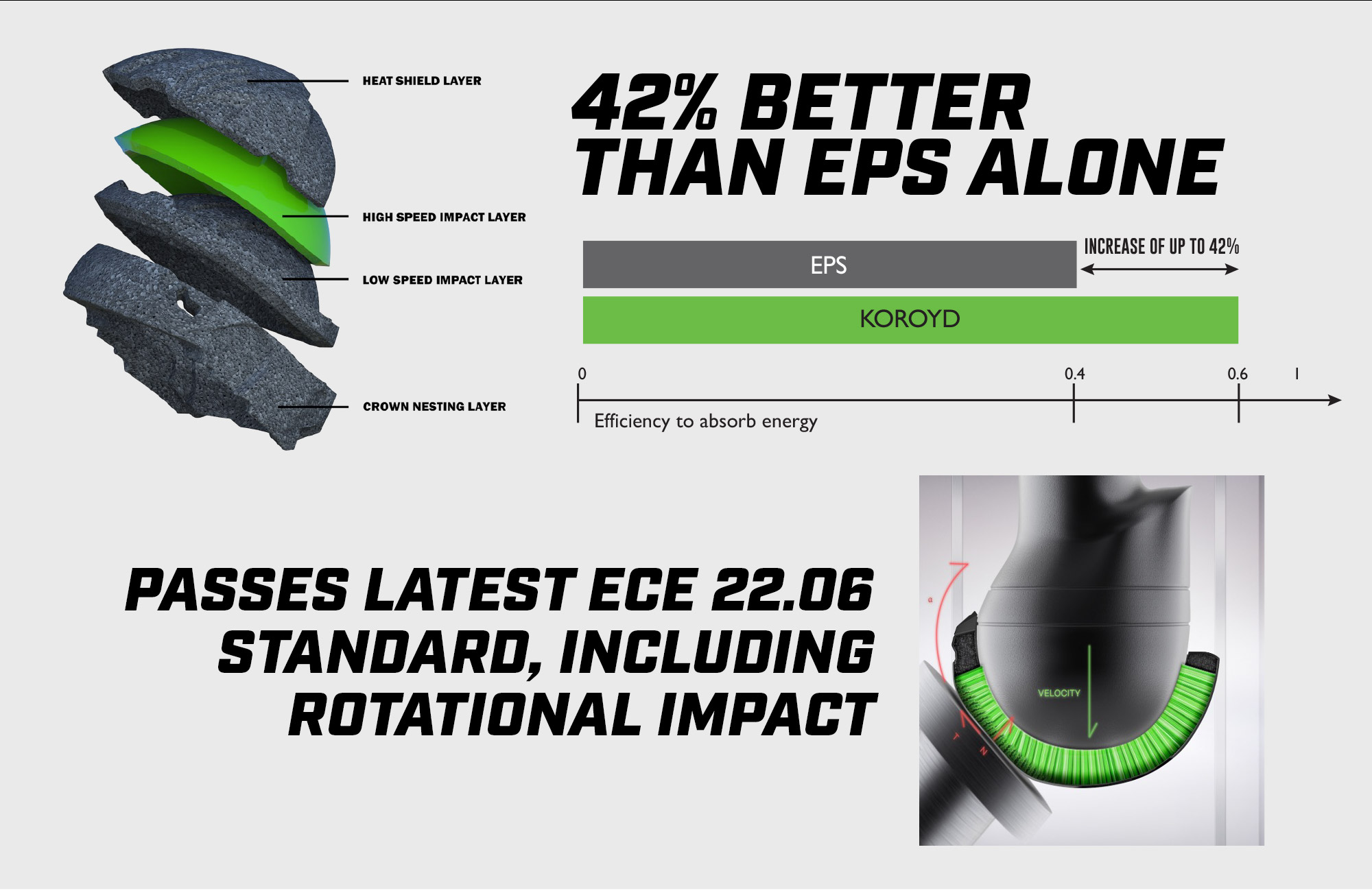

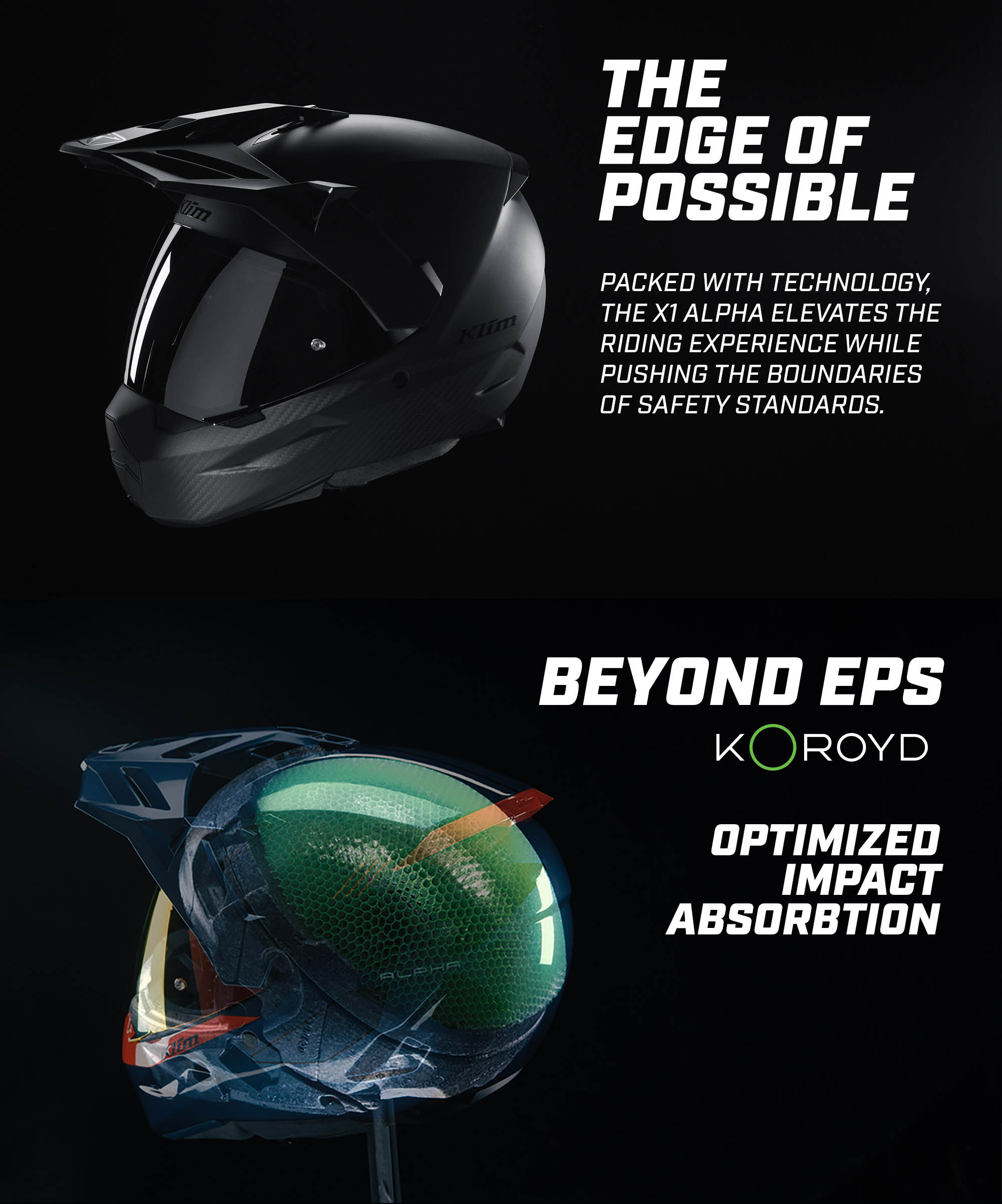

- KOROYD® + EPS shell construction optimizes impact protection and reduces heat absorption with direct ventilation through KOROYD® structure and EPS channeling
- KOROYD® structures crush homogeneously for better impact energy absorption

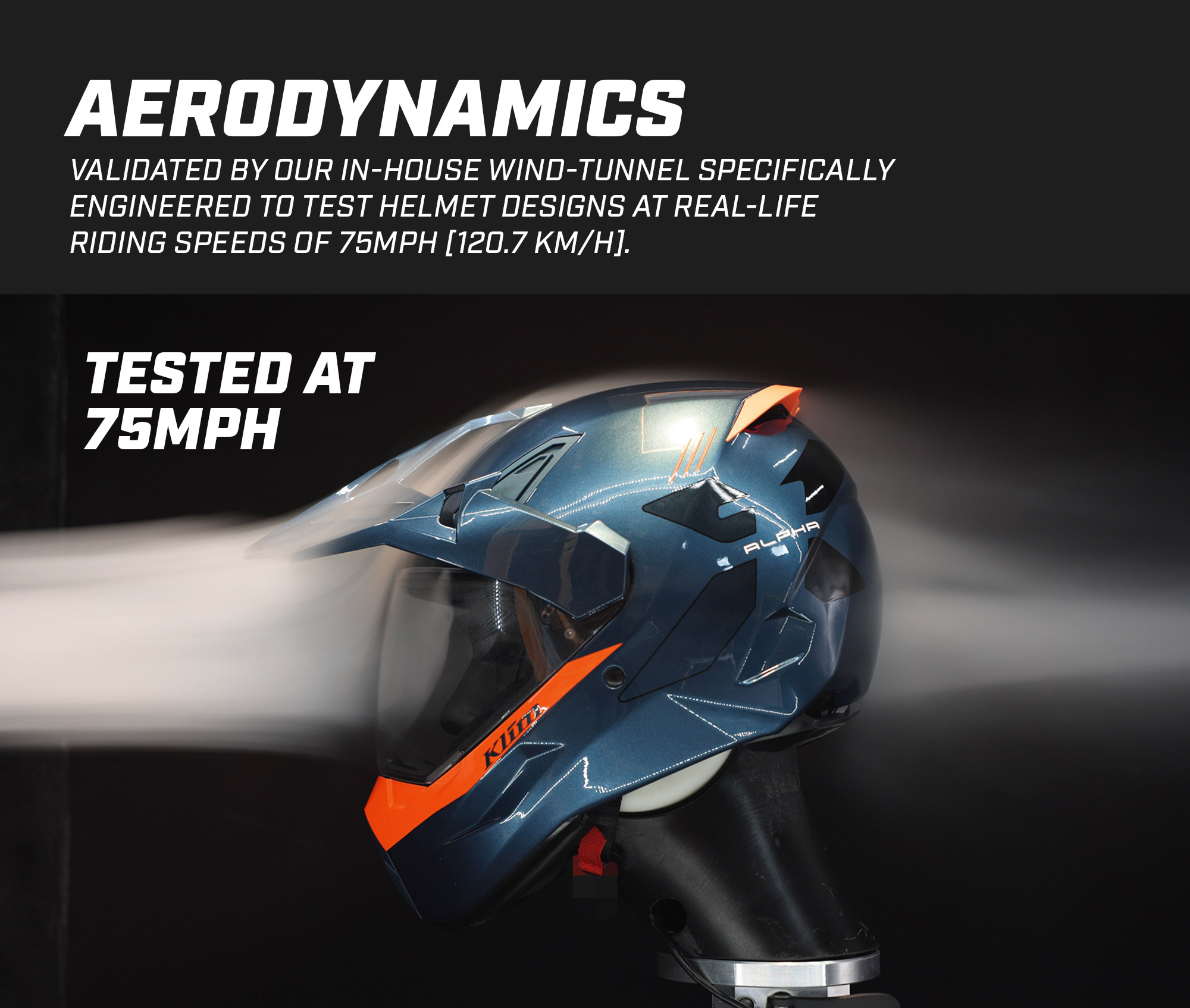

- Shell, peak visor, ventilation ports, gasketing and liner system optimized for best-in-class aerodynamics and reduction in wind noise and vibration

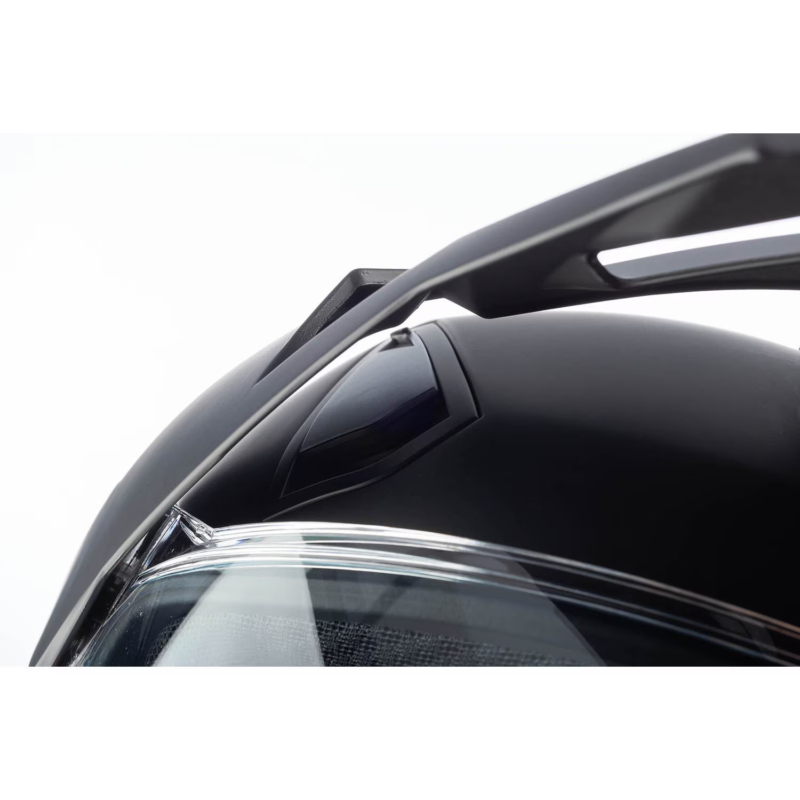

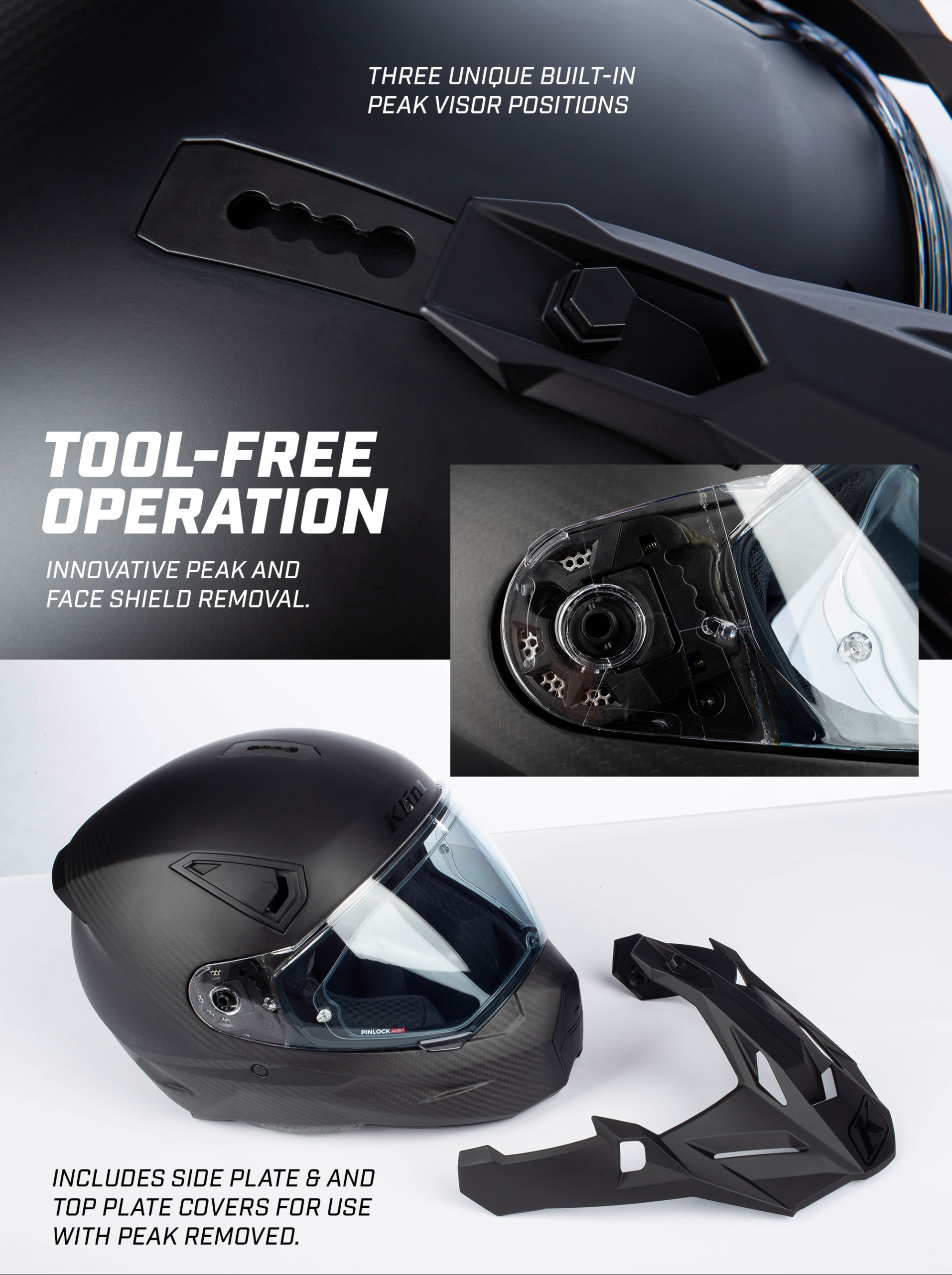

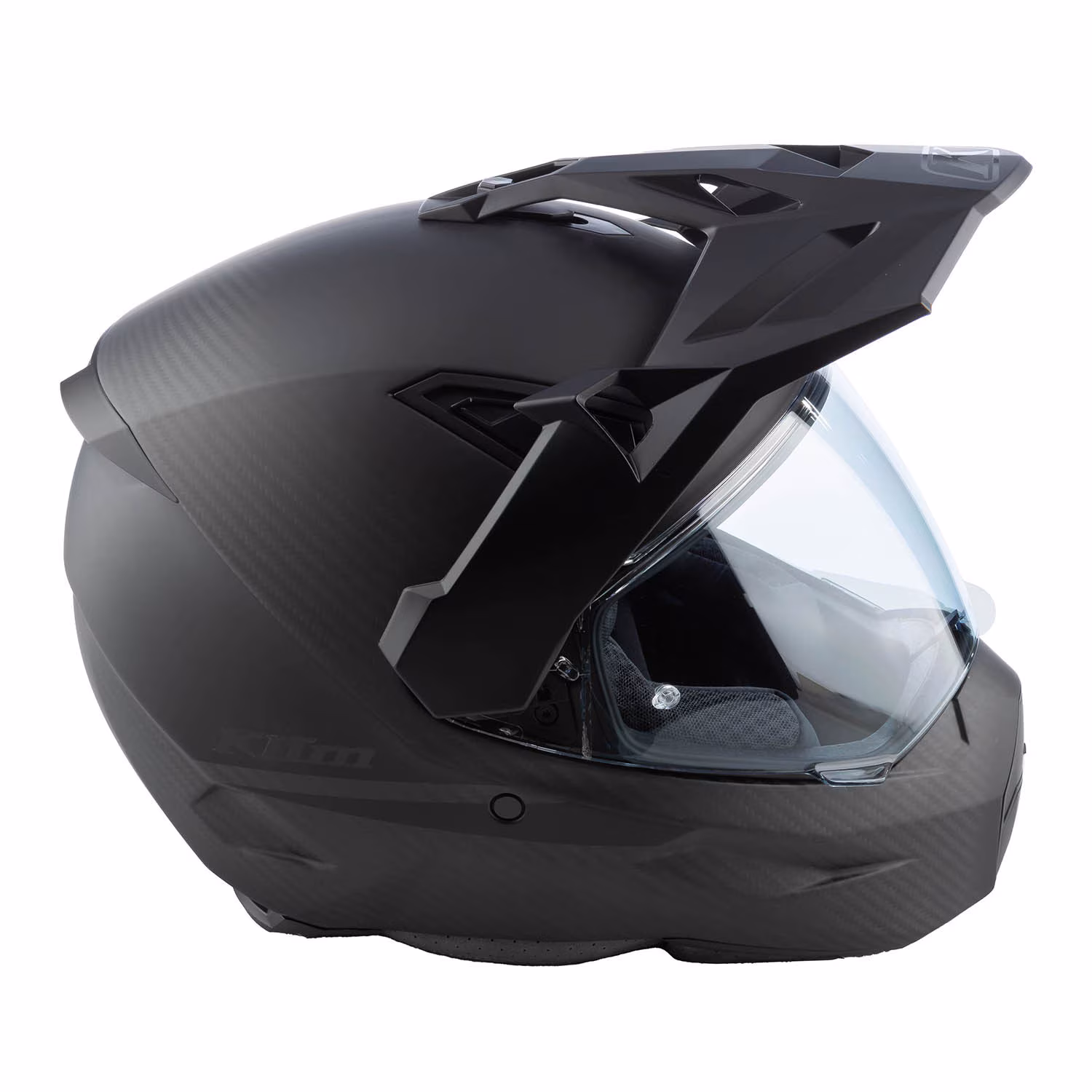

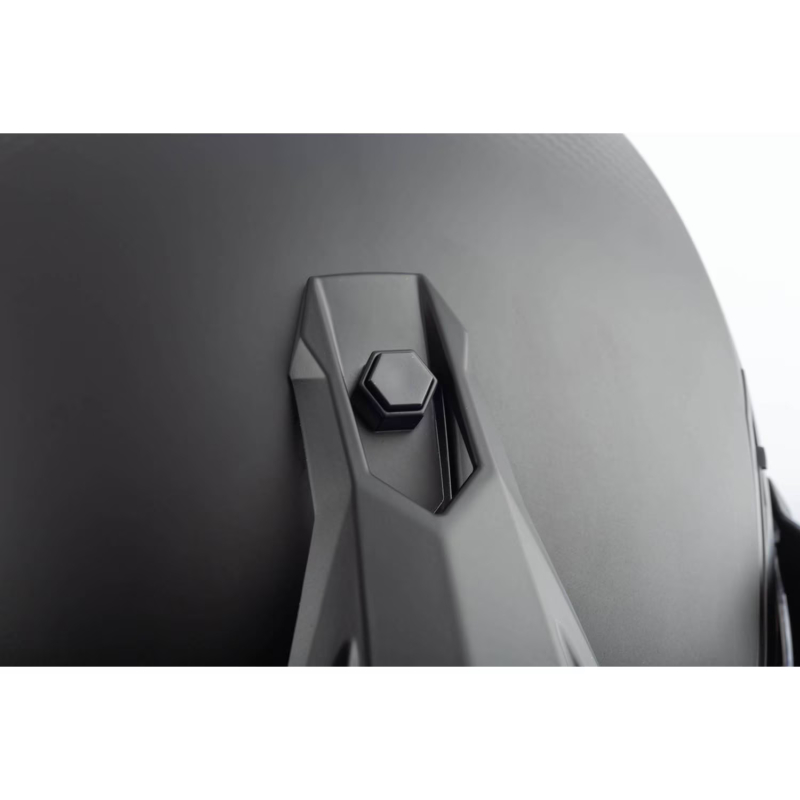

- Peak visor engineered for on-the-fly angle changes with tool-free adjustment, removal and reattachment

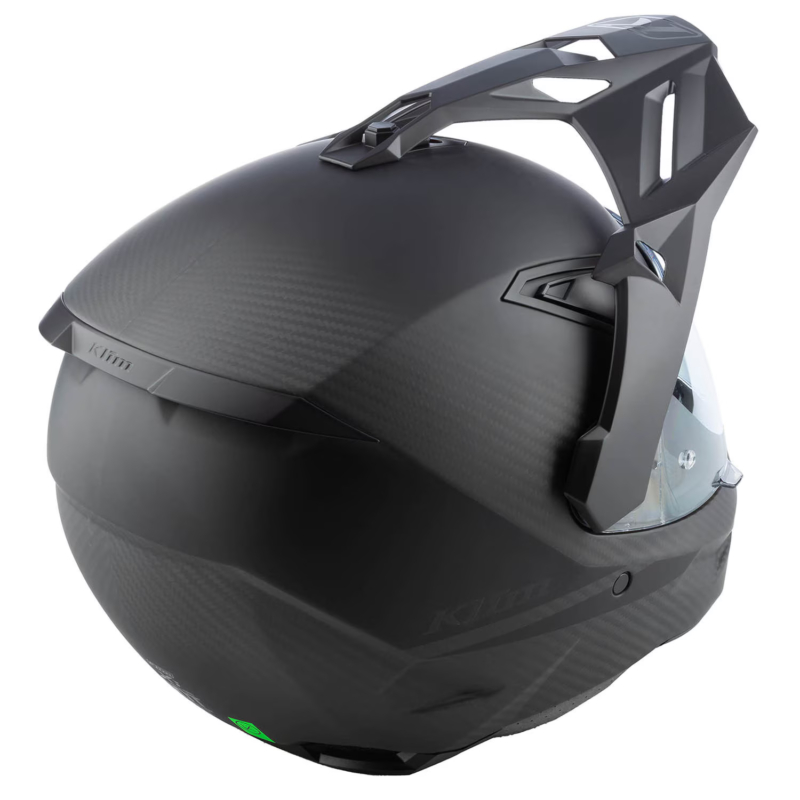

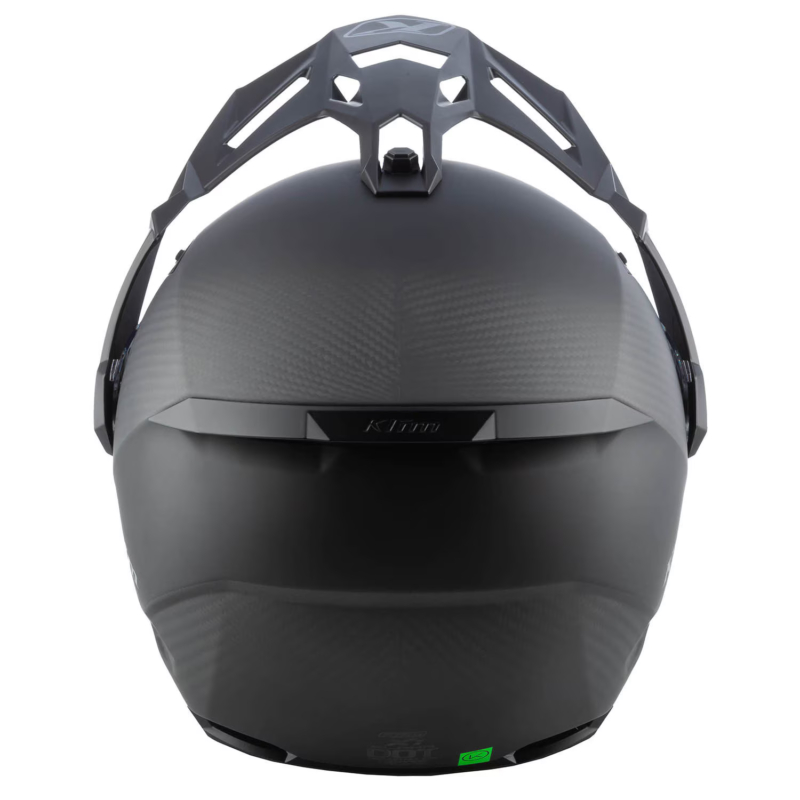

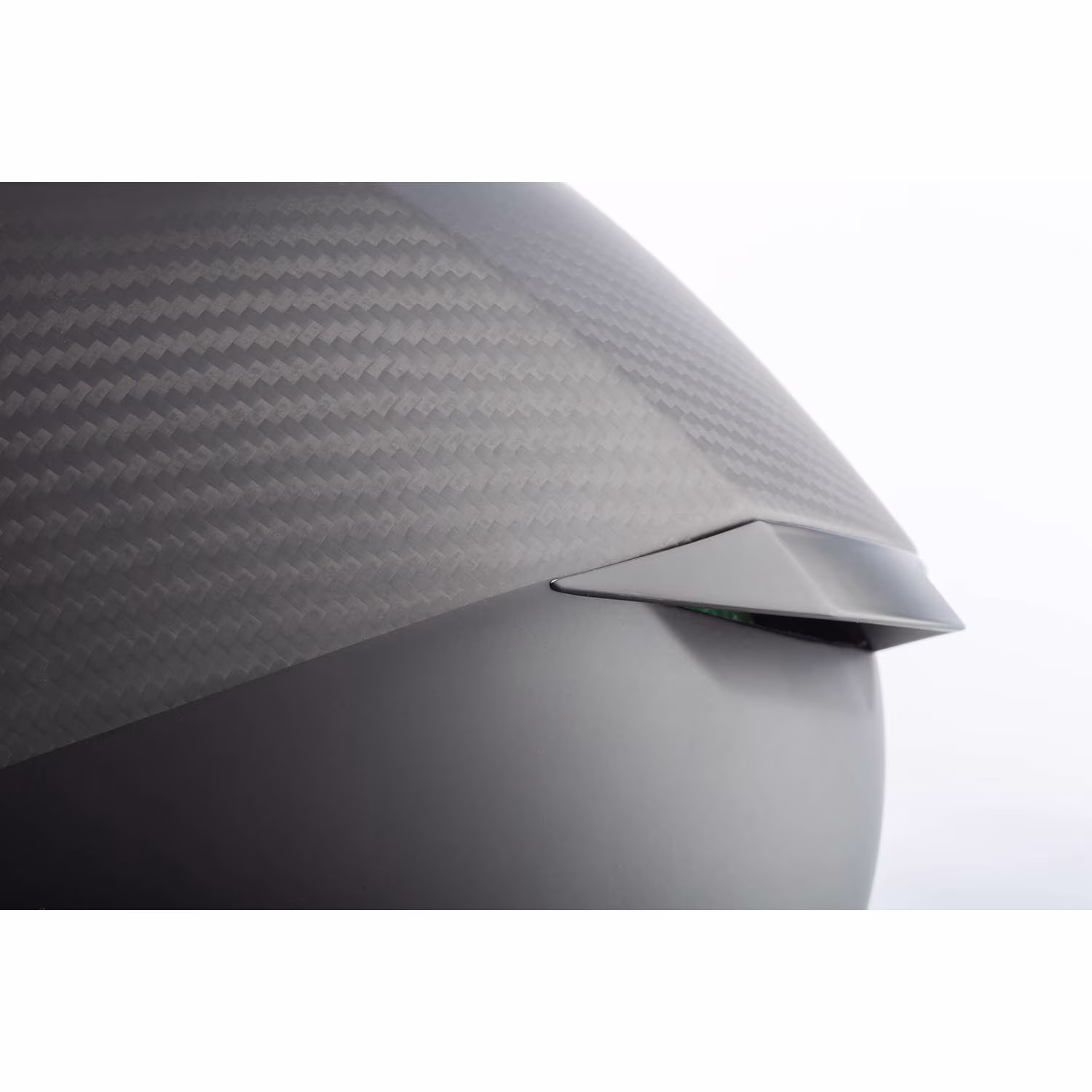

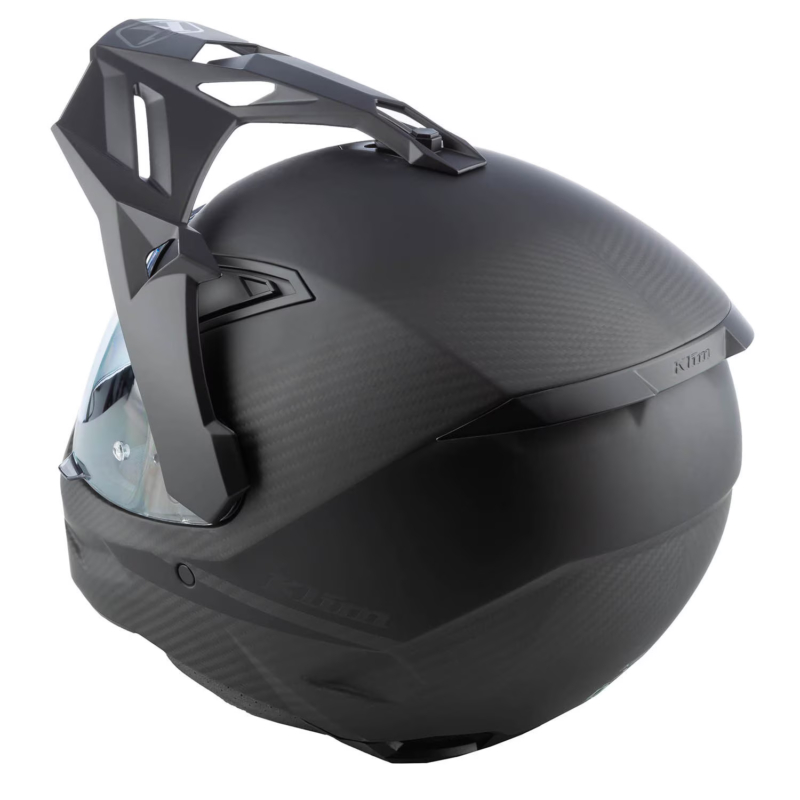

- Peak visor and rear spoiler designed to reduced drag, lift, and optimize directional-view control while riding at high speeds
- Titanium D-ring chin strap closure system
- Weight: 1550 g (size large)
OPTICS

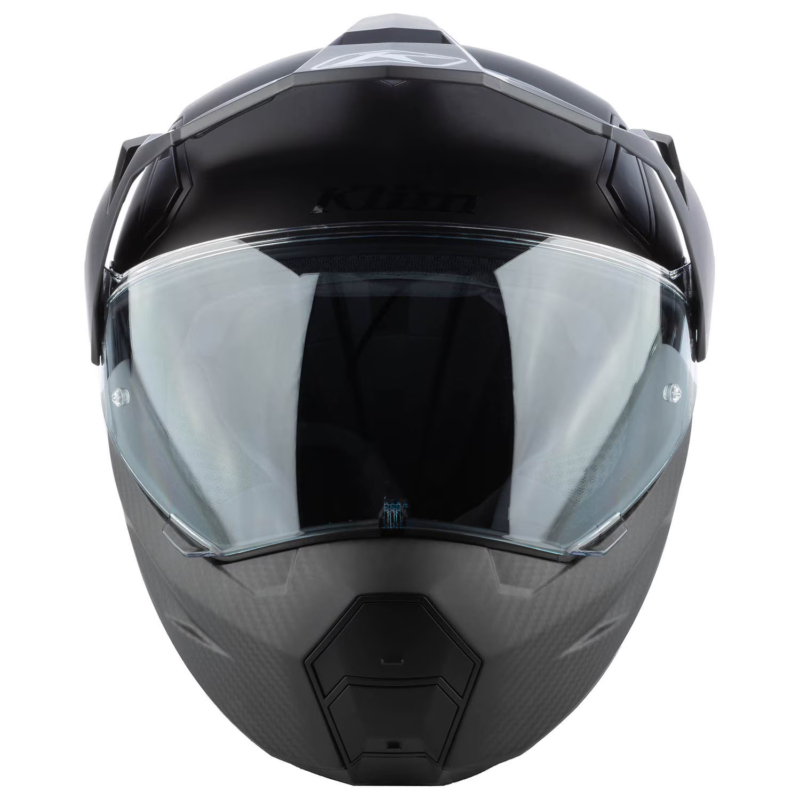

- Clear & photochromic face shields included
- Tool-free face shield removal is fast & easy

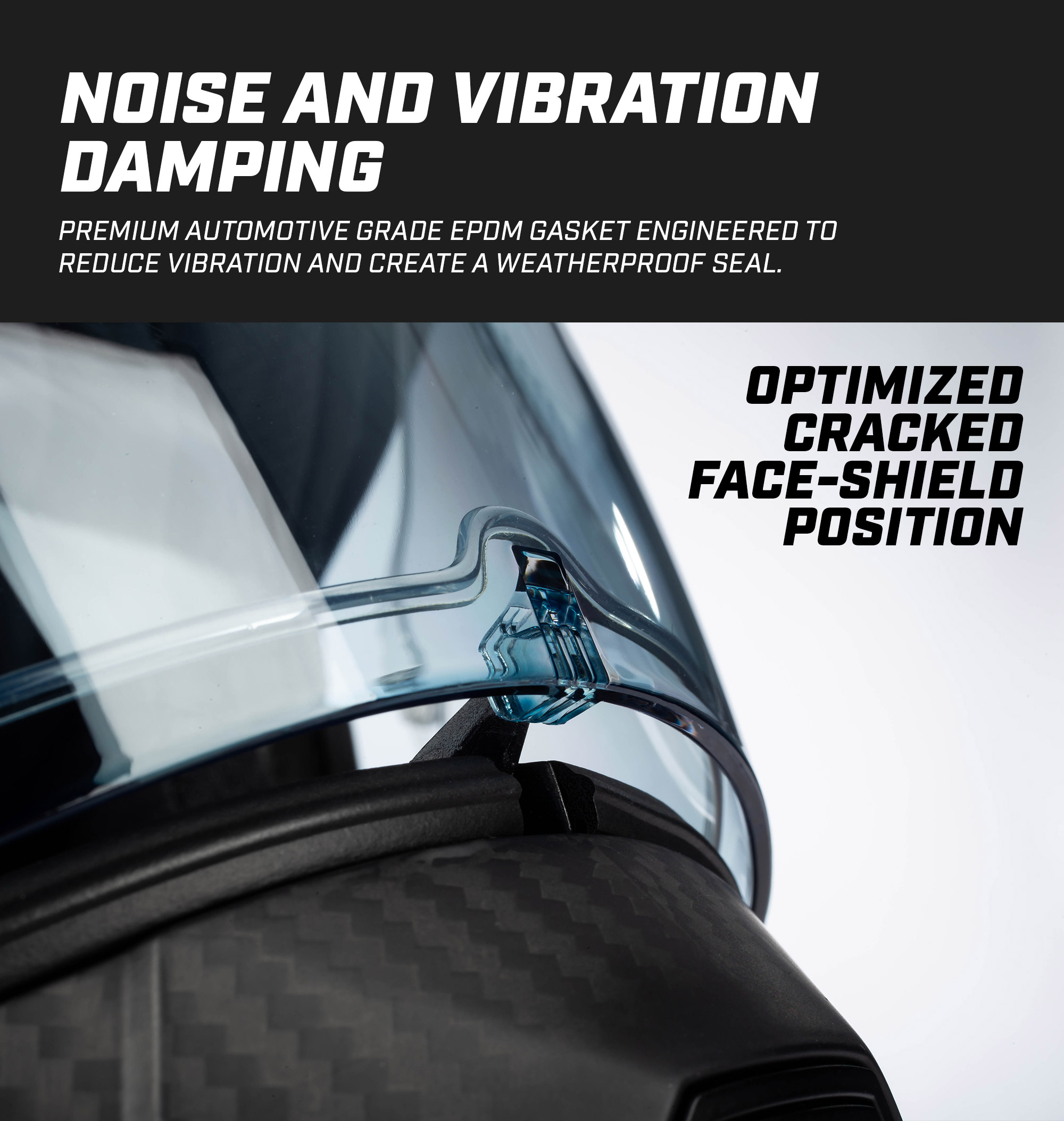

- Eye port gasket engineered to reduce vibration, noise and increase resistance to harsh weather conditions

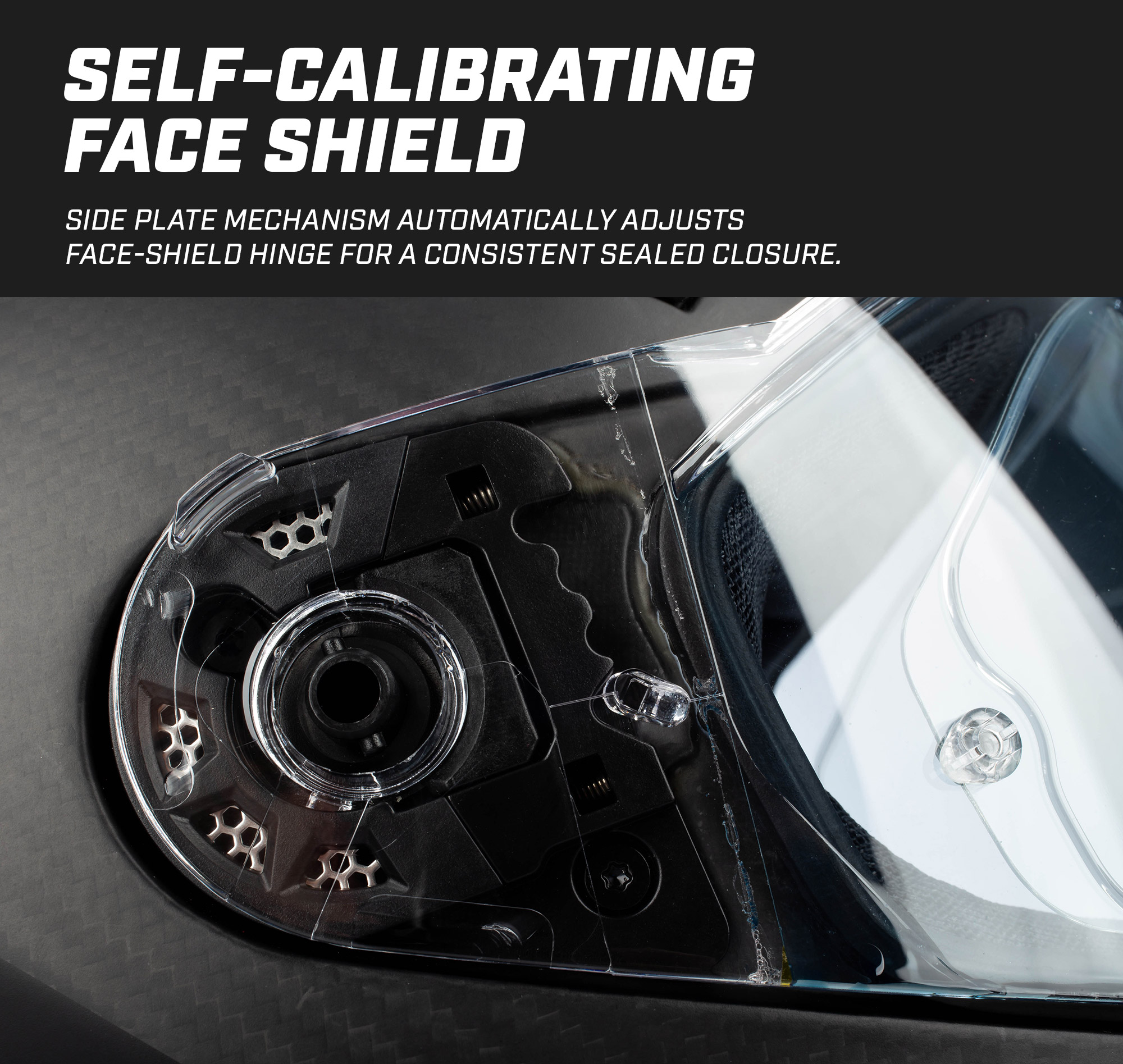

- Face shield side plate mechanisms engineered to self-calibrate for tight sealing
- Included PINLOCK® anti-fog lens insert optimized for X1 Alpha maintains optical class 1 clarity, huge FOV
- Photochromic face shield quickly transitions from dark to light

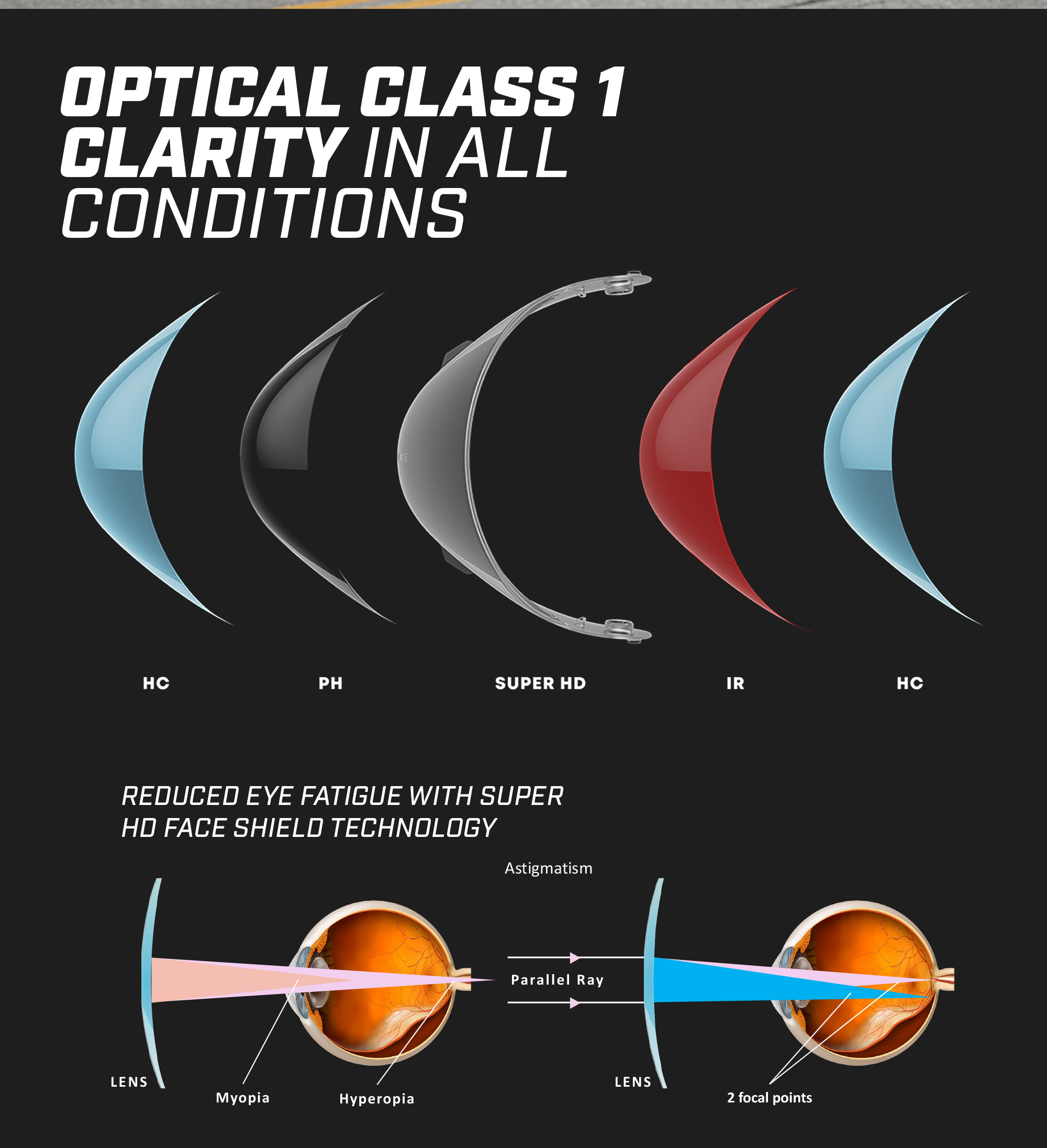

- Both face shields have optical Class 1 clarity
- Both face shields are optically correct, multi-thickness for minimized distortion
- Both face shields offer HD vision
- Both face shields have UV400 protection
- Tinted & Photochromic face shields have infrared shielding for greatly reduced heat buildup
- Helmet is goggles-compatible

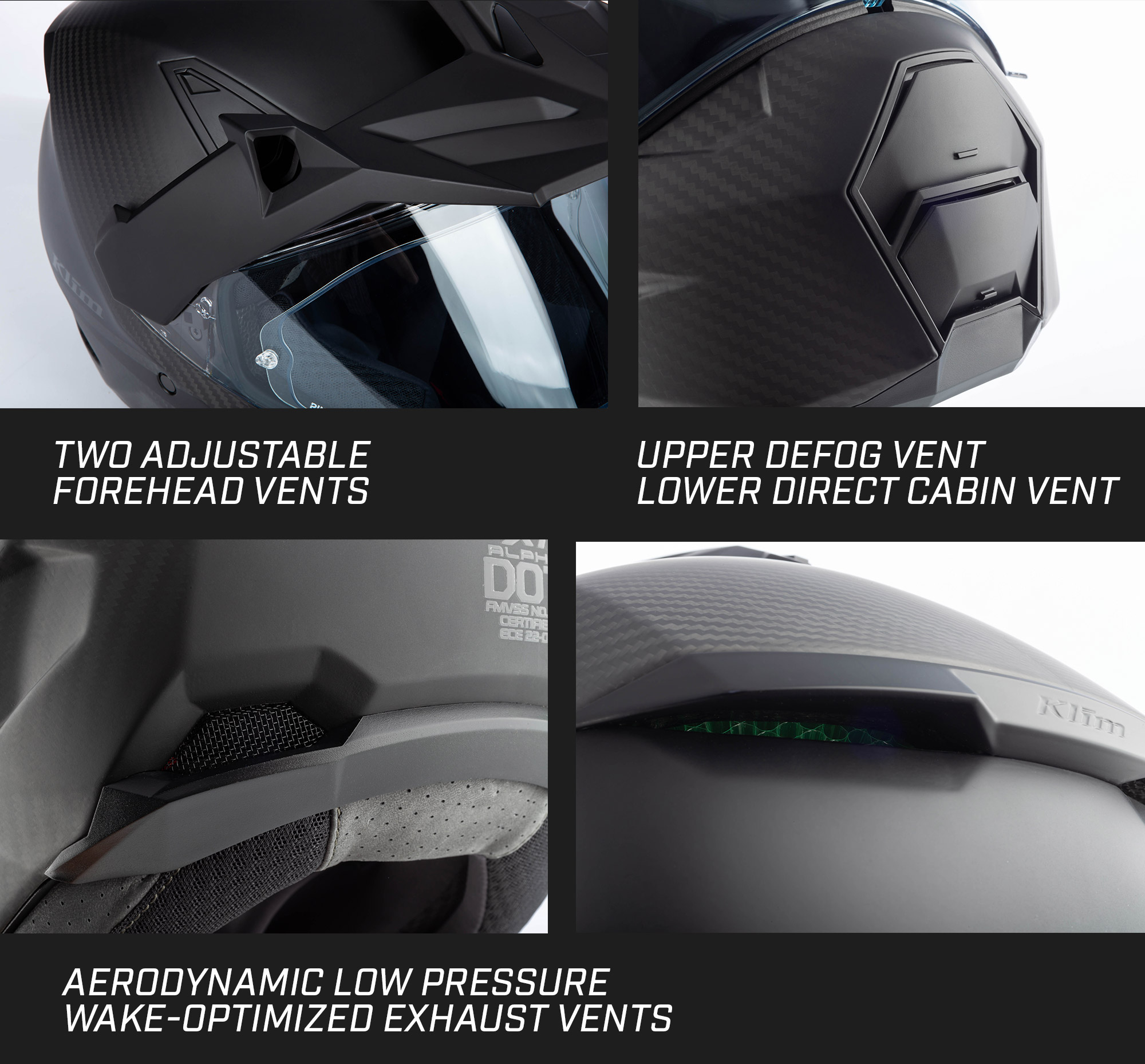

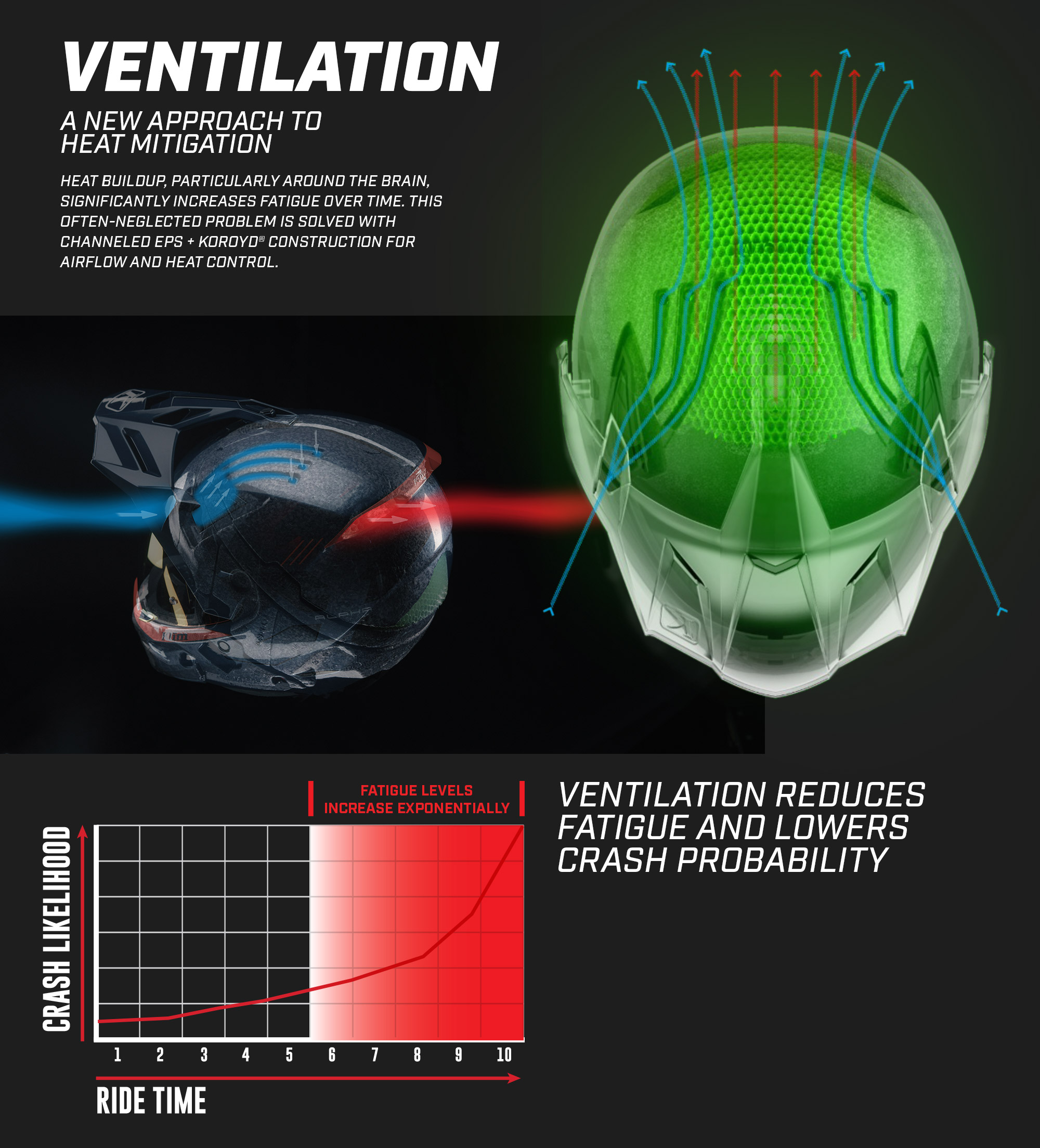

VENTILATION

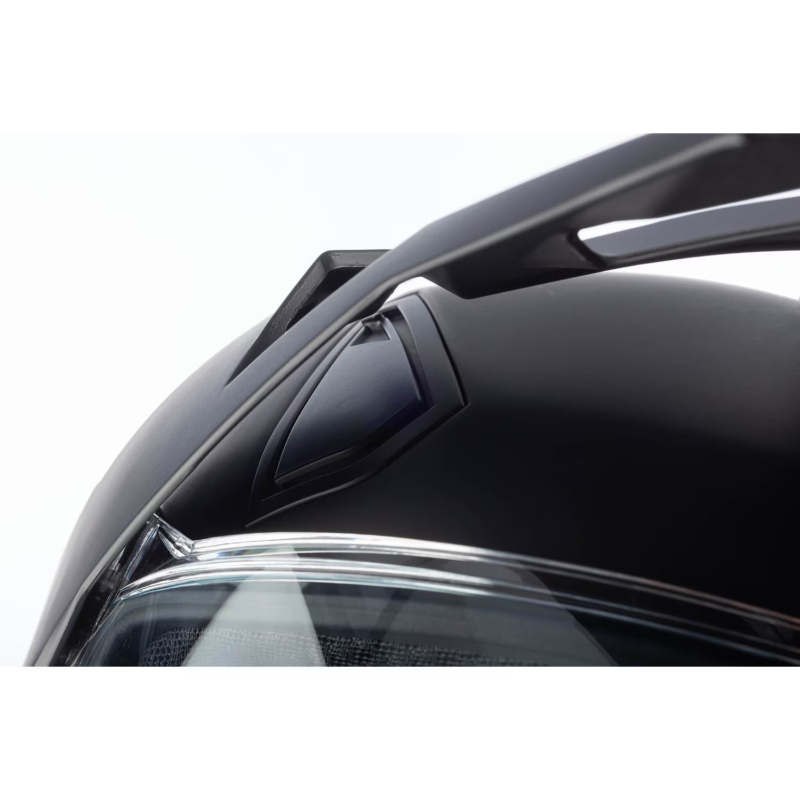

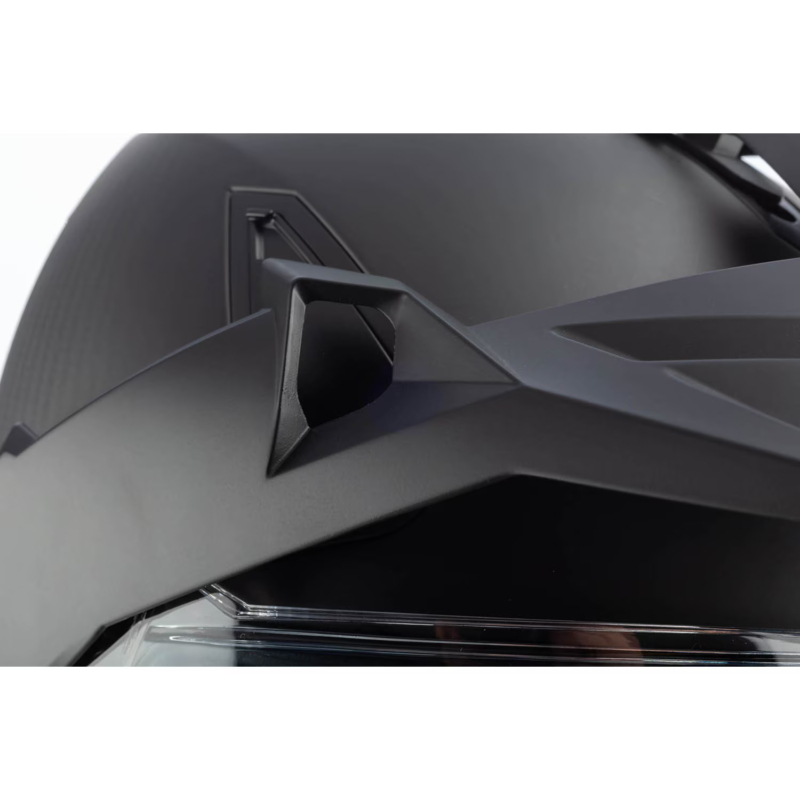

- 2 adjustable, water-resistant forehead intake vents

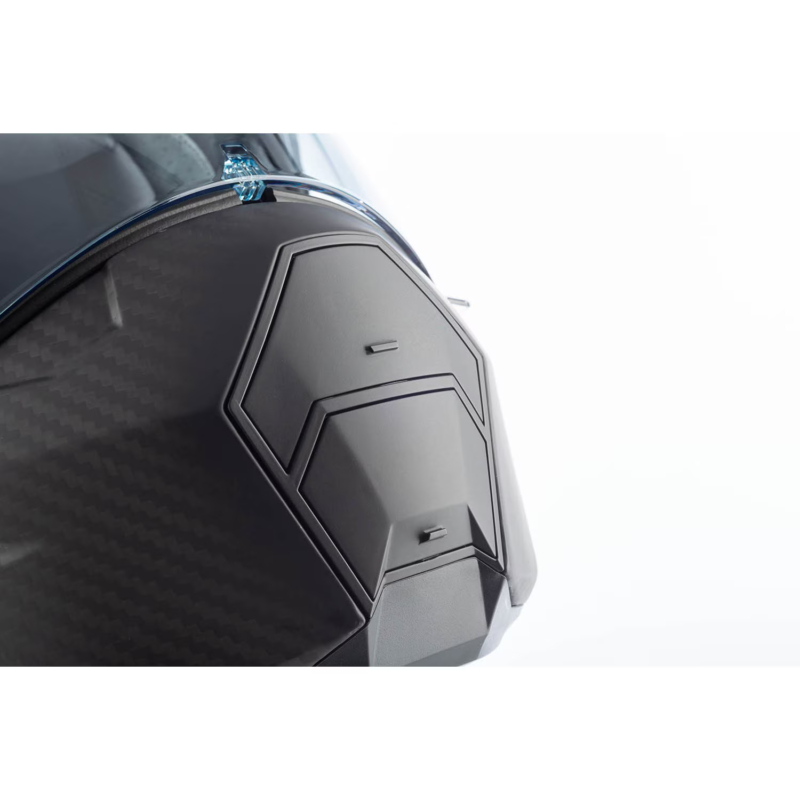

- 1 adjustable upper chin guard direct diffuser vent for face shield
- 1 adjustable lower chin guard direct vent for cabin interior

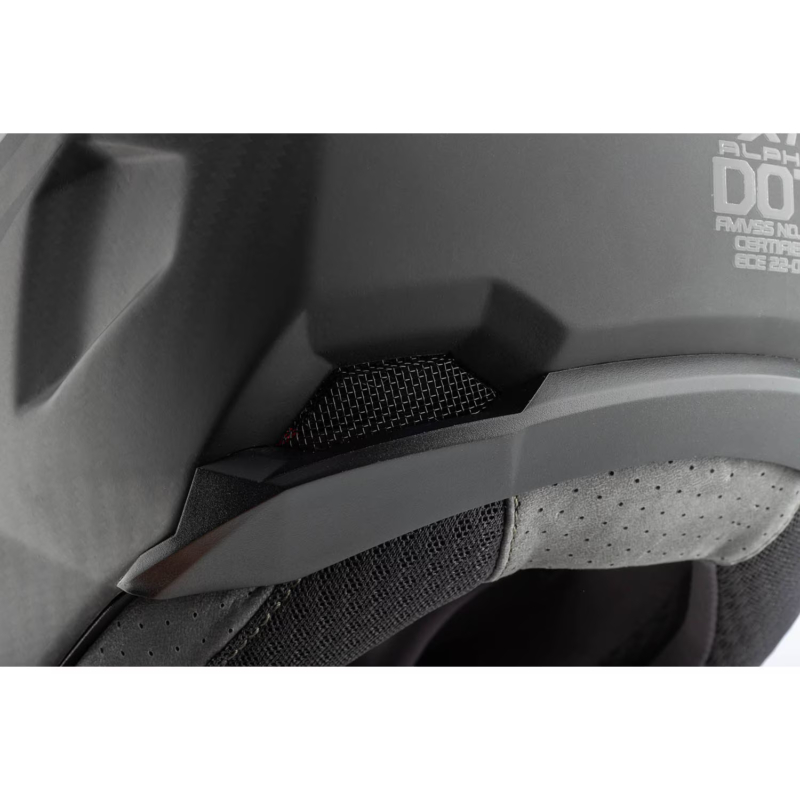

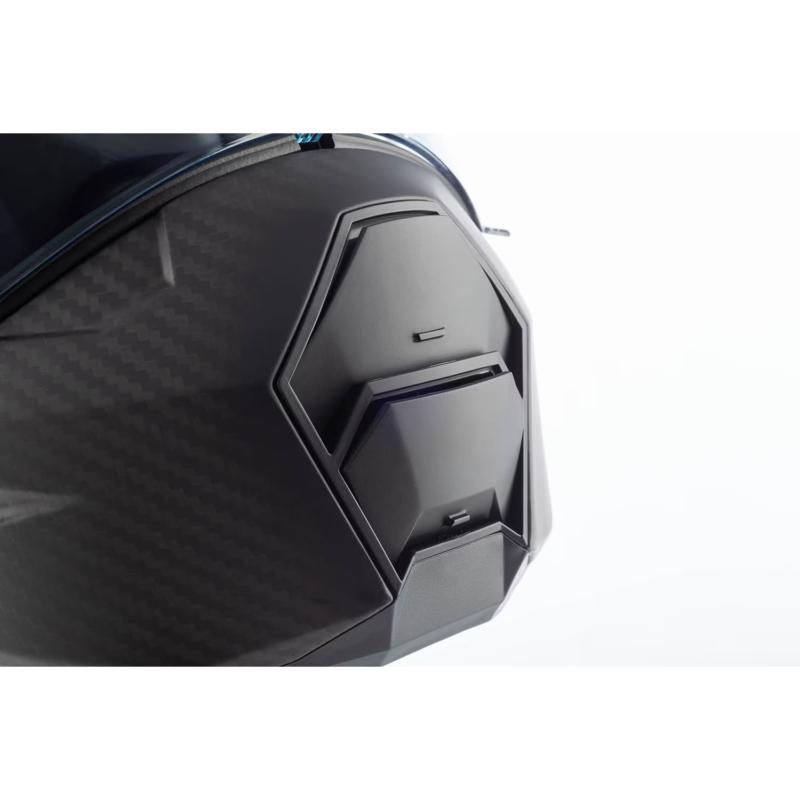

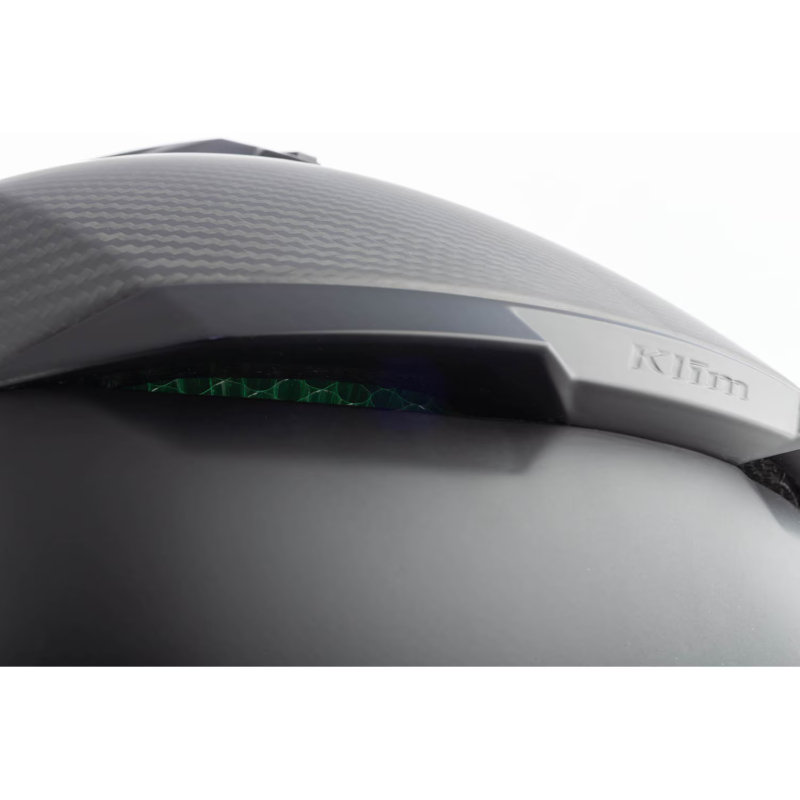

- 4 Exhaust vents
FIT/COMFORT
- 4-ride-mode versatility: ADV, Dual-Sport, Off-Road, Street

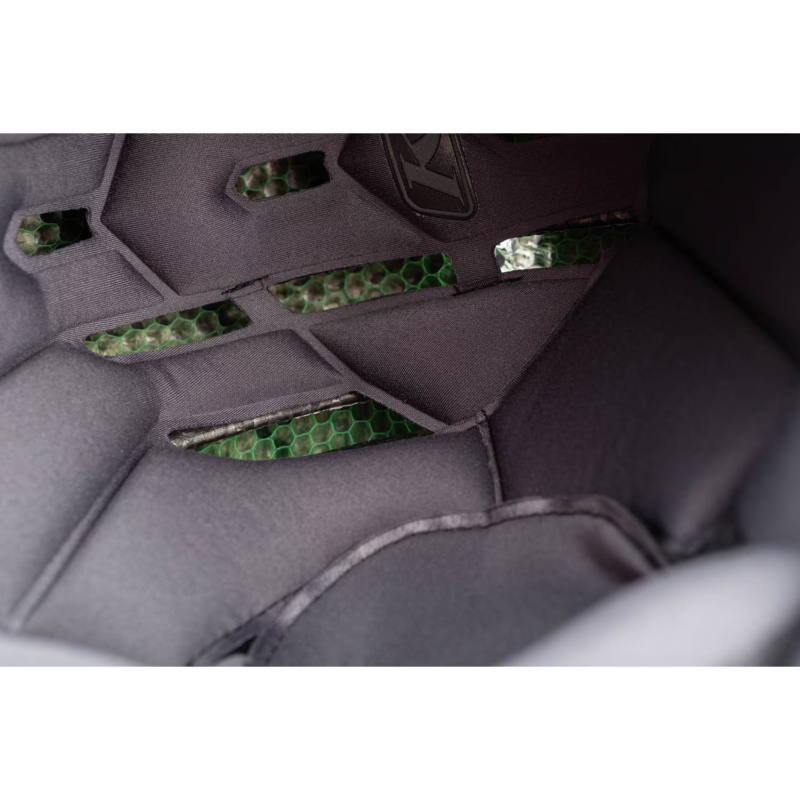

- Channeled EPS + KOROYD® construction for airflow and heat control
- EPS + KOROYD® layering construction reduces heat transfer from shell

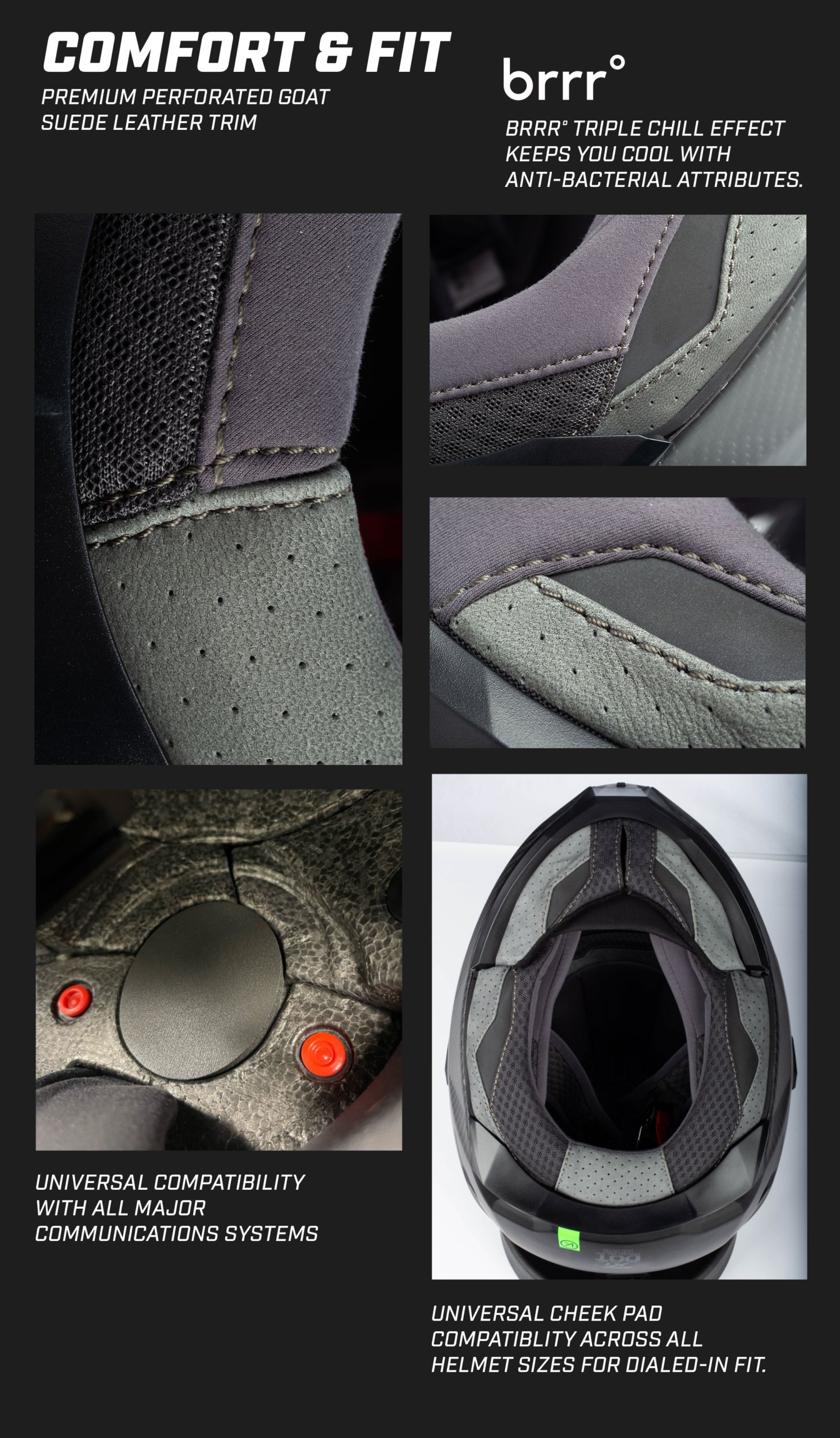

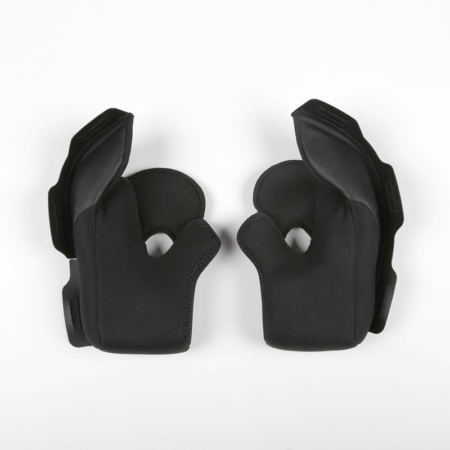

- Removable and washable moisture-wicking antibacterial premium Brrr° Pro Cooling fabric lined cheek pads and crown liner
- Interchangeable/replaceable cheek pads and crown liner thicknesses within sizes
- Premium perforated goat leather trim on chin skirt with elastic gusset for comfortable on/off
- Chin skirt reduces buffeting

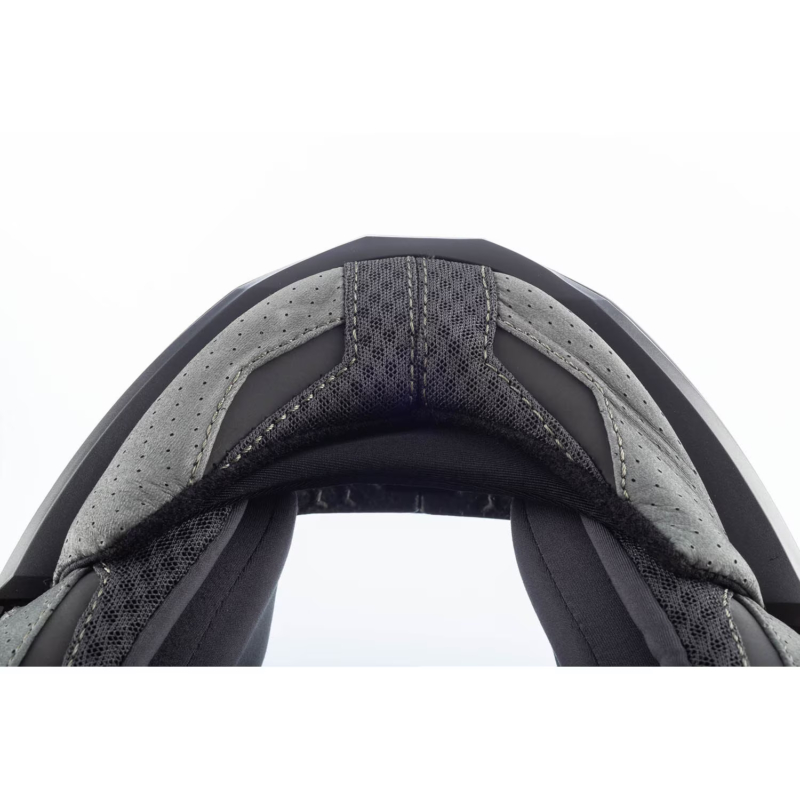

- Premium perforated goat leather and spacer mesh on neck roll for comfort, reduced buffeting
- 3 shell sizes for optimal fit (XS-M, L, XL-3XL)
- 5 EPS sizes for optimal fit (XS-S, M, L, XL, 2X-3X)
- Recessed ear pockets for comm system speakers
- Weight: 1550 g (size large)
SIZE CHART
| HEAD CIRCUMFERENCE (cm) | 53-54 | 55-56 | 57-58 | 59-60 | 61-62 | 63-64 | 65-66 | |
| HELMET SIZE | XS | S | M | L | XL | 2XL | 3XL | |
| SHELL SIZE | M | L | XL | |||||
| EPS SIZE | S | M | L | XL | 3XL | |||
| COMFORT LINER* | XS | S | M | L | XL | 2XL | 3XL | |
| CHEEK PAD SIZES** | XS – 40mm | S – 35mm | M – 40mm | L – 35mm | XL – 35mm | 2XL -30mm | 3XL -25mm | |
* Comfort liners are color coded to the EPS that they fit into.
**ALL cheekpads are interchangable between all sizes:
- REDUCTION SIZE (BELOW XS): 45mm
- EXPANSION SIZE (ABOVE 3XL): 20mm
