Description
Rotopax™ 1.75 & 1 Gallon fuel containers will also fit but we DO NOT recommend you mount fuel containers on the exhaust side of the bike.

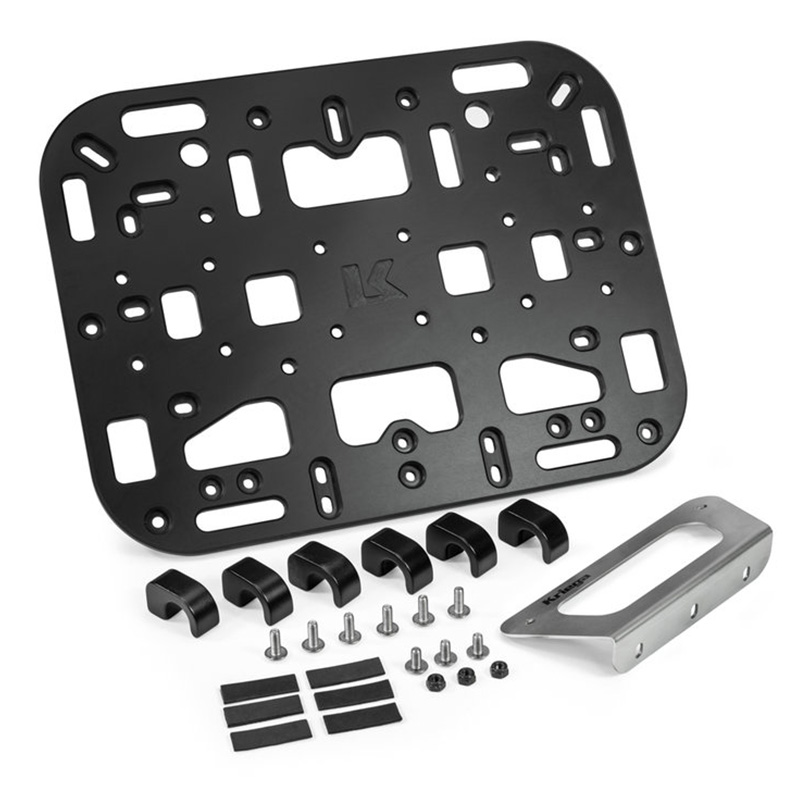

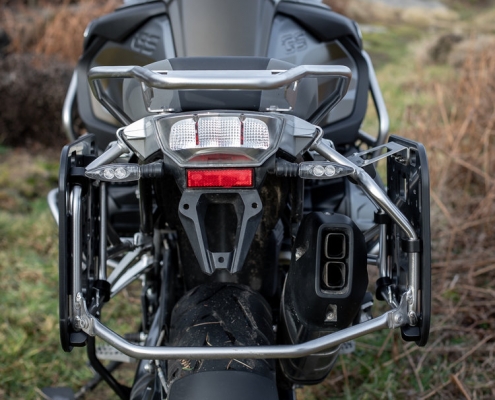

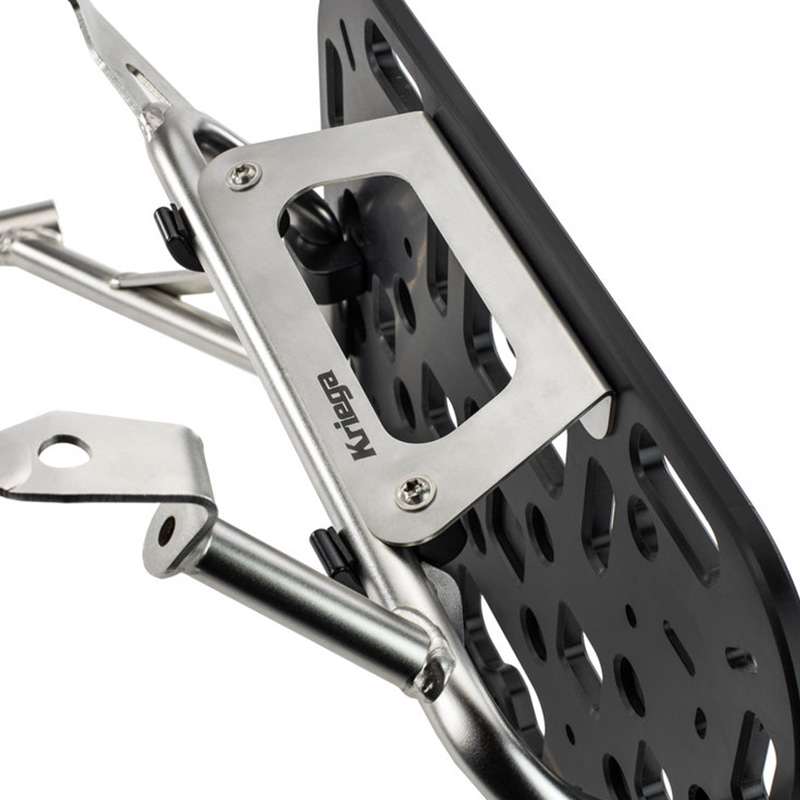

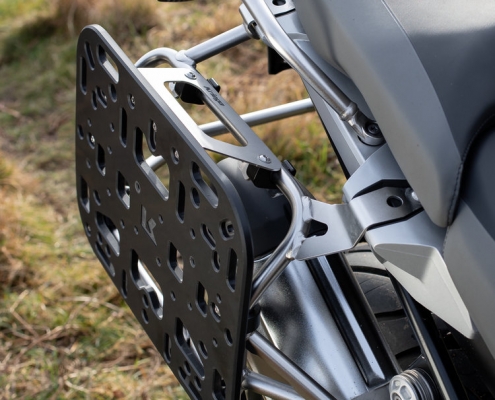

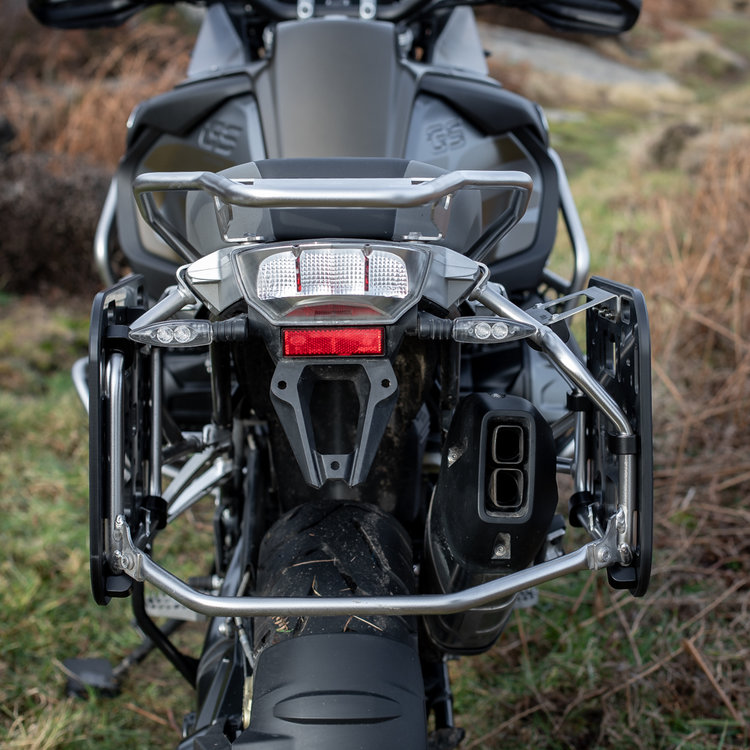

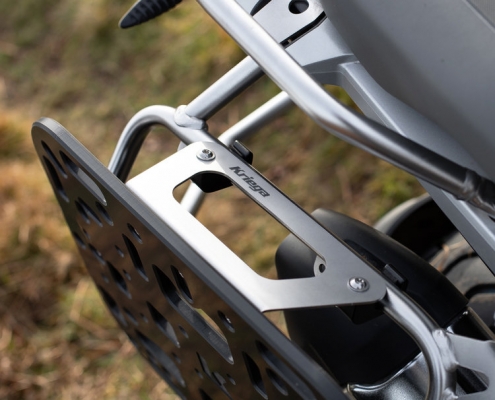

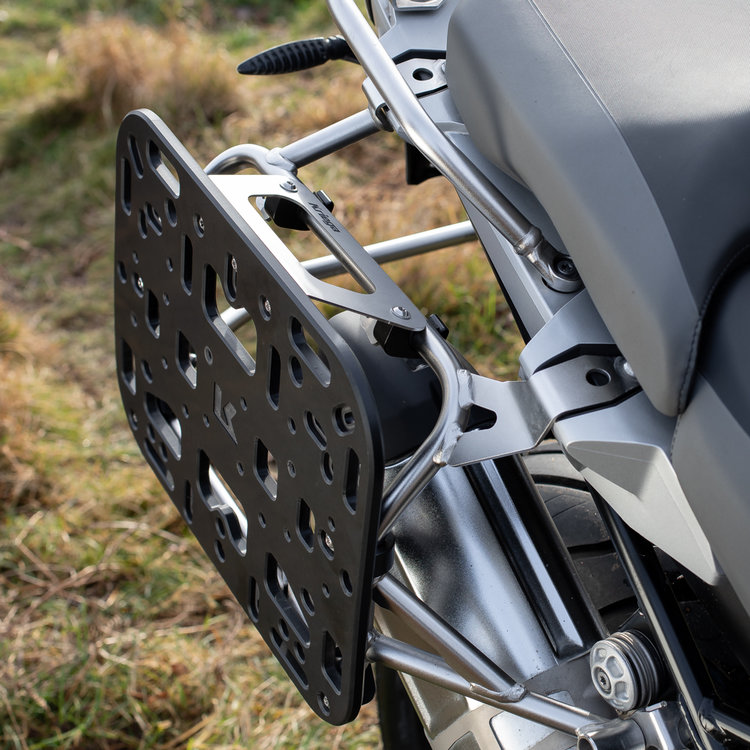

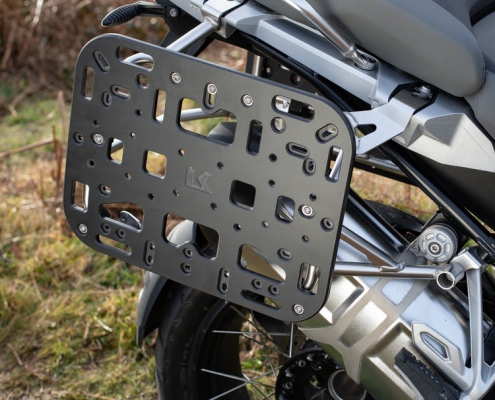

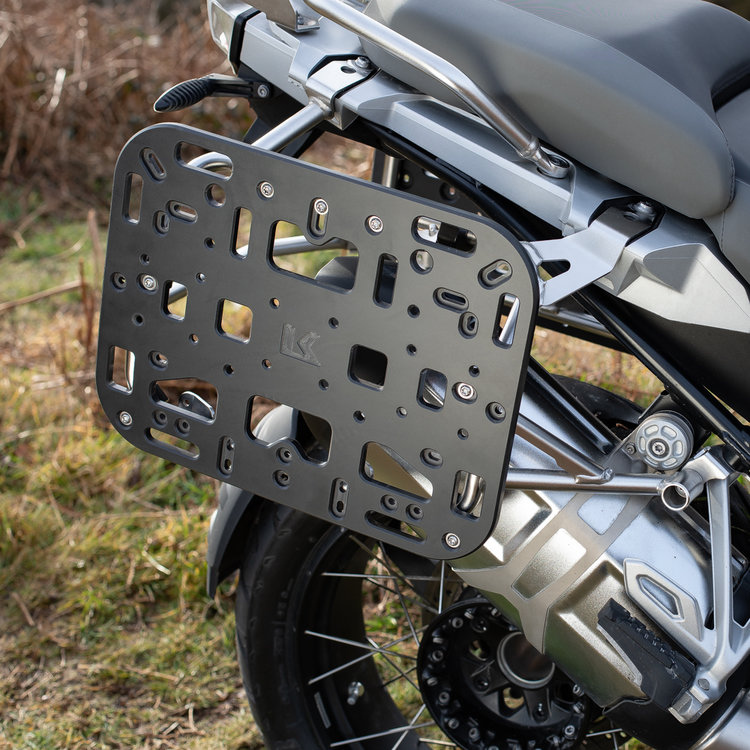

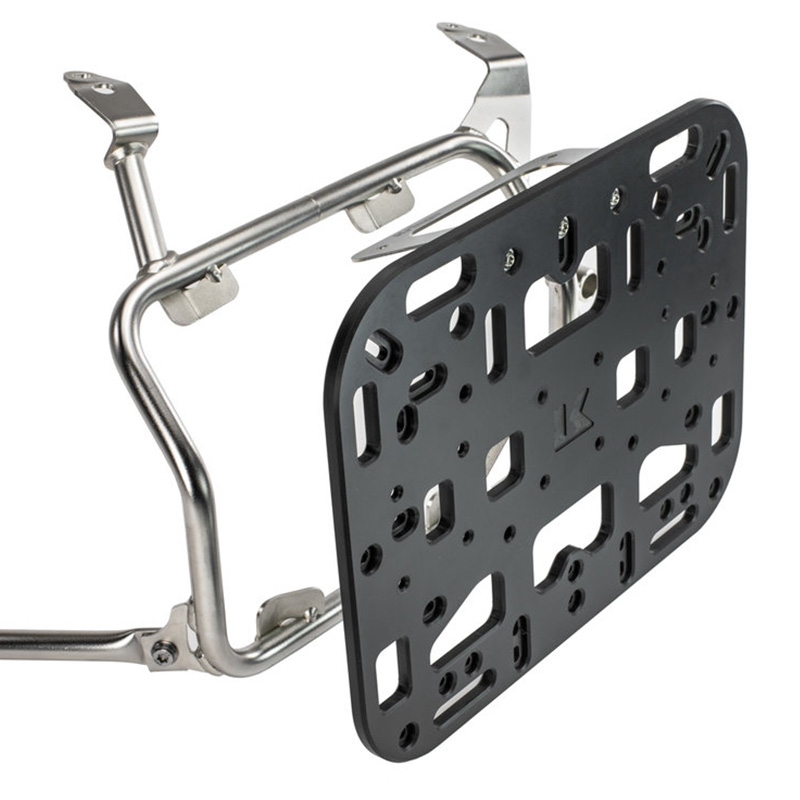

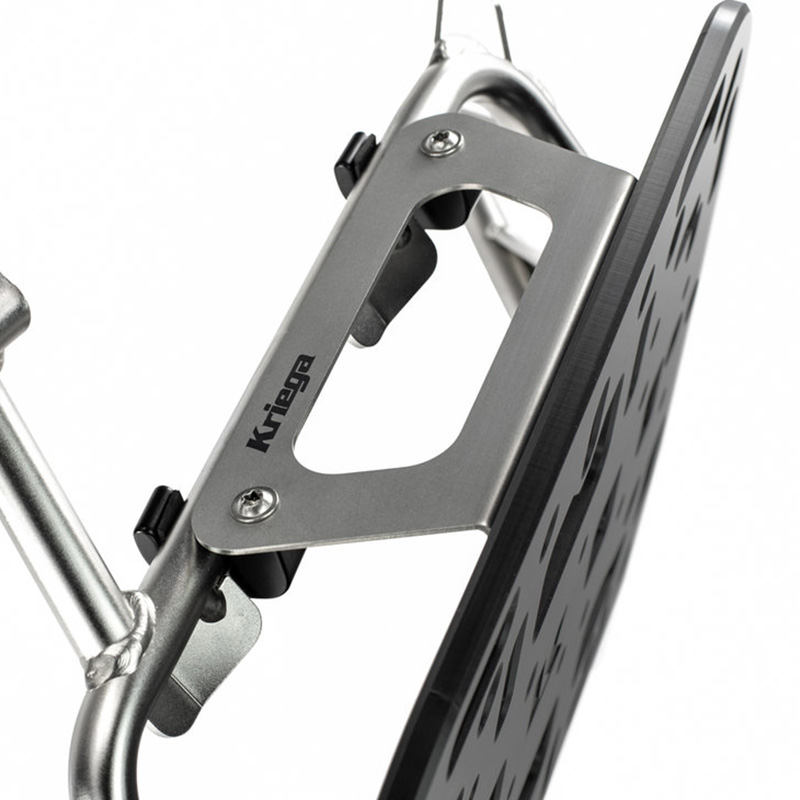

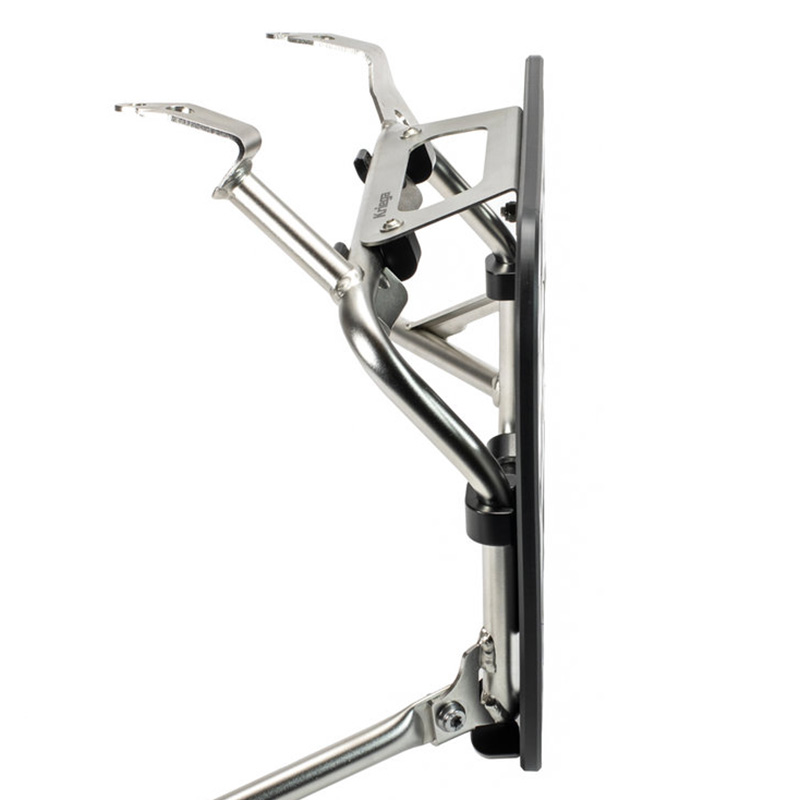

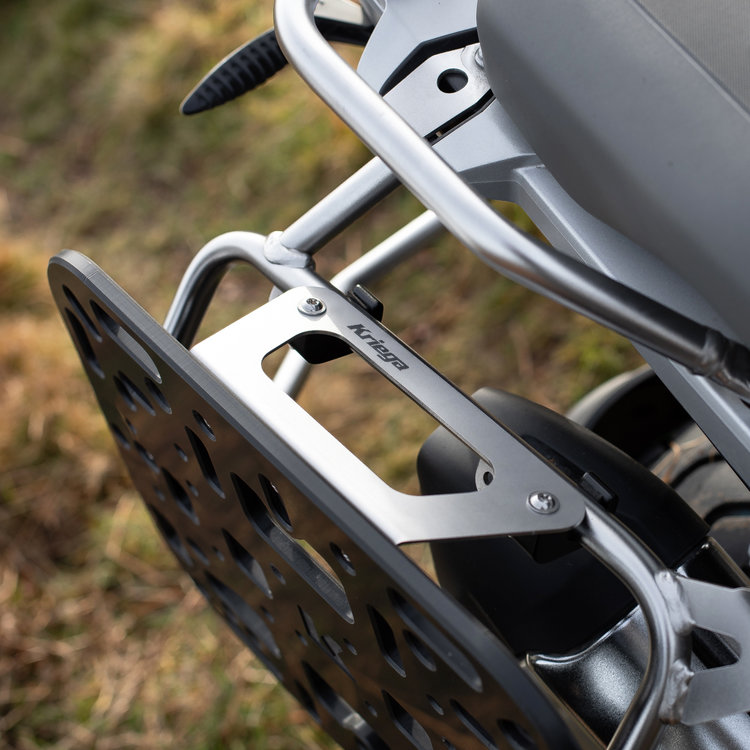

THE ADAPTOR is laser cut stainless steel which fixes to the OS-PLATFORM with 3 bolts and Nyloc nuts. It clamps to the top of the BMW frame using 2 of the aircraft grade aluminium clamps. The remaining 4 clamps fix the OS-PLATFORM directly to the frame, giving a very strong and stable base to add an OS-Pannier, OS-Adventure Packs or Rotopax™ fuel or water contains.
The BMW pannier frame profile on the opposite side to the exhaust is flat and therefore a standard OS-PLATFORM 16mm – 20mm tube fit, will easily mount to this side.
DOWNLOAD FITTING GUIDE .PDF HERE
TECH SPECS
PLATFORM
• 10mm Nylon-6 construction.
• CNC machined both sides.
• Aircraft grade black anodized clamps.
ADAPTOR
• Laser cut stainless steel construction
• Laser etched Kriega logo
• Includes all fittings
PLATFORM DIMENSIONS
390(w) x 300(h) x 10(d)mm
15.3″(w) x 11.8″(h) x 0.3″(d)
TOTAL WEIGHT
1450g / 51 oz
