Description
Technical Specifications

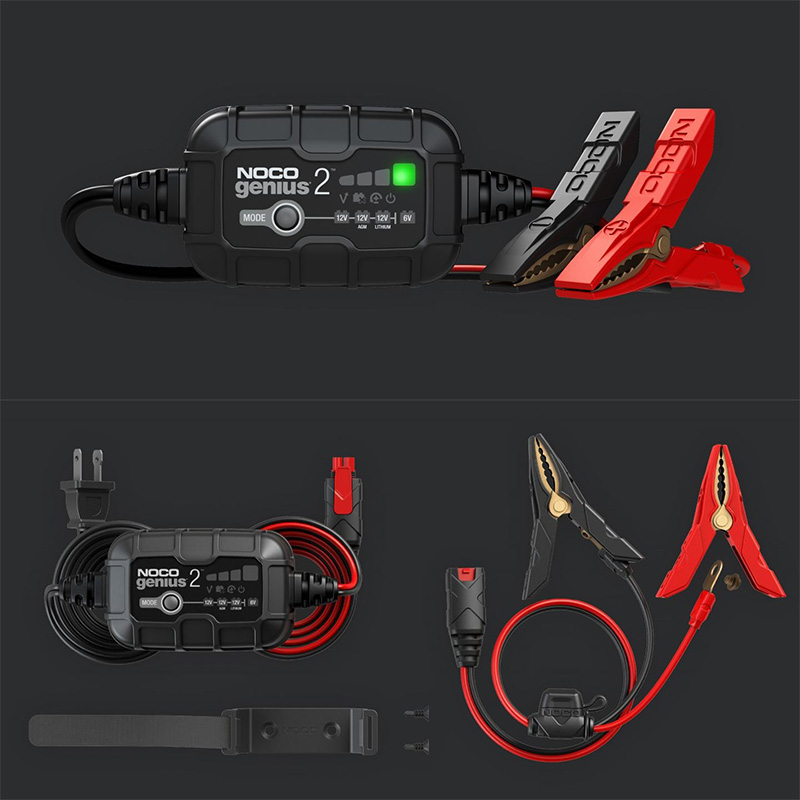

What’s In The Box

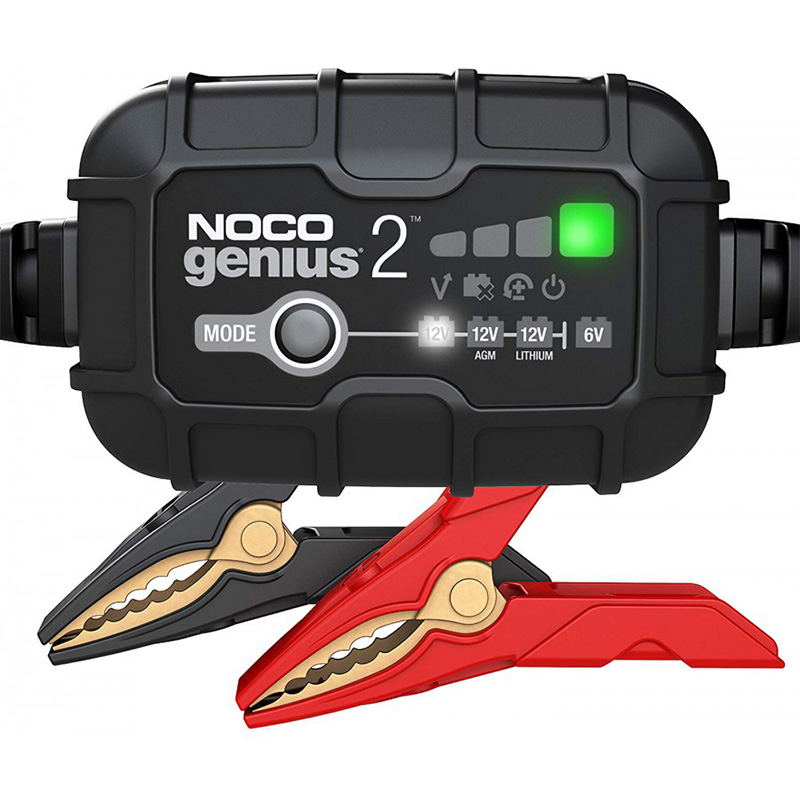

GENIUS2 Battery Charger w/ Interchangeable Connector
Clamps w/ Integrated Eyelets (M6)
Mounting Bracket w/ Strap
(2) Self-Tapping Screws
User Guide & Warranty Information
Operating Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -20° to 40° C (-4° to 104° F)
Storage Temperature: -30° to 60° C (-22° to 140° F)
Relative Humidity: 0 to 95% Non-Condensing
Charging
Current: 2 Amps DC
Voltages: 6V, 12V
Chemistry: Lead-Acid and Lithium
Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
Capacity Range: Up to 40 Amp-Hours
Maintenance: All Battery Sizes
Power
Consumption: 30 Watts (Max)
Efficiency: 87% (120VAC / 230VAC)
Protection
IP Rating: IP65
Safety
Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes
Product Size
Height: 94mm (3.7 Inches)
Width: 61mm (2.4 Inches)
Depth: 43mm (1.7 Inches)
Weight: 0.5kg (1.1 Pounds)
Cord Management
DC Cable + Clamp Length: 195cm (77 Inches)
DC Cable Size: 18 AWG
DC Fuse Size: 4 AMP MINI ® Blade Fuse
AC Cable Length: 182cm (71.7 Inches)
AC Cable Size: 18 AWG
Oil, gas, grease, water, chemical, UV, abrasion resistant
Limited Warranty
3-Year Limited Warranty
