Description
TECH SPECS

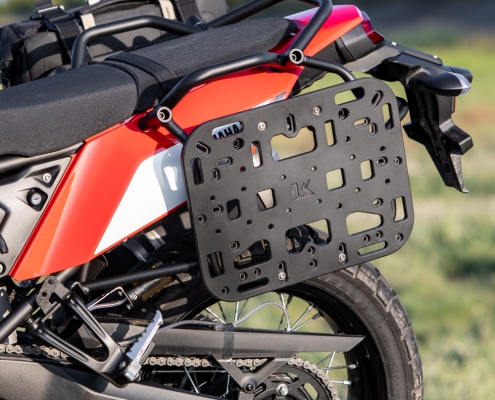

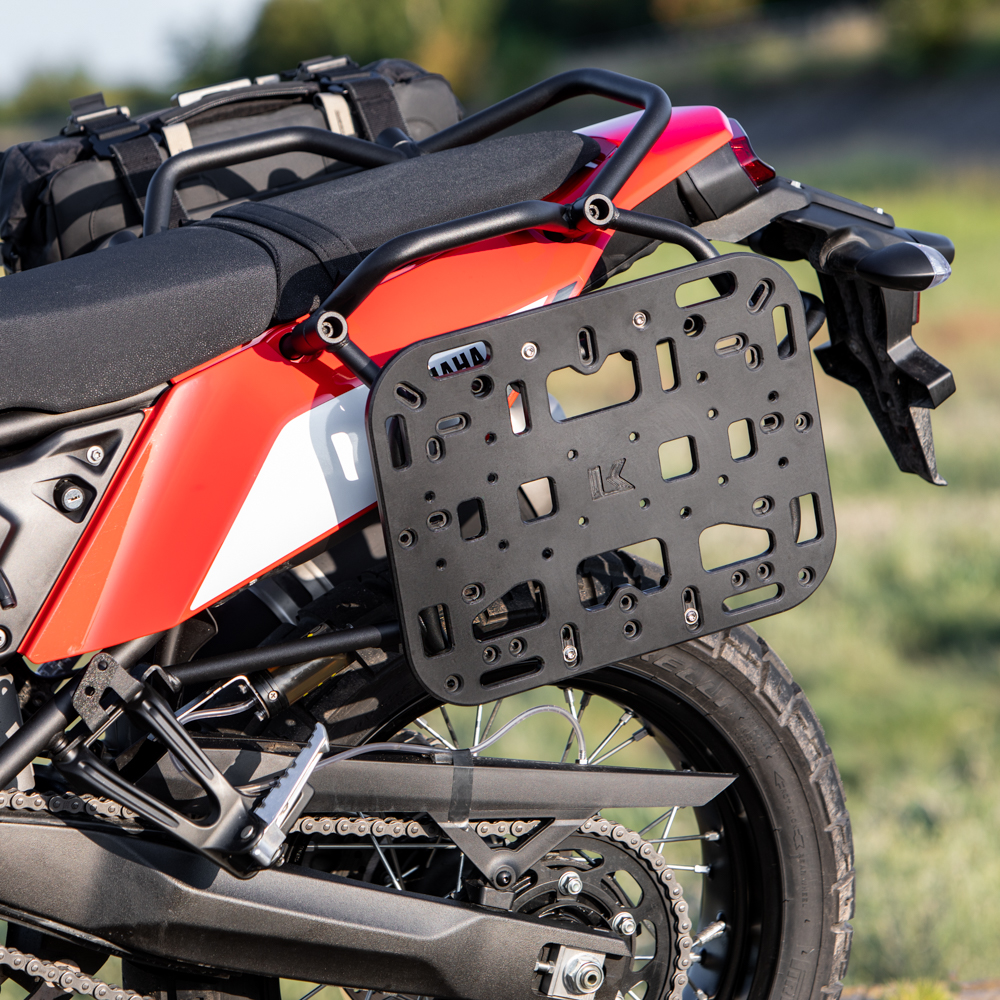

THE PLATFORM is engineered from virtually indestructible Nylon 6, lighter than alloy and without fatigue issues. It is machined with optional attachment points to mount a single OS-Soft Pannier or an OS-12 ADV pack together with Rotopax fuel/water containers.

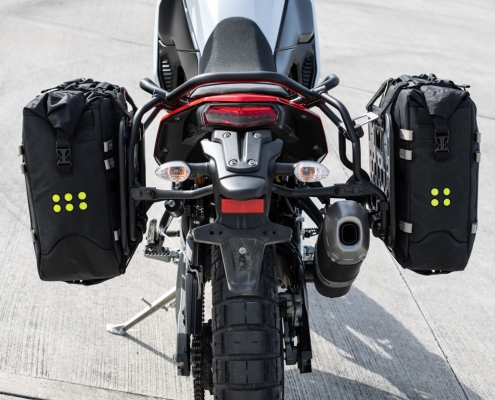

YAMAHA/GIVI pannier frames are designed to mount aluminium cases and do not have a standard flat profile on the exhaust side. This special edition OS-PLATFORM includes a stainless steel adaptor to flatten the profile and provide a strong mounting location for the OS-PLATFORM.

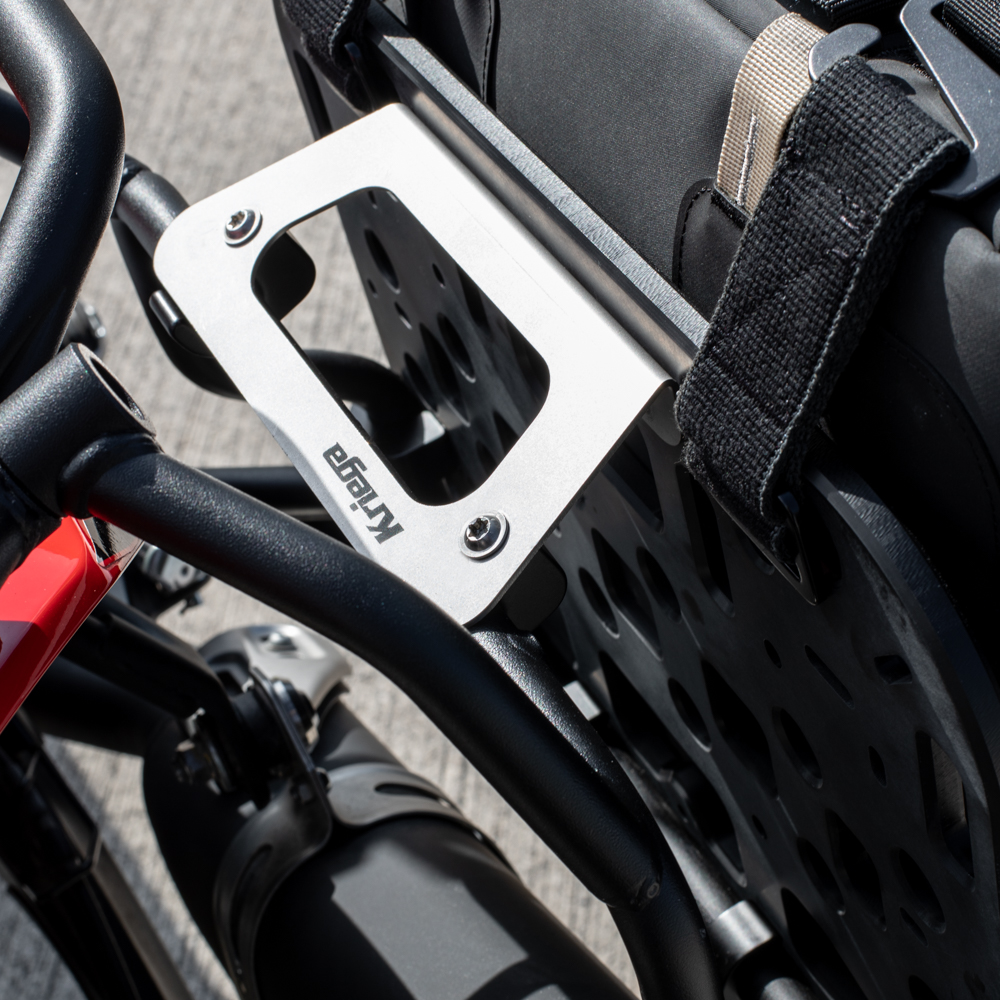

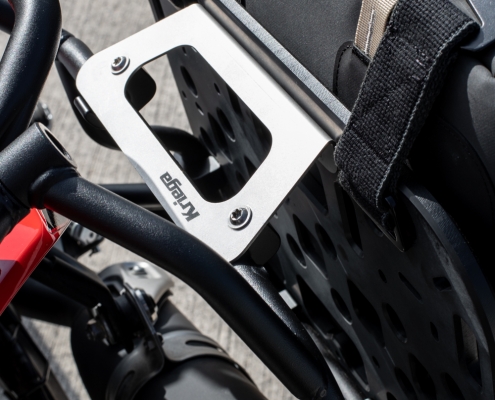

THE ADAPTOR is laser cut stainless steel which fixes to the OS-PLATFORM on the exhaust side with 3 bolts and Nyloc nuts. It clamps to the top of the YAMAHA frame using 2 of the aircraft grade aluminium clamps. The remaining 4 clamps fix the OS-PLATFORM directly to the frame, giving a very strong and stable base to add an OS-Pannier, OS-Adventure Packs or Rotopax water contains.
The YAMAHA pannier frame profile on the opposite side to the exhaust is flat and therefore a standard OS-PLATFORM 16mm – 20mm tube fit, will easily mount to this side.
PLATFORM DIMENSIONS
390(w) x 300(h) x 10(d)mm
15.3″(w) x 11.8″(h) x 0.3″(d)
OS-22 DIMENSIONS
400(h) x 420(w) x 150(d) mm
15.7”(h) x 16.5”(w) x 5.9”(d)
OS-32 DIMENSIONS
400(h) x 420(w) x 190(d) mm
15.7(h) x 16.5(w) x 7.5(d) ins.
TOTAL COMBO WEIGHT
7.85 kg / 17.3 lb
TOTAL VOLUME
54 Litres / 3300 cu in
