Description
D2 Kit Features
- Comprehensive 9 piece LED light kit specifically designed for powersports applications
- High-Intensity Series Cree LEDs outputting 2190 lumens per kit

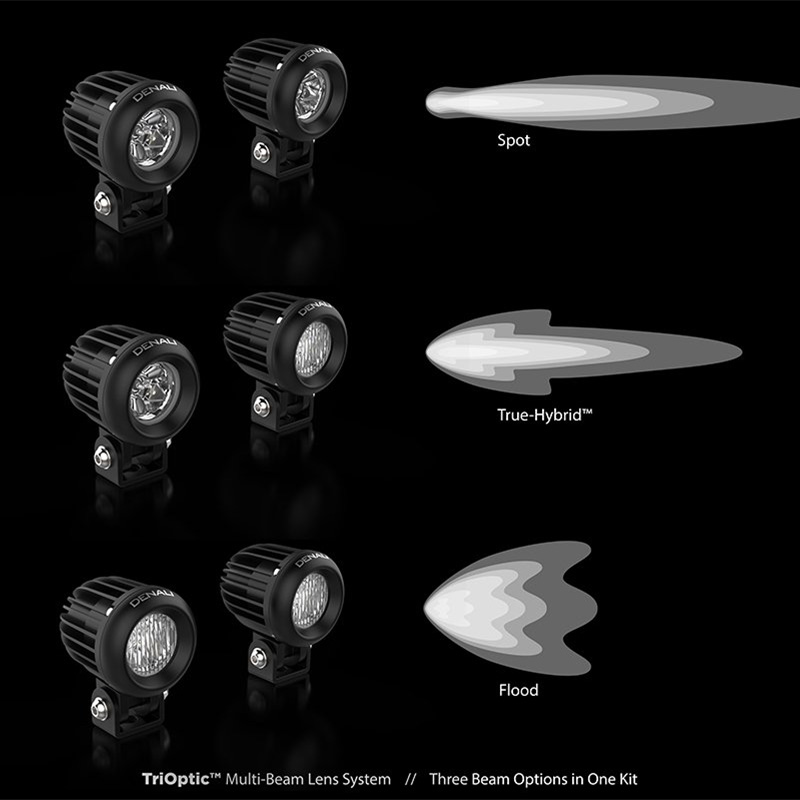

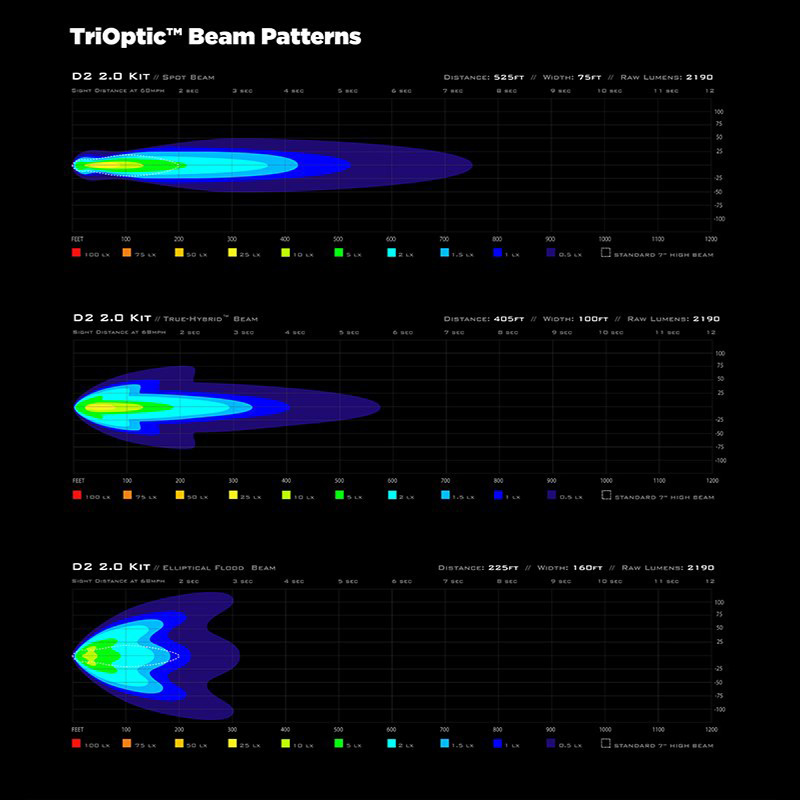

- TriOptic™ Multi-Beam Lens System includes a Spot, Flood and Hybrid beam option in one kit
- DataDim™ equipped light pods and harness allow plug-n-play connection to the DataDim™ dimming controller (SKU DNL.WHS.11000)
- Premium powersports harness with waterproof switch and handlebar switch mount included
- DrySeal™ Submersible Waterproof light and switch housings can withstand the most extreme environments
- Impact PC™ Polycarbonate bezels won’t crack, fade or corrode like traditional aluminum bezels
- LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating

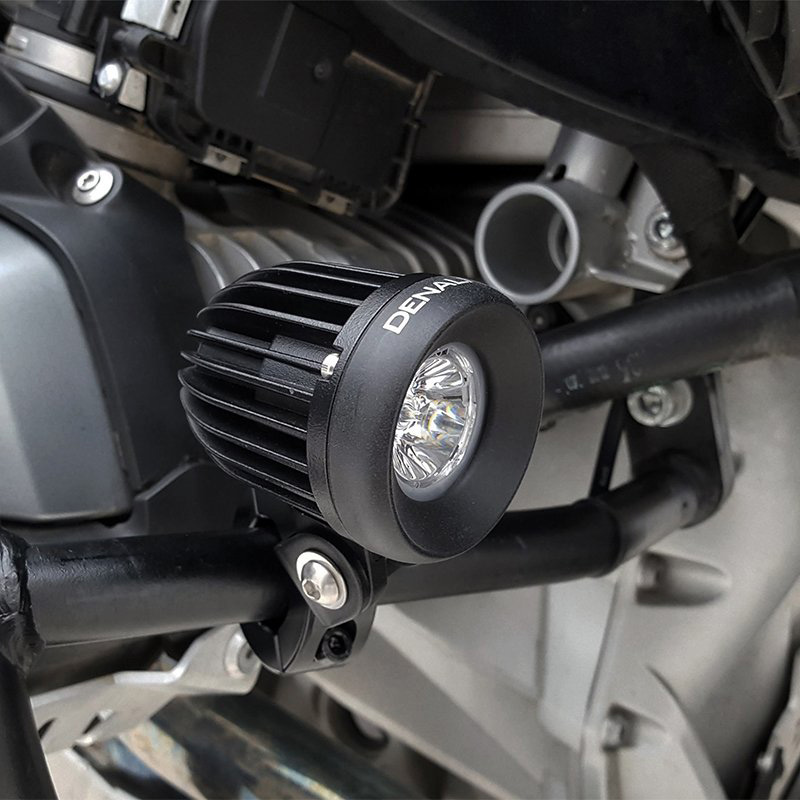

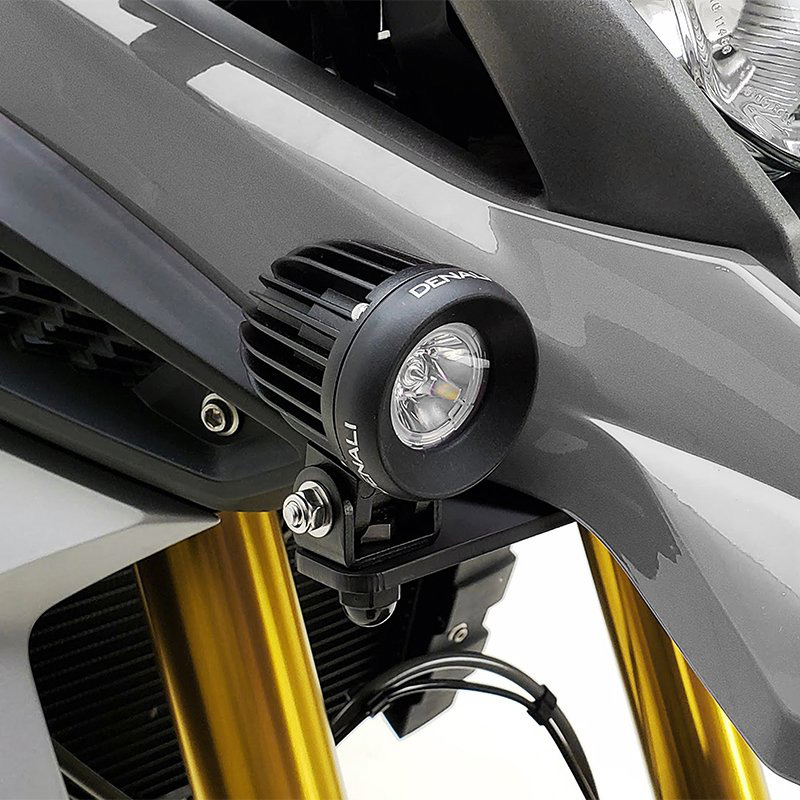

- Low profile mounting bracket with stainless steel hardware included
- Additional pair of E-Mark Approved flood lenses included
- Amber lenses available (sold separately) DNL.D2.10100
D2 Kit Specs
- LED’s: (2x) 10 Watt Cree XPL HI
- Power Draw: 1.6 Amps
- Beam Distance (Spot): 160 meters
- Beam Width (Spot): 23 meters
- Raw Lumens: 2190
- Intensity: Single Intensity Harness
- DataDim™ Compatible: Yes
- Operating Voltage: 12 VDC
- Pod Size: 2.2” Round x 2.4” Deep (each)
- Pod Weight: 0.28 kgs (each)
- IP67 Waterproof & Submersible
- E Mark Approved Flood Lenses

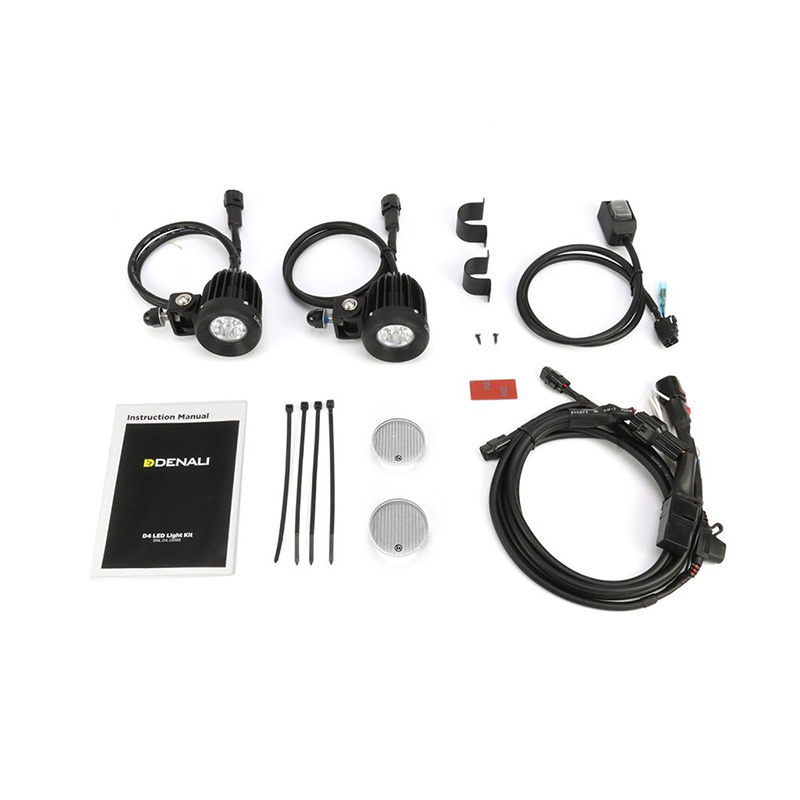

D2 Kit – What’s In The Box?

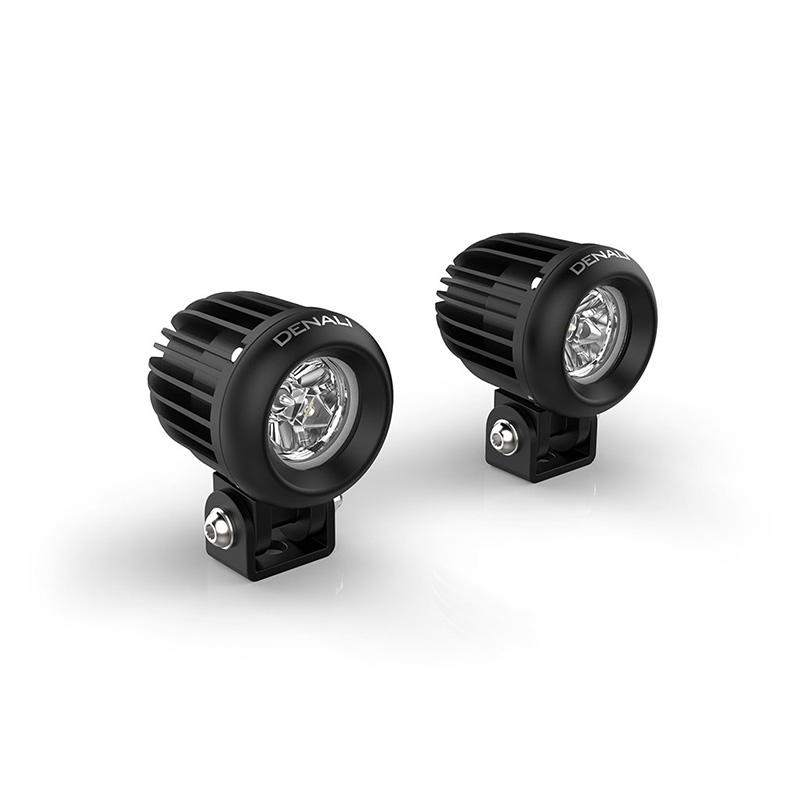

- (2x) LED Light Pods
- (2x) Spot Lenses (Installed)
- (2x) E-Mark Approved Elliptical Flood Lenses (Included)
- (1x) HotSwap™ Single Intensity Wiring Harness
- (1x) DrySeal Waterproof Illuminated Switch
- (1x) 7/8 inch Handlebar Switch Mount
- (1x) 1 inch Handlebar Switch Mount
- (2x) Hinge Mounts with M8 Stainless Steel Hardware
- (4x) Zip Ties
- (1x) Adhesive Mounting Square
